Nakayama Co.,Ltd.
Nakayama Ejection Rubber
Manufacturer: Nakayama Co.,Ltd.
- Slicing, cutting, double-sided tape process are possible. We can offer you other thickness which is not listed below.
- Rubber Sample Book are available. You can see and touch the actual products with the sample book. Please feel free to contact us when you need it.

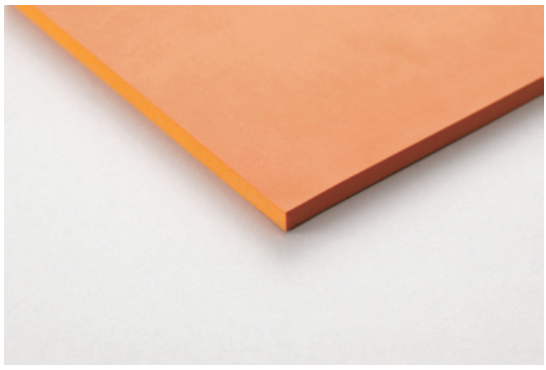

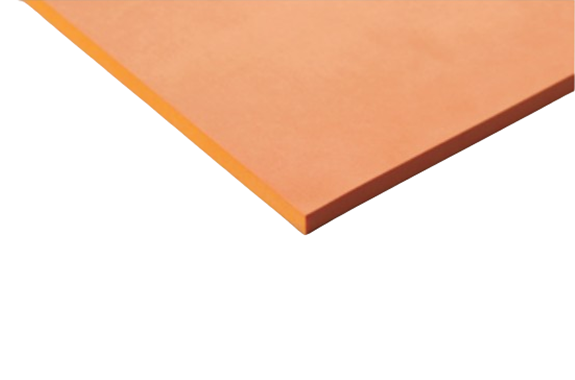

MIKAN40 – ORANGE RUBBER
EVA material and the most popular.
It is widely used such as for paper, corrugated board or plastic.
| ITEM | THICKNESS (mm) | HARDNESS(HS) ASKER C or A | SIZE (mm) | MOQ | CODE |
|---|---|---|---|---|---|
| MIKAN40 ORANGE RUBBER | 2 | 40 ASKER C | 600X900 | 1(pc) | 603020 |
| 3 | 40 ASKER C | 600X900 | 1(pc) | 603030 | |
| 4 | 40 ASKER C | 600X900 | 1(pc) | 603040 | |
| 5 | 40 ASKER C | 600X900 | 1(pc) | 603050 | |
| 6 | 40 ASKER C | 600X900 | 1(pc) | 603060 | |
| 7 | 40 ASKER C | 600X900 | 1(pc) | 603070 | |
| 8 | 40 ASKER C | 600X900 | 1(pc) | 603080 | |
| 9 | 40 ASKER C | 600X900 | 1(pc) | 603090 | |
| 10 | 40 ASKER C | 600X900 | 1(pc) | 603100 | |
| 12 | 40 ASKER C | 600X900 | 1(pc) | 603120 |

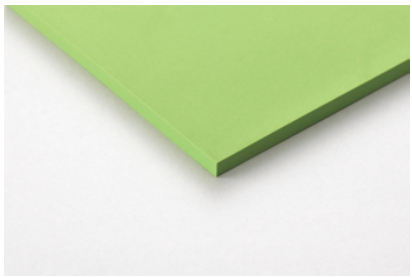

WAKABA
EVA material. It has got high resiliency.
We can offer you WAKABA with double-sided tape and wavy cut, which is WAKABA-S.
| ITEM | THICKNESS (mm) | HARDNESS(HS) ASKER C or A | SIZE (mm) | MOQ | CODE |
|---|---|---|---|---|---|
| WAKABA | 7 | 45 ASKER C | 550X1100 | 1(pc) | 601511 |
| 8 | 45 ASKER C | 550X1100 | 1(pc) | 601512 | |
| 10 | 45 ASKER C | 550X1100 | 1(pc) | 601513 | |
| WAKABA-S wavy shape, with double-sided tape Sheet size:：280X280 | 7 | 45 ASKER C | 7WX60L | 10(pcs) | 601531 |
| 8 | 45 ASKER C | 7WX60L | 10 (pcs) | 601532 | |
| 10 | 45 ASKER C | 10WX30L | 10 (pcs) | 601533 |

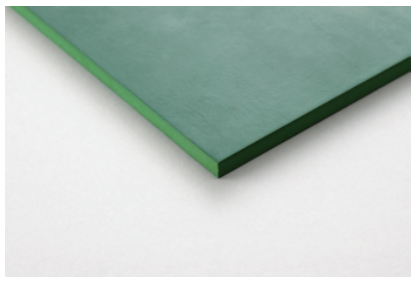

GREEN60 – GREEN RUBBER
EVA material. It is harder than WAKABA and has got high resiliency.
We can offer you GREEN RUBBER with double-sided tape and wavy cut, which is GREEN60-S.
| ITEM | THICKNESS (mm) | HARDNESS(HS) ASKER Cor A | SIZE (mm) | MOQ | CODE |
|---|---|---|---|---|---|
| GREEN60 GREEN RUBBER | 7 | 60 ASKER C | 780X1000 | 1(pc) | 604070 |
| 8 | 60 ASKER C | 780X1000 | 1(pc) | 604080 | |
| GREEN60-S wavy shape, with double-sided tape Sheet size :250×390 | 7 | 60 ASKER C | 7WX60L | 10(pcs) | 604270 |

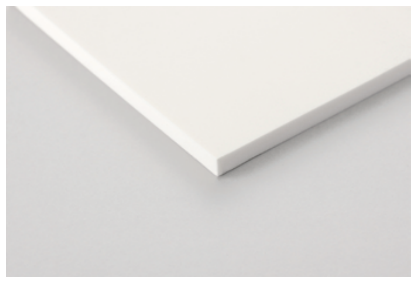

WHITE RUBBER
Natural rubber and the softest. Low hardness hardly make a mark on the products.
| ITEM | THICKNESS (mm) | HARDNESS(HS) ASKER C or A | SIZE (mm) | MOQ | CODE |
|---|---|---|---|---|---|
| WHITE RUBBER | 8 | 20 ASKER C | 1 000X1000 | 1(pc) | 600301 |

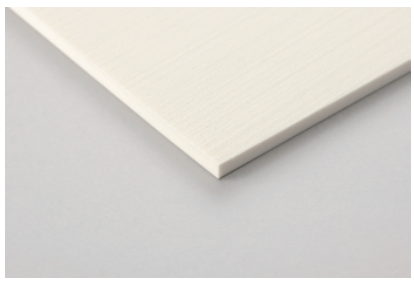

PORT RUBBER
Durable hard rubber. Surface is mesh and suiatble for high speed die cutting.
NEO SLOT is slot rubber version of PORT RUBBER.
| ITEM | THICKNESS (mm) | HARDNESS(HS) ASKER Cor A | SIZE (mm) | MOQ | CODE |
|---|---|---|---|---|---|
| PORT RUBBER | 1 | 70 ASKER C | 520X540 | 1(pc) | 600786 |
| 1.5 | 70 ASKER C | 520×540 | 1(pc) | 600785 | |
| 2 | 70 ASKER C | 520X540 | 1(pc) | 600784 | |
| 2.5 | 70 ASKER C | 520X540 | 1(pc) | 600783 | |
| 3 | 70 ASKER C | 520X540 | 1(pc) | 600782 | |
| 3.5 | 70 ASKER C | 520X540 | 1(pc) | 600781 | |
| 4 | 70 ASKER C | 520X540 | 1(pc) | 600780 | |
| 4.5 | 70 ASKER C | 520X540 | 1(pc) | 600779 | |
| 5 | 70 ASKER C | 520X540 | 1(pc) | 600778 | |
| 5.5 | 70 ASKER C | 520X540 | 1(pc) | 600777 | |
| 6 | 70 ASKER C | 520X540 | 1(pc) | 600776 | |
| 6.5 | 70 ASKER C | 520X540 | 1(pc) | 600775 | |
| 7 | 70 ASKER C | 520X540 | 1(pc) | 600774 | |
| 9.5 | 70 ASKER C | 520X540 | 1(pc) | 600773 |

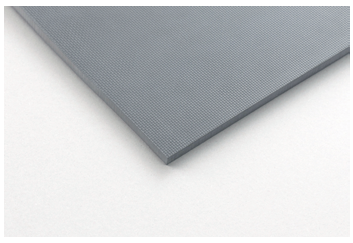

GRAY MESH
Surface is mesh and suiatble for high speed die cutting.
| ITEM | THICKNESS (mm) | HARDNESS(HS) ASKER Cor A | SIZE (mm) | MOQ | CODE |
|---|---|---|---|---|---|
| GRAY MESH | 7 | 60 ASKER C | 310×310 | 10 枚(pcs) | 600283 |
※1 box= 10 sheets
