Nakayama Feed Through Punches
Manufacturer: Nakayama Co.,Ltd.

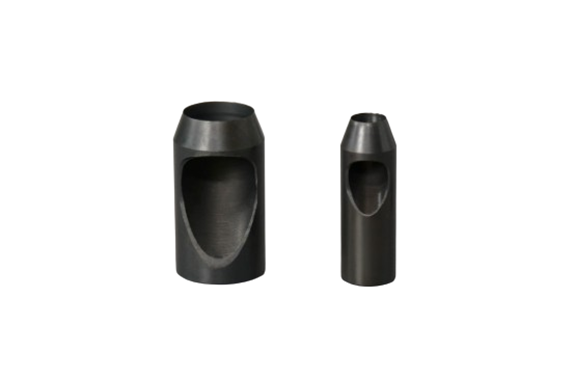

FEED THROUGH PUNCHES
Inside of the punch gets wider and the wastes goes the bottom. It is suitable for cutting thick products.
| HEIGHT (mm) | EDGE DIAMETER (ϕmm) | INTERVAL (mm) | REMARKS |
|---|---|---|---|
| 23.6 | 1.0〜15.0 | 0.5 | Outer Diameter = Edge Diameter + 3.0mm |
| 16.0〜20.0 | 1.0 | Outer Diameter = Edge Diameter + 3.0mm | |
| 21.0〜25.0 | 1.0 | Outer Diameter = Edge Diameter + 4.0mm | |
| 26.0〜30.0 | 1.0 | Outer Diameter = Edge Diameter + 4.0mm | |
| 32.0 | 3.0〜20.0 | 1.0 | Outer Diameter = Edge Diameter + 3.0mm |
