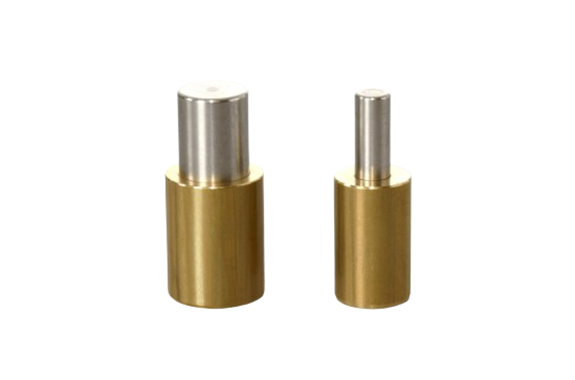

Nakayama K/A Series Guide Pins
Manufacturer: Nakayama Co.,Ltd.
Guide Pins
It is used for alingning the cutting die with cut materials as the first step.

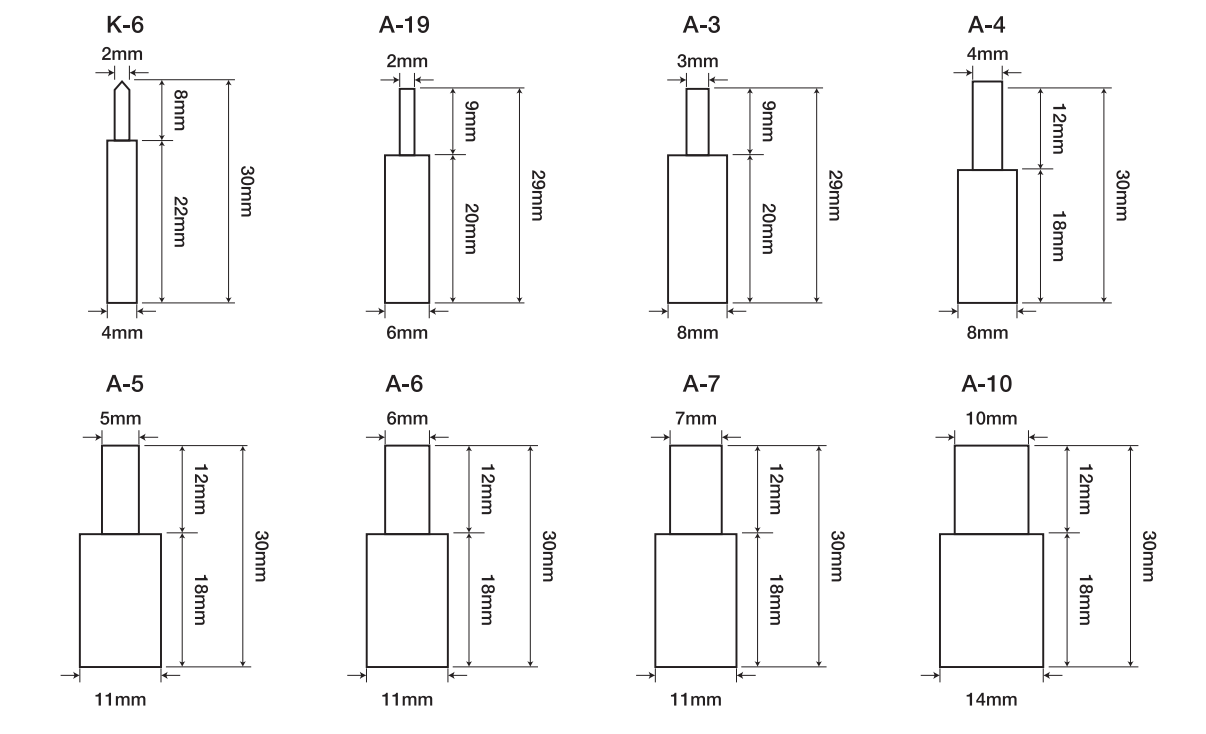

| ITEM | A EDGE DIAMETER (ϕmm) | BXCXD STANDARD (mm) |
|---|---|---|
| K-6 | 0.5 X 2.0 | 4.0X22.0X30.0H |
| A-19 | 2.0 | 6.0X20.0X29.0H |
| A-3 | 3.0 | 8.0X20.0X29.0H |
| A-4 | 4.0 | 8.0X18.0 X30.0H |
| A-5 | 5.0 | 11.0X18.0X30.0H |
| A-6 | 6.0 | 11.0X18.0X30.0H |
| A-7 | 7.0 | 11.0X18.0X30.0H |
| A-1 0 | 10.0 | 14.0X18.0X30.0H |
