Nakayama Co.,Ltd.
Nakayama NCEW Series Wave Rules
Manufacturer: Nakayama Co.,Ltd.
Model: NCEW Series

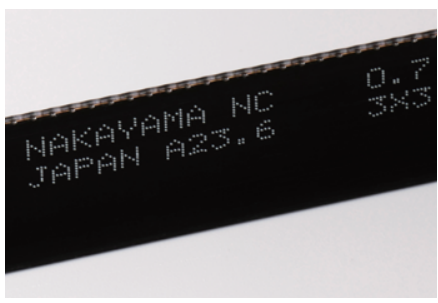

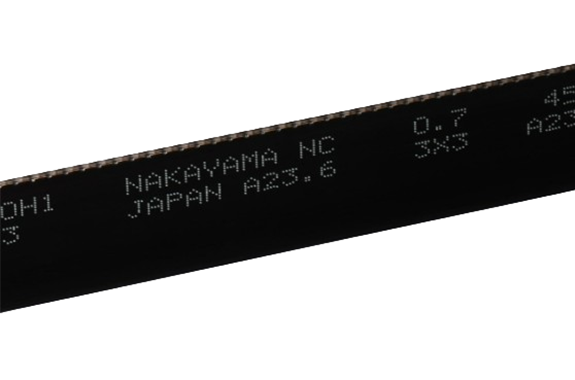

NC EDGE WAVE RULES
The edge is wave shape.
The purpose is to prevent injuries when handling cardboards.
| ITEM | THICKNESS (mm) | HEIGHT (mm) | HARDNESS (HS) | SIZE | COLOR | EDGE ANGLE | LENGTH (mm) | CODE | |
|---|---|---|---|---|---|---|---|---|---|
| BODY | EDGE | ||||||||
| NCEW07 | 0.7 | 23.5 | 45 | 72 | 2X2 | Blue | 43° | 909 | 338205 |
| 0.7 | 23.5 | 45 | 72 | 3X3 | Blue | 43° | 909 | 338206 | |
| 0.7 | 23.6 | 45 | 72 | 2X2 | Blue | 43° | 909 | 338215 | |
| 0.7 | 23.6 | 45 | 72 | 3X3 | Blue | 43° | 909 | 338216 | |
| NCEW09 | 0.9 | 23.5 | 45 | 72 | 3X3 | Blue | 41° | 909 | 338226 |
| 0.9 | 23.6 | 45 | 72 | 2X2 | Blue | 41° | 909 | 338235 | |
| 0.9 | 23.6 | 45 | 72 | 3X3 | Blue | 41° | 909 | 338236 | |
