Nakayama Co.,Ltd.

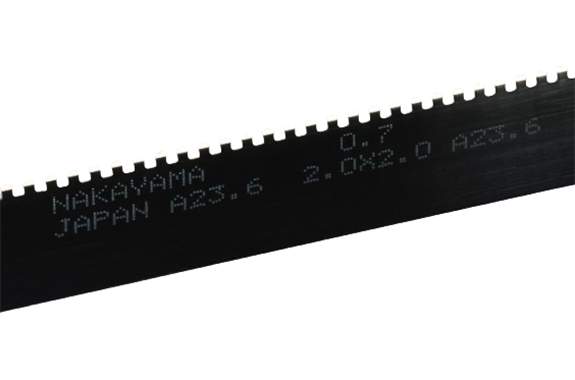

Nakayama PR Series Perforating Rules (Center Bevel)
Manufacturer: Nakayama Co.,Ltd.
Model: PR Series
Perforating Rules (Center Bevel)
This is a series of cutting rules with alternating tooth and gaps.
It is used for tear lines and folding.

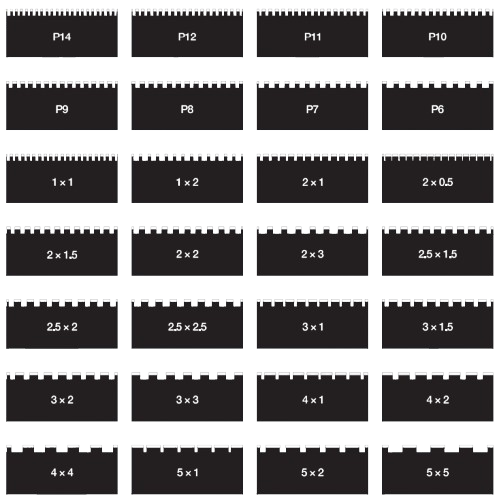

PERFORATING RULES (TOOTH CONFIGURATIONS)
Perforation in the photos are actual size.
MICRO PERFORATING RULES (CENTER BEVEL)
| ITEM | TOOTH | GAP | THICKNESS (mm) | HEIGHT (mm) | HARDNESS(HS) | COLOR | EDGE ANGLE | CODE | ||
|---|---|---|---|---|---|---|---|---|---|---|
| BODY | EDGE | |||||||||
| MCPR07 | P72 | 0.20 | 0.15 | 0.7 | 23.6 | 50 | 75 | Brown | 43° | 367070 |
| P50 | 0.35 | 0.15 | 0.7 | 23.6 | 50 | 75 | Brown | 43° | 367060 | |
| P43 | 0.35 | 0.23 | 0.7 | 23.6 | 50 | 75 | Brown | 43° | 367065 | |
※The length of the standard stock item is 520mm.
PERFORATING RULES (CENTER BEVEL)
| ITEM | TOOTH | GAP | THICKNESS (mm) | HEIGHT (mm) | HARDNESS (HS) BODY | COLOR | EDGE ANGLE | CODE | |
|---|---|---|---|---|---|---|---|---|---|
| PR07 (23.1) | P14 | 0.8 | 1.0 | 0.7 | 23.1 | 60 | Brown | 43° | 330600 |
| P10 | 1.3 | 1.2 | 0.7 | 23.1 | 60 | Brown | 43° | 330603 | |
| P8 | 1.7 | 1.5 | 0.7 | 23.1 | 60 | Brown | 43° | 330605 | |
| P7 | 1.6 | 2.0 | 0.7 | 23.1 | 60 | Brown | 43° | 330606 | |
| P6 | 1.7 | 2.5 | 0.7 | 23.1 | 60 | Brown | 43° | 330607 | |
| 3X3 | 3.0 | 3.0 | 0.7 | 23.1 | 60 | Brown | 43° | 330660 | |
| PR07(23.4) | P8 | 1.7 | 1.5 | 0.7 | 23.4 | 55 | Blue | 43° | 330405 |
| PR07 (23.5) | P14 | 0.8 | 1.0 | 0.7 | 23.5 | 55 | Blue | 43° | 330000 |
| P12 | 1.1 | 1.0 | 0.7 | 23.5 | 55 | Blue | 43° | 330001 | |
| P11 | 1.3 | 1.0 | 0.7 | 23.5 | 55 | Blue | 43° | 330002 | |
| P10 | 1.3 | 1.2 | 0.7 | 23.5 | 55 | Blue | 43° | 330003 | |
| P9 | 1.6 | 1.2 | 0.7 | 23.5 | 55 | Blue | 43° | 330004 | |
| P8 | 1.7 | 1.5 | 0.7 | 23.5 | 55 | Blue | 43° | 330005 | |
| P7 | 1.6 | 2.0 | 0.7 | 23.5 | 55 | Blue | 43° | 330006 | |
| P6 | 1.7 | 2.5 | 0.7 | 23.5 | 55 | Blue | 43″ | 330007 | |
| 1X1 | 1.0 | 1.0 | 0.7 | 23.5 | 55 | Blue | 43° | 330020 | |
| 2×1 | 2.0 | 1.0 | 0.7 | 23.5 | 55 | Blue | 43° | 330021 | |
| 3X1 | 3.0 | 1.0 | 0.7 | 23.5 | 55 | Blue | 43° | 330022 | |
| 4X1 | 4.0 | 1.0 | 0.7 | 23.5 | 55 | Blue | 43° | 330023 | |
| 5×1 | 5.0 | 1.0 | 0.7 | 23.5 | 55 | Blue | 43° | 330024 | |
| 2X1.5 | 2.0 | 1.5 | 0.7 | 23.5 | 55 | Blue | 43° | 330030 | |
| 2.5×1.5 | 2.5 | 1.5 | 0.7 | 23.5 | 55 | Blue | 43° | 330031 | |
| 3X1.5 | 3.0 | 1.5 | 0.7 | 23.5 | 55 | Blue | 43° | 330032 | |
| 1X2 | 1.0 | 2.0 | 0.7 | 23.5 | 55 | Blue | 43° | 330040 | |
| 2X2 | 2.0 | 2.0 | 0.7 | 23.5 | 55 | Blue | 43° | 330041 | |
| 3×2 | 3.0 | 2.0 | 0.7 | 23.5 | 55 | Blue | 43° | 330043 | |
| 5X2 | 5.0 | 2.0 | 0.7 | 23.5 | 55 | Blue | 43° | 330045 | |
| 2.5 x 2.5 | 2.5 | 2.5 | 0.7 | 23.5 | 55 | Blue | 43° | 330050 | |
| 2X3 | 2.0 | 3.0 | 0.7 | 23.5 | 55 | Blue | 43° | 330060 | |
| ITEM | TOOTH | GAP | THICKNESS (mm) | HEIGHT (mm) | HARDNESS (HS) BODY | COLOR | EDGE ANGLE | CODE | |
|---|---|---|---|---|---|---|---|---|---|
| PR07 (23.5) | 3X3 | 3.0 | 3.0 | 0.7 | 23.5 | 55 | Blue | 43° | 330061 |
| 5×5 | 5.0 | 5.0 | 0.7 | 23.5 | 55 | Blue | 43° | 330080 | |
| PR07 (23.6) | P14 | 0.8 | 1.0 | 0.7 | 23.6 | 55 | Blue | 43° | 330100 |
| P12 | 1.1 | 1.0 | 0.7 | 23.6 | 55 | Blue | 43° | 330101 | |
| P11 | 1.3 | 1.0 | 0.7 | 23.6 | 55 | Blue | 43° | 330102 | |
| P10 | 1.3 | 1.2 | 0.7 | 23.6 | 55 | Blue | 43° | 330103 | |
| P9 | 1.6 | 1.2 | 0.7 | 23.6 | 55 | Blue | 43° | 330104 | |
| P8 | 1.7 | 1.5 | 0.7 | 23.6 | 55 | Blue | 43° | 330105 | |
| P7 | 1.6 | 2.0 | 0.7 | 23.6 | 55 | Blue | 43° | 330106 | |
| P6 | 1.7 | 2.5 | 0.7 | 23.6 | 55 | Blue | 43° | 330107 | |
| 2X0.5 | 2.0 | 0.5 | 0.7 | 23.6 | 70 | Brown | 43° | 330111 | |
| 1X1 | 1.0 | 1.0 | 0.7 | 23.6 | 55 | Blue | 43° | 330120 | |
| 2X1 | 2.0 | 1.0 | 0.7 | 23.6 | 55 | Blue | 43° | 330121 | |
| 3X1 | 3.0 | 1.0 | 0.7 | 23.6 | 55 | Blue | 43° | 330122 | |
| 4X1 | 4.0 | 1.0 | 0.7 | 23.6 | 55 | Blue | 43° | 330123 | |
| 5X1 | 5.0 | 1.0 | 0.7 | 23.6 | 55 | Blue | 43° | 330124 | |
| 2X1.5 | 2.0 | 1.5 | 0.7 | 23.6 | 55 | Blue | 43° | 330130 | |
| 2.5X1.5 | 2.5 | 1.5 | 0.7 | 23.6 | 55 | Blue | 43° | 330131 | |
| 3X1.5 | 3.0 | 1.5 | 0.7 | 23.6 | 55 | Blue | 43° | 330132 | |
| 1X2 | 1.0 | 2.0 | 0.7 | 23.6 | 55 | Blue | 43° | 330140 | |
| 2X2 | 2.0 | 2.0 | 0.7 | 23.6 | 55 | Blue | 43° | 330141 | |
| 2.5X2 | 2.5 | 2.0 | 0.7 | 23.6 | 55 | Blue | 43° | 330142 | |
| 3X2 | 3.0 | 2.0 | 0.7 | 23.6 | 55 | Blue | 43° | 330143 | |
| 4X2 | 4.0 | 2.0 | 0.7 | 23.6 | 55 | Blue | 43° | 330145 | |
| 5X2 | 5.0 | 2.0 | 0.7 | 23.6 | 55 | Blue | 43° | 330144 | |
| 2.5X2.5 | 2.5 | 2.5 | 0.7 | 23.6 | 55 | Blue | 43° | 330150 | |
| 2X3 | 2.0 | 3.0 | 0.7 | 23.6 | 55 | Blue | 43° | 330160 | |
| 3X3 | 3.0 | 3.0 | 0.7 | 23.6 | 55 | Blue | 43° | 330161 | |
| 4X4 | 4.0 | 4.0 | 0.7 | 23.6 | 55 | Blue | 43° | 330170 | |
| 5X5 | 5.0 | 5.0 | 0.7 | 23.6 | 55 | Blue | 43° | 330180 | |
| ITEM | TOOTH | GAP | THICKNESS (mm) | HEIGHT (mm) | HARDNESS(HS) BODY | COLOR | EDGE ANGLE | CODE | |
|---|---|---|---|---|---|---|---|---|---|
| PR09 (23.1) | P7 | 1.6 | 2.0 | 0.9 | 23.1 | 60 | Brown | 41° | 332506 |
| 3X3 | 3.0 | 3.0 | 0.9 | 23.1 | 60 | Brown | 41° | 332560 | |
| 4X4 | 4.0 | 4.0 | 0.9 | 23.1 | 60 | Brown | 41° | 332570 | |
| PR09 (23.5) | 3X3 | 3.0 | 3.0 | 0.9 | 23.5 | 50 | Blue | 41° | 332060 |
| 5X5 | 5.0 | 5.0 | 0.9 | 23.5 | 50 | Blue | 41° | 332080 | |
| PR09 (23.6) | P7 | 1.6 | 2.0 | 0.9 | 23.6 | 50 | Blue | 41° | 332106 |
| P6 | 1.7 | 2.5 | 0.9 | 23.6 | 50 | Blue | 41° | 332107 | |
| 2X2 | 2.0 | 2.0 | 0.9 | 23.6 | 50 | Blue | 41° | 332140 | |
| 3X3 | 3.0 | 3.0 | 0.9 | 23.6 | 50 | Blue | 41° | 332160 | |
| 4X4 | 4.0 | 4.0 | 0.9 | 23.6 | 50 | Blue | 41° | 332170 | |
| 5X5 | 5.0 | 5.0 | 0.9 | 23.6 | 50 | Blue | 41° | 332180 | |
※The length of the standard stock item is 909mm.
