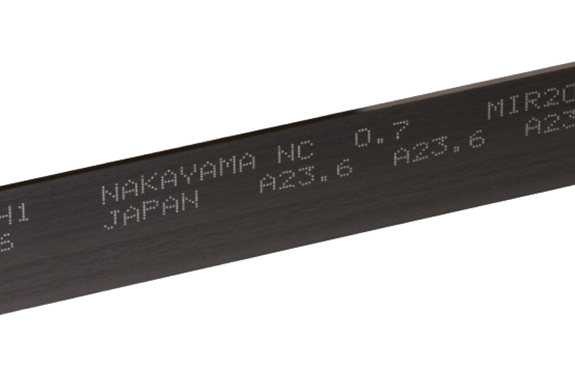

Nakayama Special Coated Rules

Manufacturer: Nakayama Co.,Ltd.

NON-ADHESION COATED CUTTING RULES

Cutting rules with coatings that prevent glue from sticking to edges. Two types of coatings are available depending on the application. Please refer to the comparison chart below for details.
Coating can be applied to other than just cutting rules. Punches, Flexible dies etc.


FEATURES	Anti-adhesive coating is possible without losing the sharpness of the cutting edge. Coil types are also available. Coating can be applied to other than just cutting rules. Punches, Flexible dies etc.	Fluorine coating is applied after the shot blasting process to enhance adhesion to the cutting edge.
ADVANTAGES	Anti-adhesive effects Lower edge friction Improving productivity	Anti-adhesive effects Hard-to-peel coating
DISADVANTAGES	Coating adhesion of silky is not as good as fluoro resin.	The cutting edge is treated with shot blasting, which reduces the sharpness of the blade. Compared to Silky Coating series, less variety in stock.

Difference between Silky Blade and Fluorine Blade

The biggest difference is the method and type of coating. The types of coatings are silicone and fluoro resin, both of which are excellent non-adhesive coatings.
Regarding coating methods, Silky coating can be coated without shot blasting, so the sharpness of the cutting edge is not affected.
Fluoro resin coating is surface treated to provide excellent adhesion between the blade and the coating. (Excellent adhesion means hard-to-peel coating.)

SILKY COATING (Silicone)

Silicone-based coating. Clear coating and non-adhesive effects with sharp cutting edge.

Silky Coating Coil Stock (STOCK ITEMS OF COIL)

COIL WINDING	ITEM	THICKNESS (mm)	HEIGHT (mm)	HARDNESS(HS)		COLOR	EDGE ANGLE	CODE
COIL WINDING	ITEM	THICKNESS (mm)	HEIGHT (mm)	BODY	EDGE	COLOR	EDGE ANGLE	CODE
B470	ST-ACE80MIR-SC	0.7	23.6	45	75	Silver	43°	369958
	MIR20-SC	0.7	23.6	45	80	Silver	43°	369939
	ST-MIR23-SC	0.7	23.6	45	80	Silver	30°	369948
	MIR-CI23-SC	0.7	23.6	50	75	Silver	30°	369955

Silky Coating Stock (STOCK ITEMS OF COIL)

ITEM	THICKNESS(mm)	HEIGHT(mm)	HARDNESS(HS)		COLOR	EDGE ANGLE	LENGTH(mm)	CODE
ITEM	THICKNESS(mm)	HEIGHT(mm)	BODY	EDGE	COLOR	EDGE ANGLE	LENGTH(mm)	CODE
SLA080-SC	0.45	8.0	40	80	Silver	49°	909	369917
ST-MIR080-SC	0.45	8.0	40	80	Silver	49°	909	369916
SLA120-SC	0.45	12.0	40	80	Silver	49°	909	369961
SH D-MIR 18-SC	0.45	18.5	72	88	Brown	28°	1220	369971
STA04-MIR-SC	0.45	23.6	50	72	Blue	30°	1500	369915
NCA07-SC	0.7	23.5	45	72	Blue	43°	909	369909
NCA07-SC	0.7	23.5	45	80	Silver	43°	909	369910
MIR10-SC	0.7	23.5	45	80	Silver	43°	909	369907
MIR13-SC	0.7	23.5	45	80	Silver	30°	909	369908
NCA07-SC	0.7	23.6	45	72	Blue	43°	909	369911
STA07-SC	0.7	23.6	45	75	Silver	60°	909	369913
NCA07-SC	0.7	23.6	45	80	Silver	43°	909	369912
ACE80-MIR-SC	0.7	23.6	45	75	Silver	43°	909	369903
ST-ACE80-MIR-SC	0.7	23.6	45	75	Silver	43°	1500	369943
MIR20-SC	0.7	23.6	45	80	Silver	43°	909	369906
MIR23-SC	0.7	23.6	45	80	Silver	30°	909	369902
MIR-CI23-SC	0.7	23.6	50	75	Silver	30°	1500	369901
STD07-MIR 18P-SC	0.7	23.6	60	75	Silver	28°	1500	369905
NCD760-SC	0.7	23.6	45	75	Brown	60°	1000	369935
NCD753-MIR-SC	0.7	23.6	45	75	Silver	53°	1000	369936

FNC (Fluorine) (FLOURO RESIN COATING)

Fluoro resin anti-adhesive coating. Superior durability will be expected.

ITEM	THICKNESS(mm)	HEIGHT(mm)	HARDNESS(HS)		COLOR	EDGE ANGLE	LENGTH(mm)	CODE
ITEM	THICKNESS(mm)	HEIGHT(mm)	BODY	EDGE	COLOR	EDGE ANGLE	LENGTH(mm)	CODE
F-SLA080	0.45	8.0	40	70	Blue	49°	909	303046
F-SLA080	0.45	8.0	45	80	Brown	49°	909	303083
F-NCA07	0.7	23.5	45	72	Blue	43°	909	318117
F-ACE80	0.7	23.6	45	75	Silver	43°	909	318746
