NARA MACHINERY CO.
Nara Extruder
Manufacturer: NARA MACHINERY CO., LTD.
Features

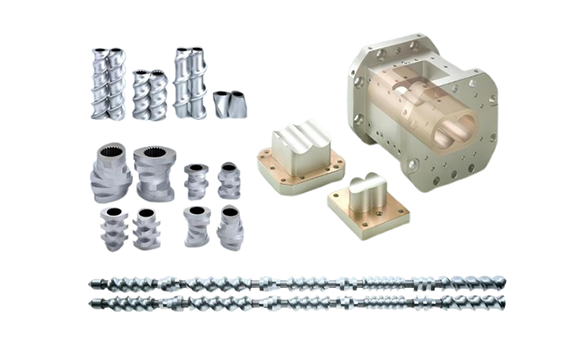

- Screws have a modular design, so that screw elements can be combined in the most suitable combination depending on the formulation and purpose of the customer.
- Barrels also have a modular design, and temperature of each barrel can be precisely controlled for optimal condition for each formulation.
- System can be provided by combining the extruder with material feeder, pre-mixing, pulverizer of extrudate, sizing, etc., as upstream and/or downstream equipments.
It is a continuous process.
- Very uniform solid dispersions are obtained.
- We offer product lineups from small lab-scale to large production-scale.
- It is a solvent-free process.
Specifications
| Type | Capacity (kg/h) | Drive Power (kW) | Applications |
|---|---|---|---|
| Nano-16 | 40-85 | 1.5 | Lab-scale for R&D |
| ZSE-18 | 100-200 | 1.5 | |
| ZSE-27 | 140-290 | 2.2-3.7 | Pilot-scale extruders excellent in cleaning performance |
| ZSE-40 | 180-370 | 3.7-5.5 | cGMP Manufacturing – Easy to disassemble and clean |
| ZSE-50 | 260-550 | 5.5-7.5 |
The processing amount varies depending on the raw material.
For type other than those above, we will design and manufacture in accordance with your request.
