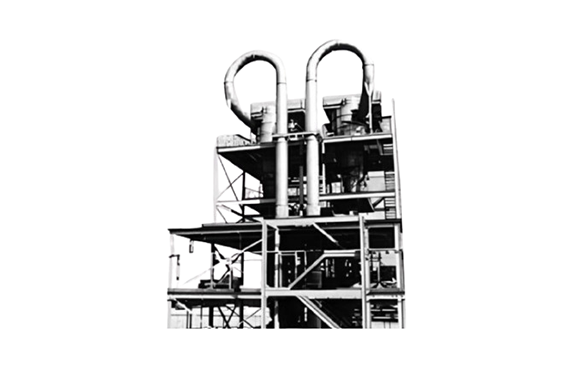

Nara FD Flash Dryer
Manufacturer: NARA MACHINERY CO., LTD.
Model: FD
Features
- The heat capacity coefficient is very large and the thermal efficiency is extremely high in the constant-rate drying zone.
- With combined usage of cage mill, a further high thermal efficiency can be obtained simultaneously with dispersion.
- As high temperature and large quantity of gas can be used, a great heat exchange can be obtained.
- The processed material is accompanied with the gas, so drying and transportation can be performed at same time.
- Especially applicable for primary drying of the material containing high moisture.
Specifications
| Type | FD-200 ~ FD1600 |
|---|---|
| Drying tube dia. (mm) | Ø200 ~ Ø1600 |
| Pipe length (m) | 20 |
| Capacity (kg/h) | 50 – 13500 |
Capacity differs according to temperature settings.
For type other than those above, we will design and manufacture in accordance with your request.
