NARA MACHINERY CO.
Nara GENA
Manufacturer: NARA MACHINERY CO., LTD.
Features

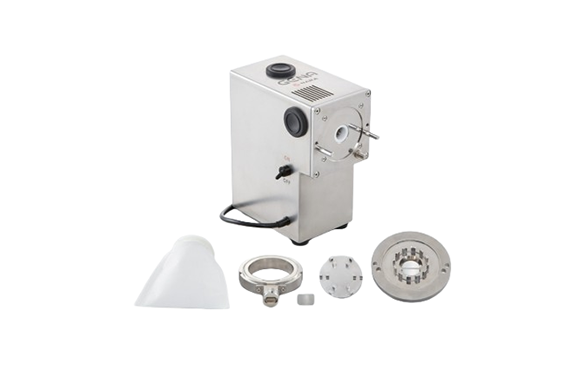

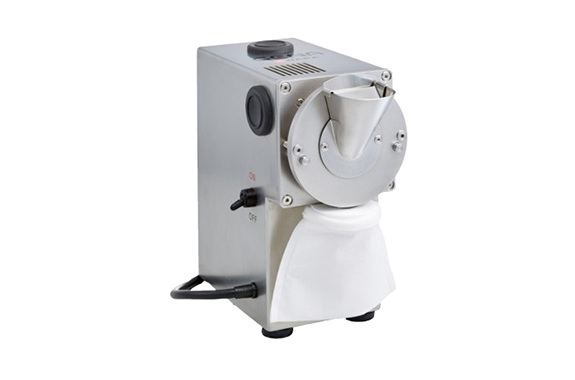

- Ultra small-sized impact mill which can used on the table.
- Easy to assemble, disassemble and clean.
- Experiments can be performed with small quantity of a wide variety of samples.
- Compact type impact mill without operation panel and product collecting tank.
- Polymers that easily melt with the heat generated when crushing can be crushed by using liquid nitrogen.
Specifications
| Power (W) | 500 (100V) |
|---|---|
| Maximum speed of rotation (min⁻¹) | 33,000 (Fixed Speed) Outermost Circumferential Speed: 112m/s |
| Rotor Diameter (mm) | 65 |
| Dimension (mm) | W120 × D294 × H262 |
| Weight (kg) | 10 |
| Material of milling media | SUS304 |
| Finish | Powder Contact Section #320, others #200 |
| Safety Mechanism | Proximity switch for confirming front cover is fully closed |
