NARA MACHINERY CO.

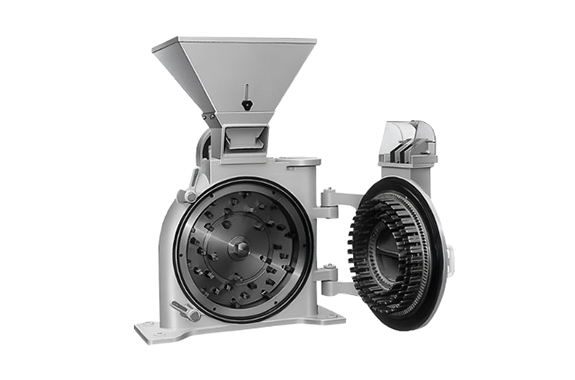

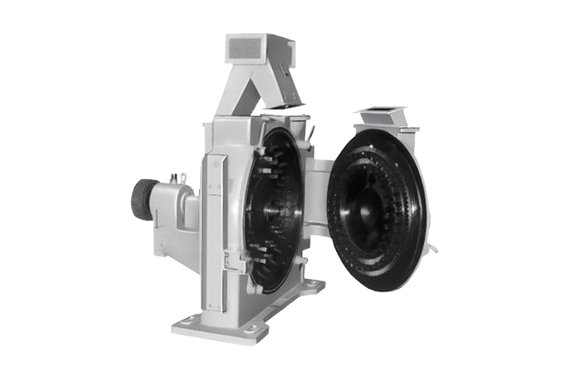

Nara Jiyu Mill
Manufacturer: NARA MACHINERY CO., LTD.
Features
- Super-fine mass milling pulverization is available in a short process time.
- Rotor generates wind which controls rise in temperature of processed product.
- Distribution of pulverizing milling particle size can be adjusted by changing the rotation speed and hole diameter of the screen.
Specifications
| Type | M-2 | M-3 | M-4 | M-5 | M-6 | M-7 | M-8 |
|---|---|---|---|---|---|---|---|
| Power (kW) | 2.2 | 3.7 | 5.5/7.5 | 11~22 | 22/30 | 37~55 | 75/90 |
| Maximum speed of rotation (min⁻¹) | 9000 | 7700 | 6000 | 3300 | 3000 | 2500 | 1800 |
| Diameter of Rotor (mm) | 188 | 225 | 314 | 537 | 600 | 700 | 950 |
For type other than those above, we will design and manufacture in accordance with your request.
The manufacturer may change specifications and equipment without assuming any responsibilities.
