NARA MACHINERY CO.

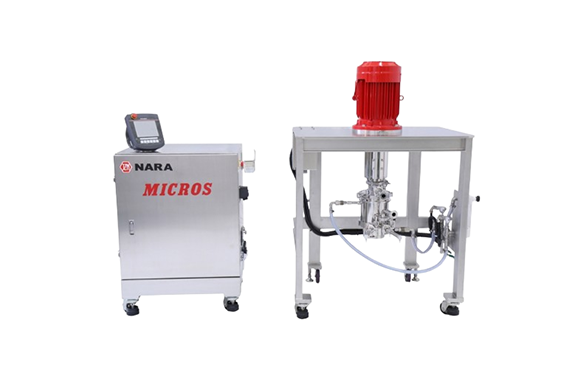

Nara MIC Micros
Manufacturer: NARA MACHINERY CO., LTD.
Model: MIC
Features

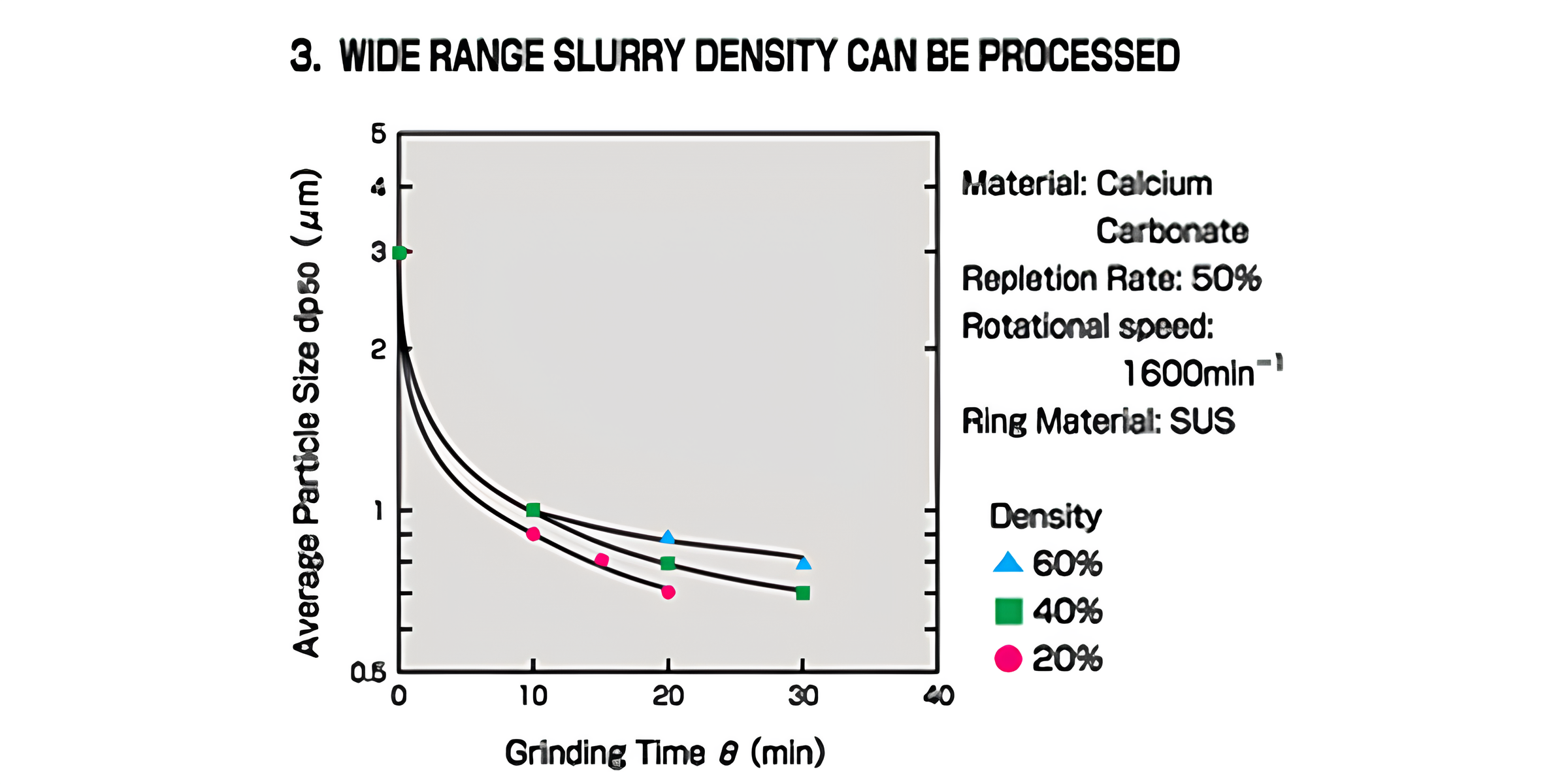

- Slurry with high viscosity can be milled or dispersed in a short processing time.
- Organic solvents can be used.
- Temperature control by cooling or heating is possible, since the vessel has a jacket structure.

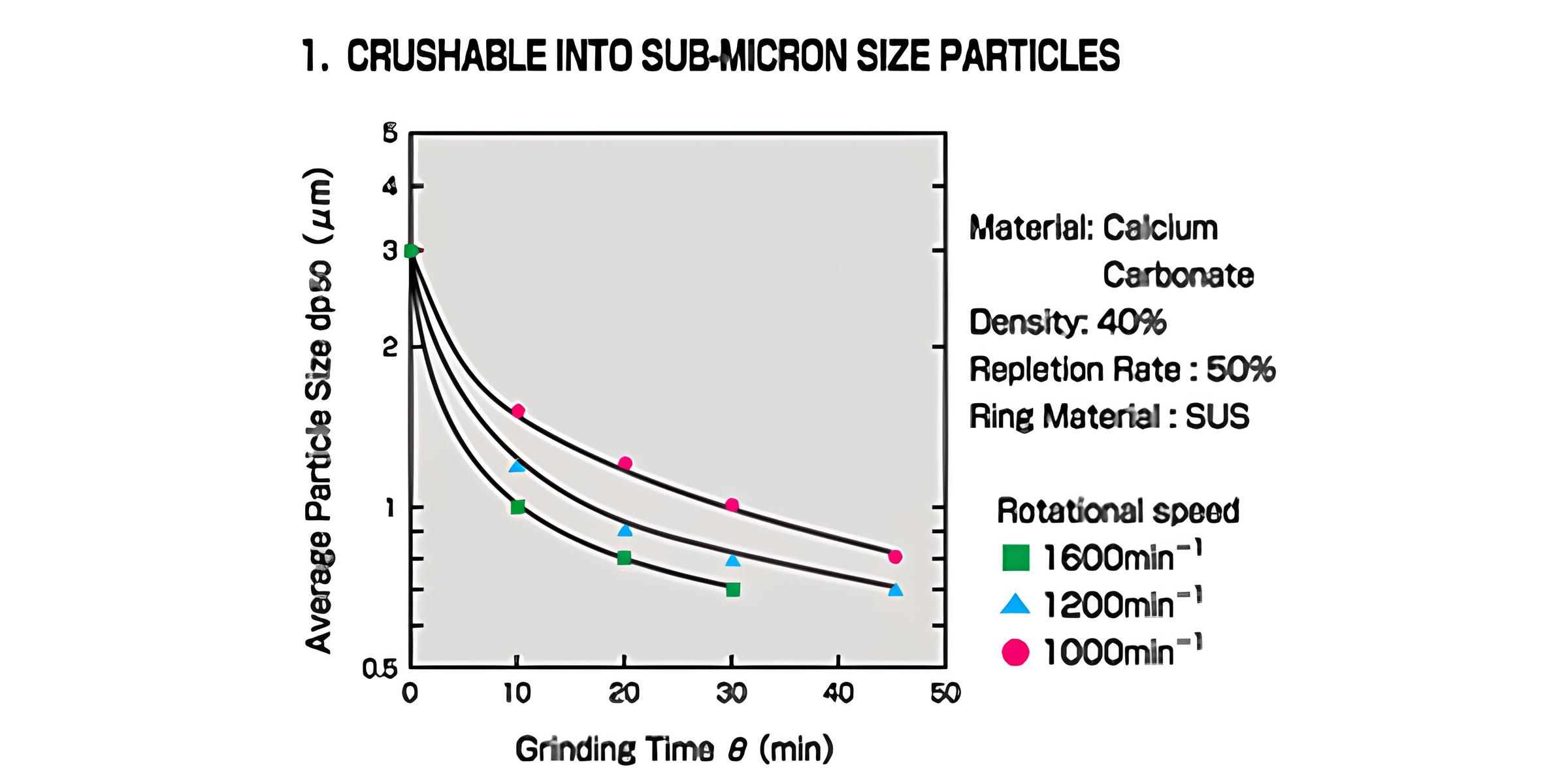

- Fine milling in a short processing time compared to ball mill or beads mill is possible.
- Operation by batch, continuous, or outer circuit is possible.
Specifications
Micros (MIC)
■ Specification
| Type | MIC-0 | MIC-1 | MIC-2 | MIC-3 | MIC-5 | MIC-10 | MIC-20 | MIC-30 |
|---|---|---|---|---|---|---|---|---|
| Power (kW) | 2.2 | 3.7 | 5.5 | 7.5~11 | 7.5~15 | 22~30 | 30~55 | 37~55 |
| Effective Volume (L) | 0.4 | 1 | 1.6 | 3 | 5 | 11 | 23 | 33 |
| Maximum speed of rotation (min−1) | 2500 | 1550 | 1400 | 1225 | 1225 | 1100 | 975 | 925 |
| Material of milling media | ZrO2, WC, SUS | |||||||
For type other than those above, we will design and manufacture in accordance with your request.
Specification: The manufacturer may change specifications and equipment without assuming any responsibilities.
