Manufacturer: NARA MACHINERY CO., LTD.

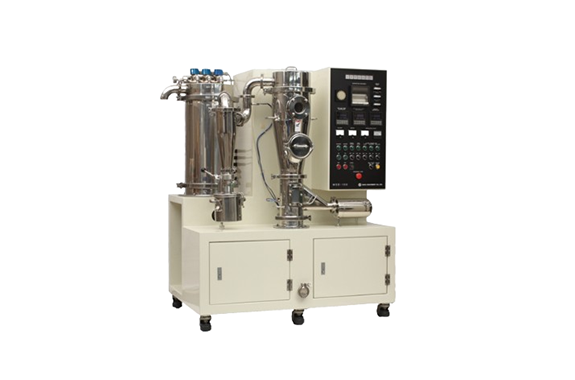

Model: MSD

Features

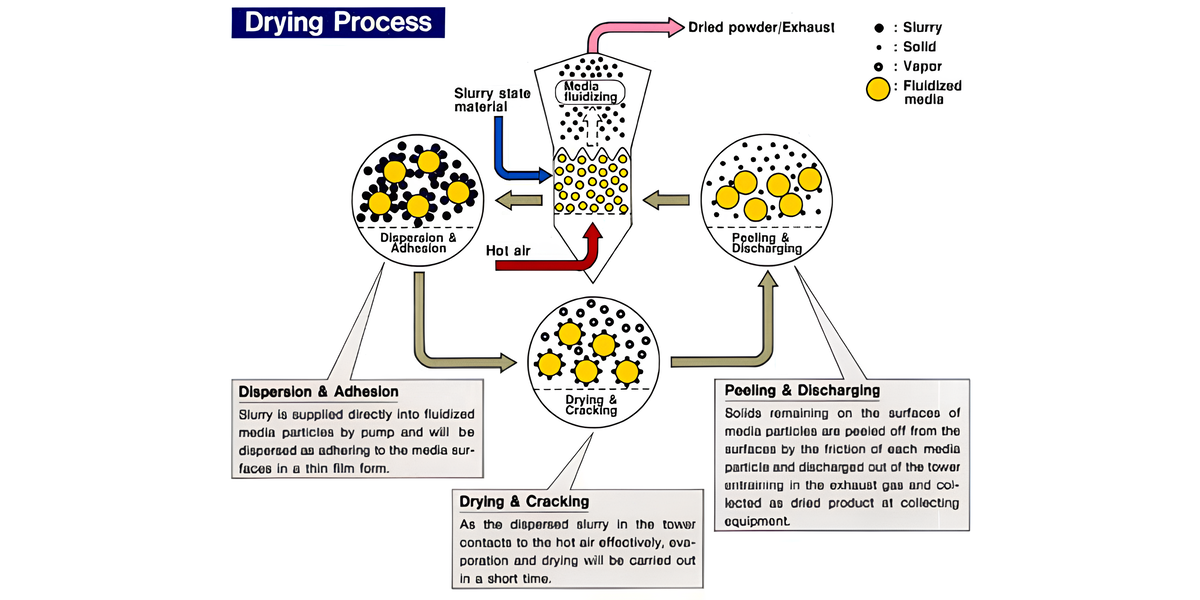

• Active movement of the media can disperse slurry material into the fluidized bed readily and efficiently, therefore, enable to dry wide range from low to high viscous materials.
• Heat transfer capability coefficient ha（KW/m3・K）is as the same value with the normal fluidized bed dryer, therefore the equipment is compact. In comparison to a spray dryer, the volume of the drying tower is approximately 1/20.
• Active fluidization of the media causes efficient heat exchange and lowers the necessary heat energy.
• Spray device is not required for atomization of the slurry material, therefore adjustments of the viscosity of the slurry is not required.
• There are no rotating equipment and driving parts inside the drying tower, which allows easy maintenance. Sanitary design is also available.

Specifications

For type other than those above, we will design and manufacture in accordance with your request.
