NARA MACHINERY CO.

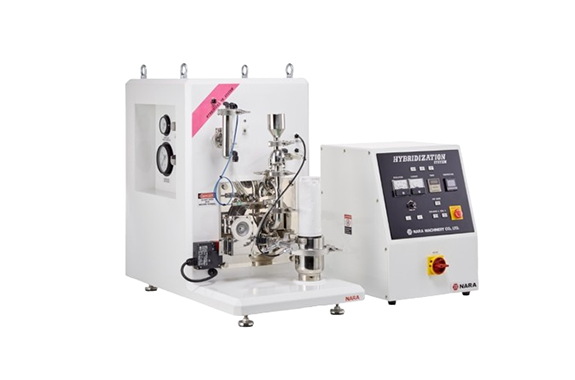

Nara NHS Hybridization System
Manufacturer: NARA MACHINERY CO., LTD.
Model: NHS
Features
- It can be applied to the following purposes: improvement of dispersion, improvement of fluidizaton, improvement of wettability, protection of reactions, controlled-release, improvement of electric or magnetic properties, improvement of catalic properties, improvement of color, surface structure control, improvement of weather resistance, improvement of light resistance, improvement of solubility, improvement of sintering properties, etc.
- Dispersion of particles are excellent, since the particles are processed in a high speed air flow.
- Closed system with inert gas to prevent oxidization of materials, e.g. metal fine particles is possible.
- It is a solvent-free, dry powder coating process.
- Coating by spraying small amount of solvents is also possible.
Specifications
| Type | NHS-0 | NHS-1 | NHS-2 | NHS-3 | NHS-4 | NHS-5 |
|---|---|---|---|---|---|---|
| Power (kW) | 2.2 | 11 | 22 | 45 | 90 | 185 |
| Powder amount (g/batch) | 50 | 400 | 800 | 1600 | 3200 | 6400 |
| Rotor Diameter (mm) | 118 | 230 | 330 | 470 | 670 | 948 |
For type other than those above, we will design and manufacture in accordance with your request.
