NARA MACHINERY CO.

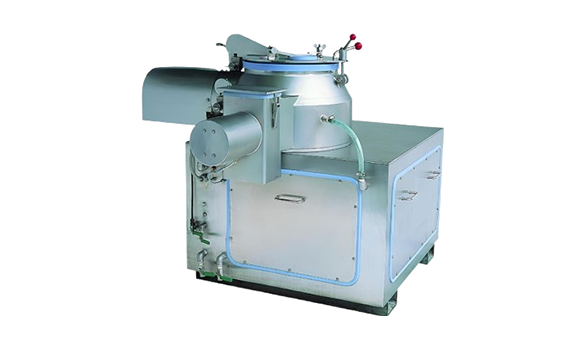

Nara NMG Mixer and Granulator
Manufacturer: NARA MACHINERY CO., LTD.
Model: NMG
Features

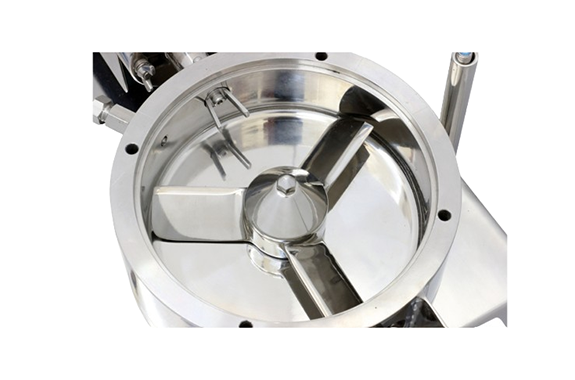

- Automatic cleaning line for the shaft seal part can be introduced. The main agitating blade and granulating blade can be disassembled and removed in a short time.
- Easily cleaned and suitable for GMP. We have lots of experience on handling validation.
- CIP（Cleaning In Place）, SIP（Sterilization In Place） services are available.
- Abrasion resistance and adhesion-free measures are available.
- Special air-seal (product contamination control) is employed at the shaft seal part.
Specifications
| Type | Volume (L) | Rotation Speed (min-1) | Power (kW) |
|---|---|---|---|
| NMG-P Type Pharma type NMG-25P – NMG1800P | Total Volume: 25-1800 Effective Volume: 15-1500 | Main Agitating Shaft: 486-118 Granulation Shaft: 3000 | Main Agitating Shaft: 5.5-75 Granulation Shaft: 1.5-22 |
| NMG-H Type Heavy Duty Type NMG-25H – NMG-2400H | Total Volume: 25-2400 Effective Volume: 15-1600 | Main Agitating Shaft: 486-100/50 Granulation Shaft: 3000 | Main Agitating Shaft: 5.5-90 Granulation Shaft: 2.2-30 |

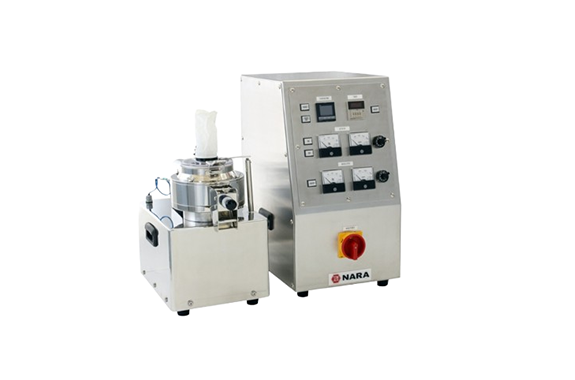

| NMG-L Type Laboratory Type NMG-1L – 15L | Total Volume: 1-15 Effective Volume: 0.6-9 | Main Agitating Shaft: 2000-90 Granulation Shaft: 3000 | Main Agitating Shaft: 0.3-3.7 Granulation Shaft: 0.1-0.4 |
For type other than those above, we will design and manufacture in accordance with your request.
