NARA MACHINERY CO.
Nara Rubato
Manufacturer: NARA MACHINERY CO., LTD.
Features
- Robust and simple structure.
- Optimum crushing with the impact force/ shearing force by using four different types of rotors.
- Easy adjustment of product particle size by changing the rotation speed and screen diameter.
- Fine grinding of a large amount in a short time.
- Abrasion-resistant liners for Rotor, Screen and Casing (option).

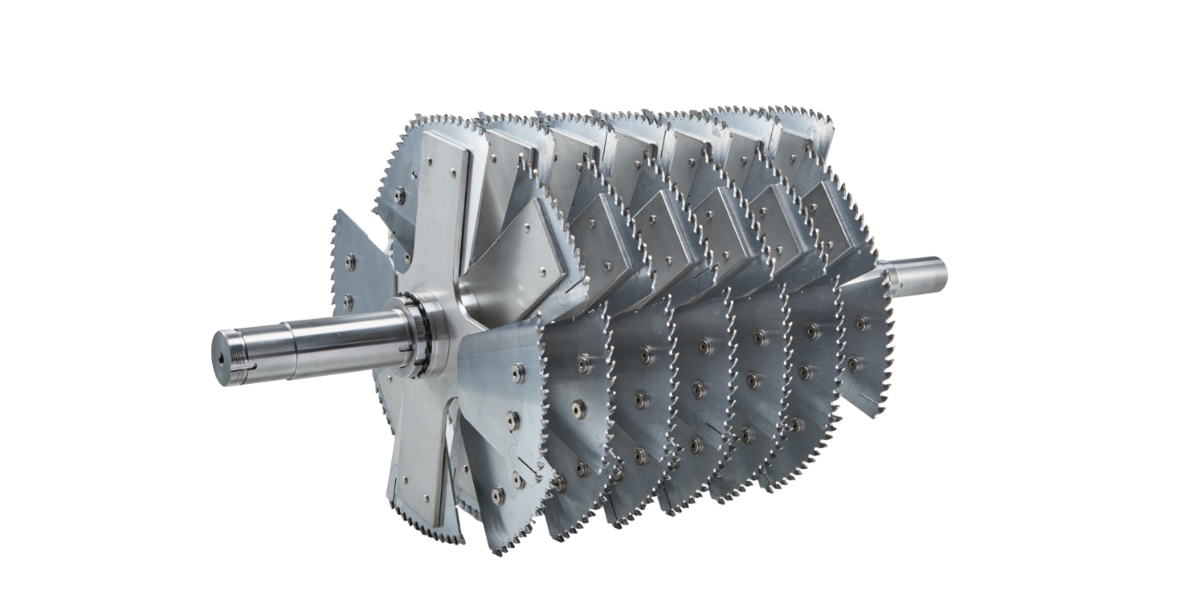

- Crushing soft and elastic material by shearing force from Chip Hammer and Saw Blade.
Specifications
| Type | rubato400-1/2L | rubato400 | rubato600 | rubato800 | rubato1000 |
|---|---|---|---|---|---|
| Power (kW) | 7.5 | 15 | 30 | 55 ~ 90 | 132 ~ 160 |
| Rotor Diameter (mm) | 400 | 400 | 600 | 800 | 1000 |
| Rotor Type | Swing Hammer (H.Type), Chip Hammer (C.Type), Saw Blade (S.Type), High-speed Hammer (F.Type) | Swing Hammer (H.Type), Chip Hammer (C.Type), Saw Blade (S.Type), High-speed Hammer (F.Type) | Swing Hammer (H.Type), Chip Hammer (C.Type), Saw Blade (S.Type), High-speed Hammer (F.Type) | Swing Hammer (H.Type), Chip Hammer (C.Type), Saw Blade (S.Type), High-speed Hammer (F.Type) | Swing Hammer (H.Type), Chip Hammer (C.Type), Saw Blade (S.Type), High-speed Hammer (F.Type) |
For type other than those above, we will design and manufacture in accordance with your request.
