NARA MACHINERY CO.

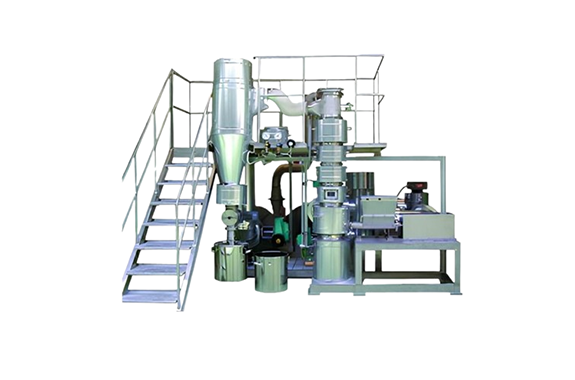

Nara TRD Tornesh Dryer
Manufacturer: NARA MACHINERY CO., LTD.
Model: TRD
Features

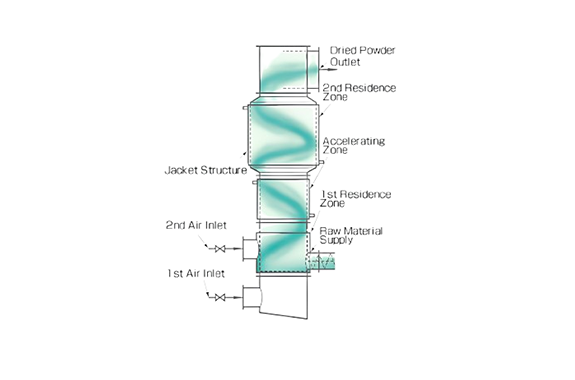

- TRD has a structure where wet powder materials would not adhere inside the equipment due to the high-speed swirl flow generated by the specifically aligned disperse plates applying perforated plate.
- Wet materials are discharged as dried products in several or dozens of minutes. After the drying process, there is no adhesion of powders, therefore it does not require long time for grade change.
- TRD has a simple structure which does not require complicated drying tower construction, and the cleaning is easy.
- There are various models as per the properties of the powder and the capacity.
Specifications
| Type | TRD-250 ~ TRD-3000 |
|---|---|
| Diameter of the body (mm) | 250 ~ 3000 |
| Height of Main body (m) | 1.7 ~ 17 |
| Enlarging part | x1.0 x1.5 x2.0 |

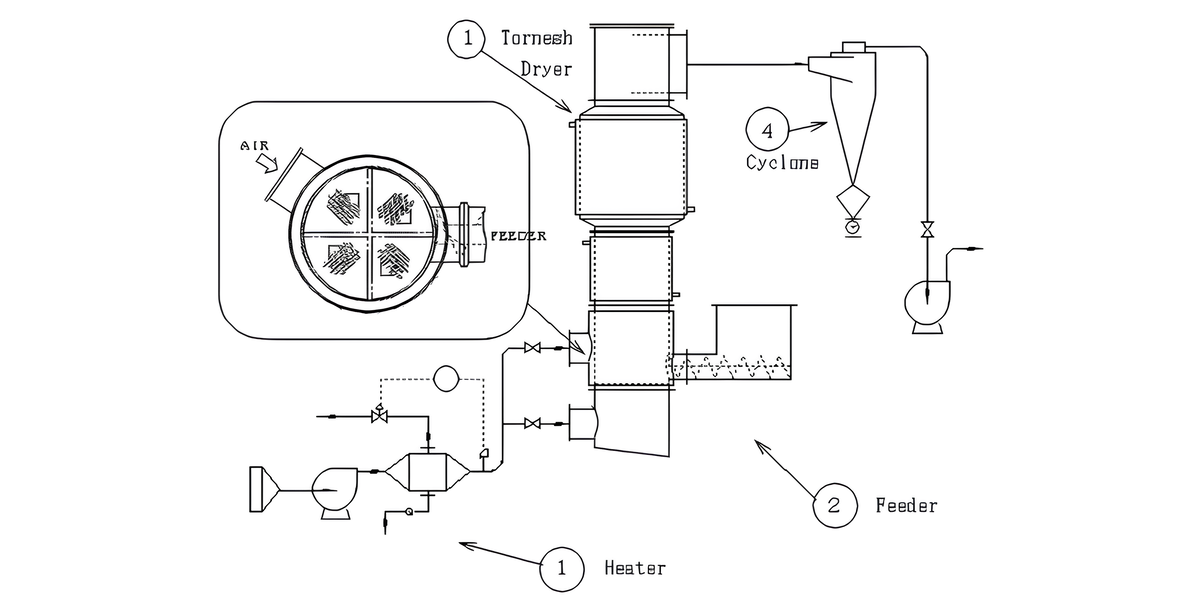

There are various line-ups, such as jacket structure, 1 stage drying, 2 stage drying, and a combination of TRD + FBD.
For type other than those above, we will design and manufacture in accordance with your request.
