NARA MACHINERY CO.
Nara Yory
Manufacturer: NARA MACHINERY CO., LTD.
Features
- Ideal for viscosity up to 10,000mPa・s

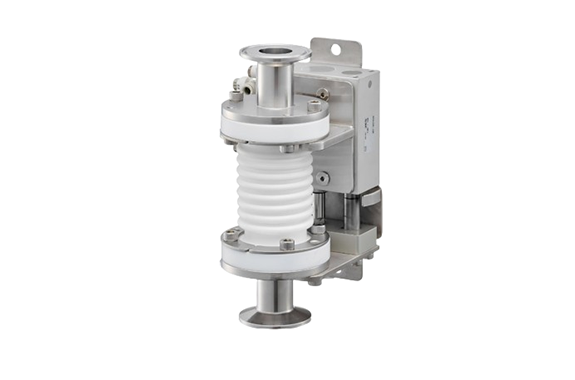

- Contamination-free as no sliding parts are used
- Ideal for various production lines as it is compact, easy to disassemble and clean

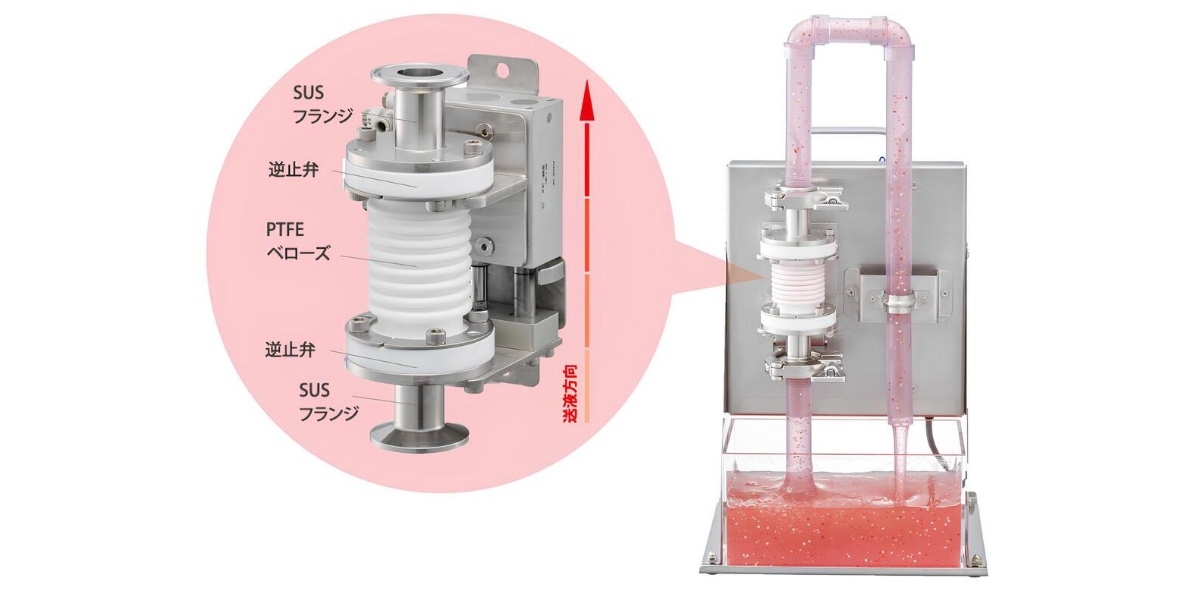

- Corrosion-resistance with PTFE and SUS used in liquid contact area

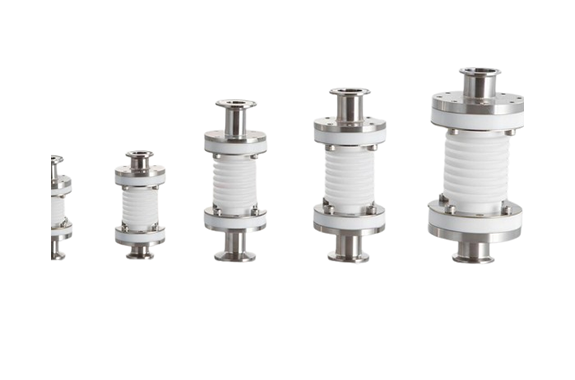

- A wide variety of liquids can be transferred with one pump as bellows can be replaced

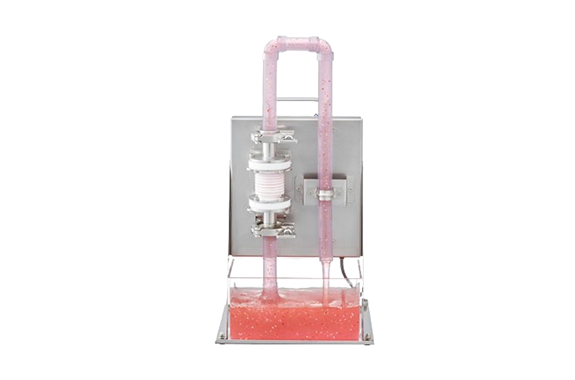

- Slurry containing particles of approx. Φ0.1 mm can be transferred
We offer you a solution to customer needs
Specifications
| Structure/Material | Wetted Part | Driving |
|---|---|---|
| PTFE & SUS 304/316 (L) | Bellows • Non-Return Valve: PTFE Other Pump Components: SUS | Air or Electricity |
We can also design and manufacture using materials other than the ones mentioned above.
■Application Conditions
| Transport Capacity (L/min) | ~7.2 * |
|---|---|
| Pressure Resistance (MPa) | ~0.1 |
| Transport Viscosity (mPa · s) | ~10,000 |
| Particle Diameter in Slurry (mm) | ~Φ 0.1 |
| Temperature (°C) | ~100 |
*We will design and manufacture the transport capacity according to your requirements.

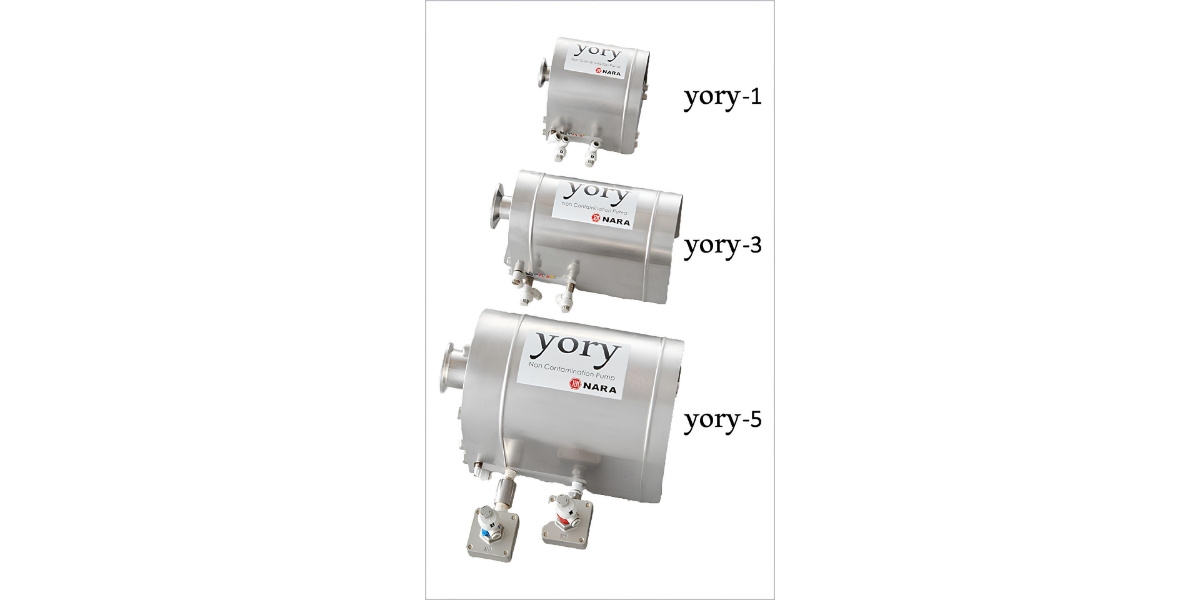

■Product Lineup
| Size | Transport Capacity (L/min) | Flange Diameter |
|---|---|---|
| yory-1 | ~0.5 | 10A |
| yory-2 | ~1.2 | 15A |
| yory-3 | ~2.4 | 1S |
| yory-4 | ~3.6 | 1.25S |
| yory-5 | ~7.2 | 1.5S |
For type other than those above, we will design and manufacture in accordance with your request.
