Made in Japan

Manufacturer: NIPPON DAIYA VALUE Co., Ltd.

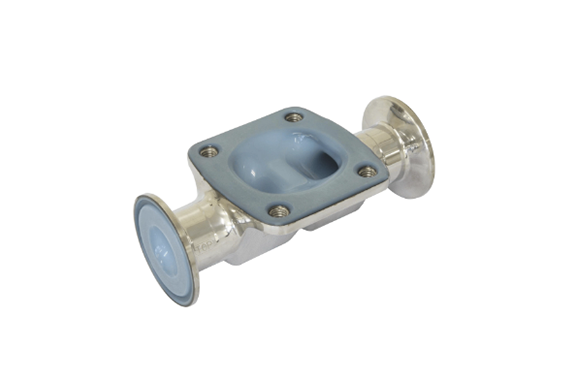

Model: Fluorocarbon resin (ETFE) lining/clamp connection type

NDV provides the suitable valves for facilities with sanitary specifications used for pharmaceutical, food processing, and semiconductors. The Bio-Clean diaphragm valve series are to utilize the characteristics to its fullest potential with a “structure that does not contaminate fluids” and “structure with superior cleaning properties.” In addition, it is selectable to meet the users’ application and fluid, such as a sanitary type butterfly valves for medical containers of pharmaceutical plant. Delivery records for pharmaceutical and food plants and high-purity chemical liquids. Suitable for countermeasures against corrosive fluids, crevice corrosion, and metal ion elution in sanitary piping.

Features

1. Fluorocarbon resin (ETFE) lining is corrosion resistant to strong acids, alkalis, halogens and metal salt solutions.
2. Superior cost performance to special alloy-based materials.
3. No float or blister at the lining parts under the vacuum condition at high temperature.
4. Commercially available fittings and gaskets can be used.
