NIC AUTOTEC

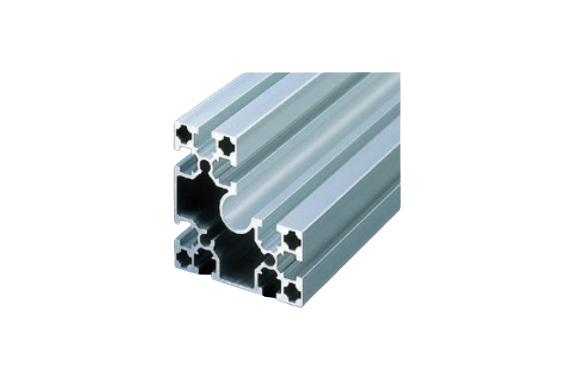

NIC Autotec AFSL-808040-8 Basic Frame
Manufacturer: NIC Autotec, Inc.
Model: AFSL-808040-8

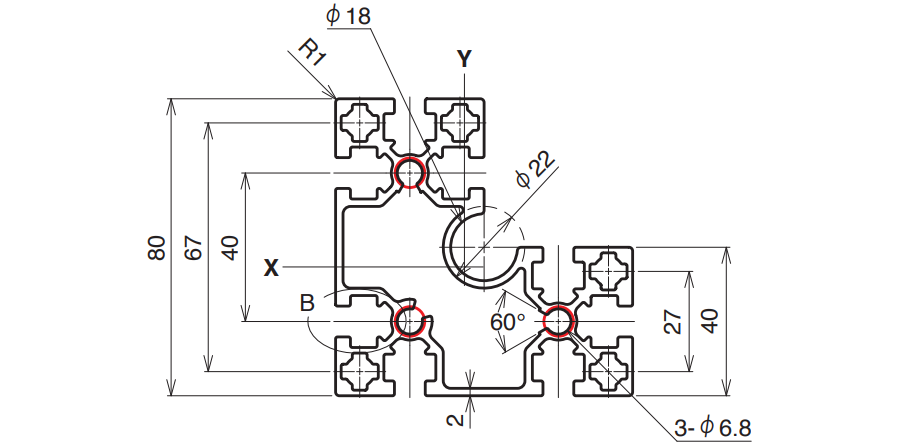

Dimensions
Specifications
| Length | Page length * 1 | Material | Tensile Fitness | Cross-sectional Area | Mass | Second Moment of Area |
|---|---|---|---|---|---|---|
| 6,000 mm | 15–4,000 mm | A6063S-T5 (205) | 185 N/mm² | 1327.6 mm² | 3.585 kg/m | Ix 84.7 × 10⁴ mm⁴ Iy 84.7 × 10⁴ mm⁴ |
