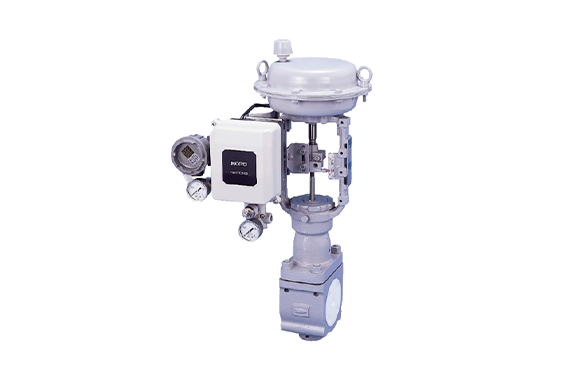

Nihon Koso 5200L/510R Acid Resistant Type Globe Valves
Manufacturer: NIHON KOSO CO., LTD.
Model: 5200L/510R
Features
- This series provides globe type control valves for controlling corrosive and/or poisonous fluids.
- Body wetted parts are made of pure teflon and gland parts are completely sealed by bellows seal bonnet made of pure teflon.
- Body is coverd by cast iron or stainless body cover which is resistant to shock form outside.
Specifications
| Body type | 500R |
|---|---|
| Body size | 1/2″(15A) to 2″(50A) |
| Body rating | JIS 10K Equivalent |
| Fluid temperature | 0 to +150° |
| Connections | Wafer:3/4 or Less, MFR Std:1 or More |
| Body materials | Pure Teflon/Cover: FC250, SS400, SUS304 |
| Trim materials | Pure Teflon |
| Rangeability | 15:1 to 30:1 |
| Flow characteristics | Eq%, Linear |
| Seat Leakage | Bubbletight ANSI/FCI 70-2 Class IV |
| Actuator combination | 5200LA: Pneumatic Diaphragm Actuator 3500LB,3600LB: Solid State Electronic Actuator |
