NIHON KOSO CO.

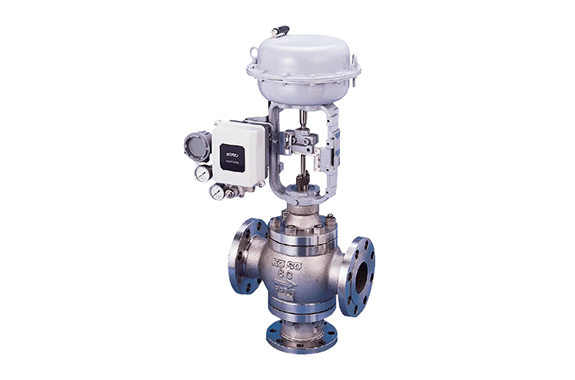

Nihon Koso 5200L/521F/531F 3-Way Diverting Globe Valves
Manufacturer: NIHON KOSO CO., LTD.
Model: 5200L/521F/531F
Features
- Diverting type that divides the flow into two directions and mixing type that converges two flows into one are available.
- For valve size 2.5 in.(65A) or under, 531F(mixing type) is also used as diverting type with no functional problem.
Specifications
| Body type | 521F, 531F |
|---|---|
| Body size | 3/4″(20A) to 8″(200A) |
| Body rating | ANSI Class 150 to 600, JIS 10K to 40K |
| Fluid temperature | -45 to +300° |
| Connections | Flanged (RF) |
| Body materials | SCPH2/WCB, SCS13A/CF8, SCS14A/CF8M |
| Trim materials | SCS14A/CF8M, SCS24 |
| Rangeability | 30:1 |
| Flow characteristics | Linear, ON-Off |
| Seat Leakage | Rated Cv × 0.1% ANSI/FCI 70-2 Class III |
| Actuator combination | 5200LA: Pneumatic Diaphragm Actuator 6300LA: Pneumatic Cylinder Actuator 3500LB,3600LB: Solid State Electronic Actuator 3800LA: Microprocessor Actuator |
