Nihon Koso 6400RB/6500RA/7300RB Pneumatic Cylinder Actuators
Manufacturer: NIHON KOSO CO., LTD.
Model: 6400RB/6500RA/7300RB
Features

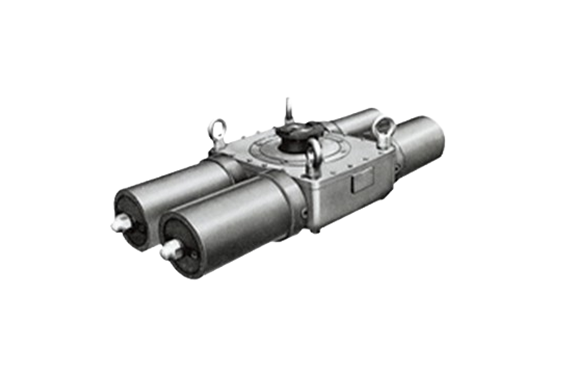

- 6400RB
- Large Torque Cylinder
- 4 Piston Scotch Yoke type Pneumatic Actuator
- Output Shaft Rotating angle/90° or 60°

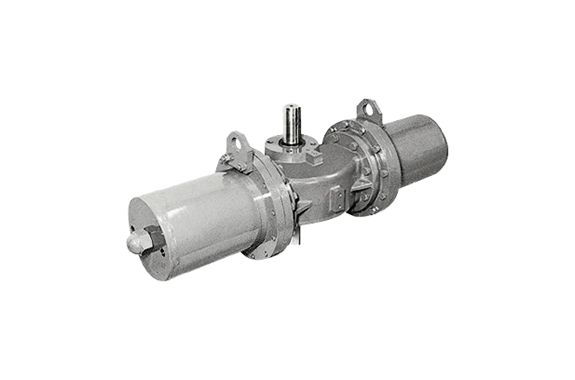

- 6500RA
- Middle Torque Cylinder
- 2 Piston Scotch Yoke type Pneumatic Actuator
- Output Shaft Rotating angle/90° or 60°
- 7300RB
- Middle Torque Cylinder
- 2 Piston Rack & Pinion Pneumatic Actuator
- Output Shaft Rotating angle/90° or 60°
Specifications
6400RB Type code Double Acting type 6420RB 6428RB Size 200 280 Output N·m
at 500KPa9370 20500 Air supply Double Acting: 300 to 500 KPa, Spring Return: 300, 400, 500 KPa Action Direct Action or Reverse Action Environment temp. Standard type: -20 to +60°, Low temp.service: -50 to +60°, High Temp.service: 0 to +100° Options Manual handwheel, Limit Switch, Positioner, Air-set, Speed controller, Lock Valve, Lock up Valve, Solenoid Valve etc. 6500RA Type code Double Acting type Spring Return type 6517RA 6520RA 6528RA 6517RA 6520RA 6528RA Size 170 200 280 200 280 360 Output N·m
at 500KPa1850 3200 7500 907 2231 4413 Air supply Double Acting: 300 to 500 KPa, Spring Return: 300, 400, 500 KPa Action Direct Action or Reverse Action Environment temp. Standard type: -20 to +60°, Low temp.service: -50 to +60°, High Temp.service: 0 to +100° Options Manual handwheel, Limit Switch, Positioner, Air-set, Speed controller, Lock Valve, Lock up Valve, Solenoid Valve etc. 7300RB Type code Double Acting type Spring Return type 7317RB 7323RB 7328RB 7337RB 7317RB 7323RB 7328RB 7337RB Size 170 235 280 375 170 235 280 375 Output N·m
at 500kPa637 1712 2962 6987 212 589 995 2332 Air supply Double Acting: 300 to 500 KPa, Spring Return: 300, 400, 500 KPa Action Direct Action or Reverse Action Environment temp. Standard type: -20 to +60°, Low temp.service: -50 to +60°, High Temp.service: 0 to +100° Options Manual handwheel, Limit Switch, Positioner, Air-set, Speed controller, Lock Valve, Lock up Valve, Solenoid Valve etc.
