NIHON KOSO CO.

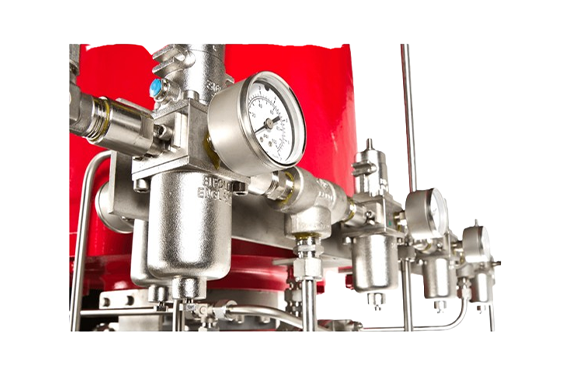

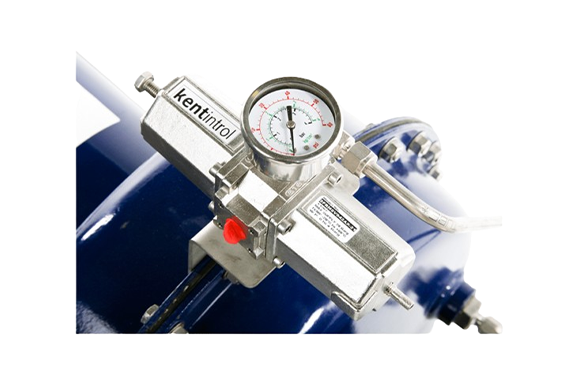

Nihon Koso Kentintrol 316 Stainless Steel Filter Regulator
Manufacturer: NIHON KOSO CO., LTD.
Features
- This stainless-steel combination unit is used for filtration and pressure regulation of compressed air.
- It is widely used for the offshore, food, pharmaceutical and other manufacturing applications.
- It is manufactured from 316 aluminium throughout and has large flow paths to minimise pressure drops. Its rolling diaphragm design allows for very precise adjustments.
Specifications
| Inlet/Outlet Ports | 1/4″ and 1/2″ NPTF |
|---|---|
| Flow Capacity | 1/4″ – 130 SCFM; 1/2″ – 212 SCFM |
| Maximum Inlet Pressure | 20 bar |
| Regulated Pressure | 0.50 to 12 bar |
| Working Temperature | -20°C to 80°C (low-temperature version to -50°C) |
| Drain | Manual |
