NIHON KOSO CO.

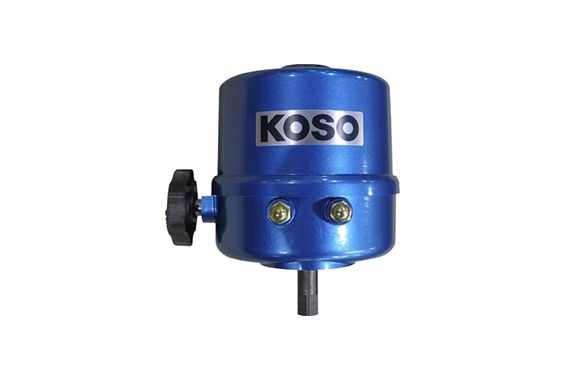

Nihon Koso Motorized Actuators
Manufacturer: NIHON KOSO CO., LTD.
Specifications

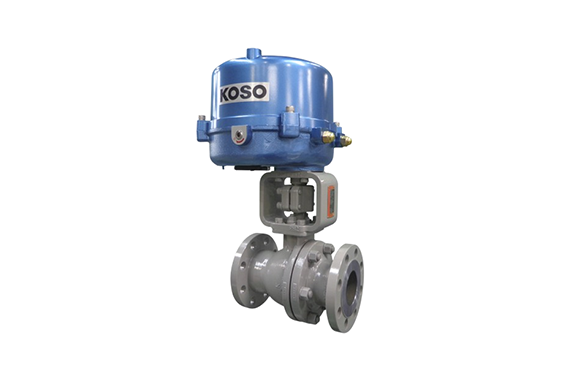

| Type | 3400R | 3500R | 3600R | |
|---|---|---|---|---|
| Type of explosion-proof structure | Pressuretight explosion-proof ExdBT4 | Pressuretight explosion-proof ExdBT4 | Pressuretight explosion-proof ExdBT4 | |
| Principal uses | 2-position control | Control | Control | |
| Power | Drive motor | AC reversible motor | Brushless DC motor | AC reversible motor |
| Power supply | Single phase 100V AC 50/60Hz | Single phase 100V AC 50/60Hz | Single phase 100V AC 50/60Hz | |
| Power supply Optional | Single phase 110/200/220V AC 50/60Hz | Single phase A110/200/220V AC 50/60Hz | Single phase 110/200/220V AC 50/60Hz | |
| Motor rating | 30 minutes | Continuous | 30 minutes | |
| Control mechanism | Input signal | Switching contact | 4 to 20mA DC | 4 to 20mA DC or 1 to 5V DC |
| Input signal Optional | – | 1 to 5V DC/4 to 12mA DC/12 to 20mA DC | – | |
| Opening signal transmission | – | – | 4 to 20mA DC | |
| Opening signal transmission Optional | Potentiometer (5KΩ/135Ω) | 4 to 20mA DC with zero and span adjustment | – | |
| Resolution | – | 0.3% (3/1000) | 0.8 to 1.0% (1/125 to 1/100) | |
| Resolution Optional | – | 0.2% (2/1000) | 0.4% (1/250) | |
| Zero adjust range | – | +/-12.5% | +/-25% | |
| Span adjust range | – | 5 to 100% | 20 to 100% | |
| Operation | – | Either forward operation or reverse operation can be selected | Either forward operation or reverse operation can be selected | |
| Ancillary mechanism | Control position detection Optional | Auxiliary limit switch (voltfree), maximum points of detection 2 places | – | Auxiliary limit switch (voltfree), maximum points of detection 2 places |
| Manual operation mechanism | Dismountable handle type | Dismountable handle type | Dismountable handle type | |
| Sequence output signal | – | Output shaft clockwise turned position | – | |
| Sequence output signal Optional | – | Output shaft counterclockwise turned position | – | |
| Overload protection | With built-in thermal protector | With built-in overload protector | With built-in thermal protector | |
| Overload protection Optional | Torque switch on close side (CW direction only) | – | Overload unit, Torque switch on closed side (CW direction only) | |
| Space heater Optional | * Please contact us for details, as this matter depends on the power supply voltage. | |||
| Conditions for installation | Ambient temperature | -10 to 50° | -10 to 50° | -10 to 50° |
| Ambient temperature With space heater | -20 to 40° | -20 to 40° | -20 to 40° | |
| Mounting position | Should not be mounted in an inverted position from the maintenance face. | |||
| Body portion | External sheath type | Protection class IP55 or equivalent | ||
| Wiring port | G3/4 (2 places) | |||
| Wiring port Optional | Various adaptors can be mounted | |||
| Installation seat | Conforms to ISO | |||
| Type | 3400R | 3500R | 3600R | |
|---|---|---|---|---|
| Type of explosion-proof structure | Pressuretight explosion-proof ExdBT4 | Pressuretight explosion-proof ExdBT4 | Pressuretight explosion-proof ExdBT4 | |
| Principal uses | 2-position control | Control | Control | |
| Power | Drive motor | AC reversible motor | Brushless DC motor | AC reversible motor |
| Power supply | Single phase 100V AC 50/60Hz | Single phase 100V AC 50/60Hz | Single phase 100V AC 50/60Hz | |
| Power supply Optional | Single phase 110/200/220V AC 50/60Hz | Single phase 110/200/220V AC 50/60Hz | Single phase 110/200/220V AC 50/60Hz | |
| Motor rating | 30 minutes | Continuous | 30 minutes | |
| Control mechanism | Input signal | Switching contact | 4 to 20mA DC | 4 to 20mA DC or 1 to 5V DC |
| Input signal Optional | – | 1 to 5V DC/4 to 12mA DC/12 to 20mA DC | – | |
| Opening signal transmission | – | – | 4 to 20mA DC | |
| Opening signal transmission Optional | Potentiometer (5KΩ/135Ω) | 4 to 20mA DC with zero and span adjustment | – | |
| Resolution | – | 0.3% (3/1000) | 0.8 to 1.0% (1/125 to 1/100) | |
| Resolution Optional | – | 0.2% (2/1000) | 0.4% (1/250) | |
| Zero adjust range | – | +/-12.5% | +/-25% | |
| Span adjust range | – | 5 to 100% | 20 to 100% | |
| Operation | – | Either forward operation or reverse operation can be selected | Either forward operation or reverse operation can be selected | |
| Ancillary mechanism | Control position detection Optional | Auxiliary limit switch (voltfree), maximum points of detection 2 places | – | – |
| Manual operation mechanism | Dismountable handle type | Dismountable handle type | Dismountable handle type | |
| Sequence output signal | – | Output shaft lowered position | – | |
| Sequence output signal Optional | – | Output shaft elevated position | – | |
| Overload protection | With built-in thermal protector | With built-in overload protector | With built-in thermal protector | |
| Overload protection Optional | – | – | Overload unit | |
| Space heater Optional | * Please contact us for details, as this matter depends on the power supply voltage. | |||
| Conditions for installation | Ambient temperature | -10 to 50° | -10 to 50° | -10 to 50° |
| Ambient temperature With space heater | -20 to 40° | -20 to 40° | -20 to 40° | |
| Mounting position | Should not be mounted in an inverted position from the maintenance face. | |||
| Body portion | External sheath type | rotection class IP55 or equivalent | ||
| Wiring port | G3/4 (2 places) | |||
| Wiring port Optional | Various adaptors can be mounted | |||
| Installation seat | Conforms to ISO | |||
