Manufacturer: NIHON KOSO CO., LTD.

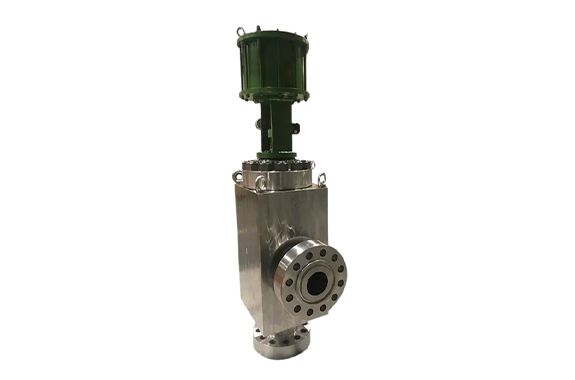

Model: 1-44MC

Features

PARCOL 1-44MC Series Multistep Cascade Control Valves are the best solution for severe services with high pressure, dirt, cavitating and erosive liquid flow.

• The peculiar trim is constituted by several plug sections, working in cascade with increasing passage areas to guarantee excellent anti-cavitation performances.
• A number of stages with different area ratios are available to cover different process conditions.
• Furthermore, the trim can be customized to fully accomplish particular requirements.
• The seat can provide Class VI leakage according to IEC 60534-4 and ANSI/FCI 70-2.
• Large passage sections permit to process also liquids with large particles without damaging and plugging.
• Easy quick changing of the trim is possible thanks to the top-entry design, which guarantee full access to the valve interior without removing valve from the pipe.
