Manufacturer: NIHON KOSO CO., LTD.
Features

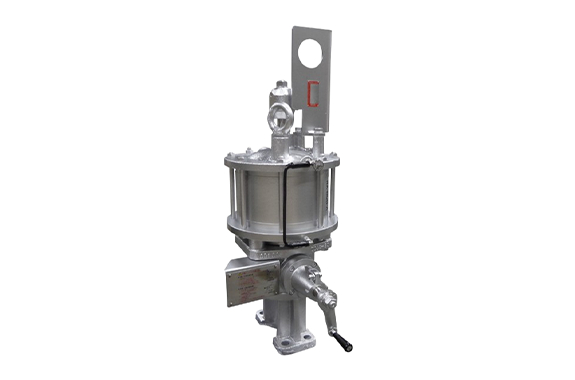

- 6100LA
- 1 Piston type
- Valve stem and actuator output shaft connection is inside the cylinder.

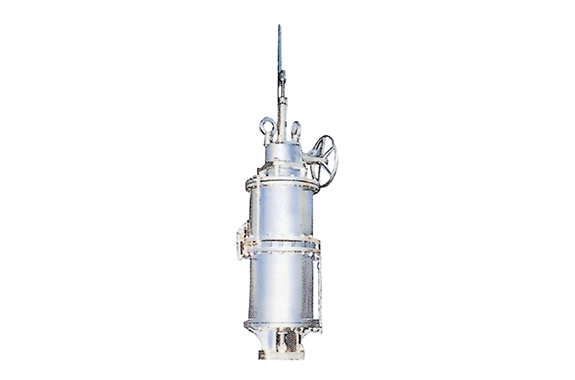

- 6200LA
- 2 Piston type
- Valve stem and actuator output shaft connection is inside the cylinder.

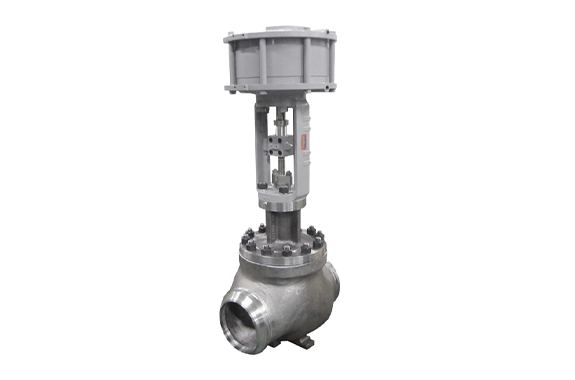

- 6300LA
- 1 Piston type
- Valve stem and actuator output shaft connection is outside the cylinder (in Yoke).
Specifications
6100LA 6200LA| Type code | Double Acting type |
|---|
| 6110LA | 6116LA | 6128LA | 6136LA | 6141LA | 6154LA | 6254LA |
| Size | 100 | 160 | 280 | 360 | 415 | 540 | 540×2 |
|---|
| Output N at 500KPa | 3430 | 9310 | 29890 | 45570 | 62220 | 106820 | 213640 |
|---|
| Max. stroke (mm) | 60 | 210 | 310 | 610 | 810 | 810 | 1360 |
|---|
| Air supply | Double Acting: 300 to 500kPa, Spring Return: 500kPa |
|---|
| Action | Direct Action or Reverse Action |
|---|
| Environment temp. | Standard type: -20 to +60°, Low temp.service:-50 to +60°, High Temp.service: 0 to +100° |
|---|
| Options | Manual handwheel, Limit Switch, Positioner, Air-set, Speed controller etc. |
|---|
6300LA| Type code | Double Acting type | Spring Return type |
|---|
| 6315LA | 6320LA | 6330LA | 6345LA | 6360LA | 6330LA | 6345LA | 6360LA |
| Size | 150 | 200 | 300 | 450 | 600 | 300 | 450 | 600 |
|---|
| Output N at 500KPa | 7938 | 14308 | 32242 | 73010 | 129850 | 7644 | 17248 | 30576 |
|---|
| Max. stroke (mm) | 210 | 210 | 210 | 410 | 410 | 210 | 210 | 210 |
|---|
| Air supply | Double Acting: 300 to 500kPa, Spring Return: 500kPa |
|---|
| Action | Direct Action or Reverse Action |
|---|
| Environment temp. | Standard type: -20 to +60°, Low temp.service:-50 to +60°, High Temp.service: 0 to +100° |
|---|
| Options | Manual handwheel, Limit Switch, Positioner, Air-set, Speed controller etc. |
|---|
