Nihon Koso Solid State Electronic Actuators
Manufacturer: NIHON KOSO CO., LTD.
Features
- Each product of this series drives and controls a control valve, with a motor driven by a full-electronic controller upon receipt of a signal (4 to 20 m ADC) from the controller.
- A product of 3500 series, which is of high-end type, executes critical control by means of a brushless DC servo, a product of 3600 series or 3620 series providing superior cost performance executes control by an AC reversible motor. Furthermore, a product of 3620 series, which is of motor built-in type, provides excellent heat radiation effect.
- In addition, explosion-proofing approved models are also replete.
Specifications
| Principal uses | Control | |
|---|---|---|

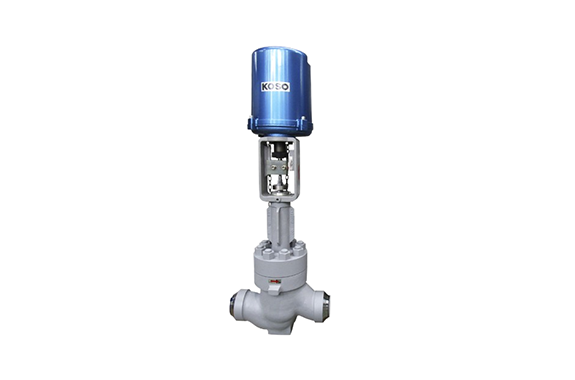

| Power | Drive motor | Brushless DC motor |
| Power supply | Single phase 100V AC 50/60Hz | |
| Power supply Optional | Single phase 110/200/220V AC 50/60Hz | |
| Motor rating | Continuous | |
| Control mechanism | Input signal | 4 to 20mA DC |
| Input signal Optional | 1 to 5V DC/4 to 12mA DC/12 to 20mA DC | |
| Opening signal transmission Optional | 4 to 20mA DC with zero and span adjustment | |
| Resolution | 0.3% (3/1000) | |
| Resolution Optional | 0.2% (2/1000) | |
| Zero adjust range | +/-12.5% | |
| Span adjust range | 5 to 100% | |
| Operation | Either forward operation or reverse operation can be selected | |
| Ancillary mechanism | Manual operation mechanism | Dismountable handle type |
| Sequence output signal | Output shaft clockwise turned position (3500R) Output shaft lowered position (3500L) | |
| Sequence output signal Optional | Output shaft counterclockwise turned position (3500R) Output shaft elevated position (3500L) | |
| Overload protection | With built-in overload protector | |
| Space heater Optional | * Please contact us for details, as this matter depends on the power supply voltage. | |
| Conditions for installation | Ambient temperature | -10 to 50° |
| Ambient temperature With space heater | -20 to 40° | |
| Mounting position | Should not be mounted in an inverted position from the maintenance face. | |
| Body portion | External sheath type | Protection class IP55 or equivalent |
| Wiring port | G1/2 (2 places) | |
| Wiring port Optional | Various adaptors can be mounted | |
| Installation seat | Conforms to ISO | |
| Principal uses | Control | |
|---|---|---|

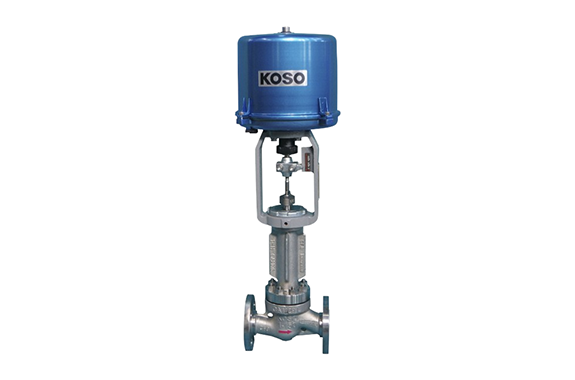

| Power | Drive motor | AC reversible motor |
| Power supply | Siingle phase 100V AC 50/60Hz | |
| Power supply Optional | Single phase 110/200/220V AC 50/60Hz | |
| Motor rating | 30 minutes | |
| Control mechanism | Input signal | 4 to 20mA DC or 1 to 5V DC |
| Opening signal transmission | 4 to 20mA DC | |
| Resolution | 0.8 to 1.0% (1/125 to 1/100) | |
| Resolution Optional | 0.4% (1/250) | |
| Zero adjust range | +/-25% | |
| Span adjust range | 20 to 100% | |
| Operation | Either forward operation or reverse operation can be selected | |
| Ancillary mechanism | Control position detection Optional | Auxiliary limit switch (voltfree), maximum points of detection 2 places (3600R) |
| Manual operation mechanism | Dismountable handle type | |
| Overload protection | With built-in thermal protector | |
| Overload protection Optional | Overload unit, Torque switch on closed side (CW direction only, 3600R) | |
| Space heater Optional | *Please contact us for details, as this matter depends on the power supply voltage. | |
| Conditions for installation | Ambient temperature | -10 to 50° |
| Ambient temperature With space heater | -20 to 40° | |
| Mounting position | Should not be mounted in an inverted position from the maintenance face. | |
| Body portion | External sheath type | Protection class IP55 or equivalent |
| Wiring port | G3/4 (3600R) G1/2 (3600L) 2 places | |
| Wiring port Optional | Various adaptors can be mounted, Terminal box (3600L) | |
| Installation seat | Conforms to ISO | |
| Principal uses | Control | |
|---|---|---|
| Power | Drive motor | AC reversible motor |
| Power supply | Single phase AC100/110V 50/60Hz (+/-5%) | |
| Power supply Optional | Single phase AC200/220V 50/60Hz (+/-5%) | |
| Motor rating | 30 minutes | |
| Control mechanism | Input signal | 4 to 20mA DC or 1 to 5V DC |
| Opening signal transmission | 4 to 20mA DC | |
| Resolution | 0.5 to 1.0% (1/200 to 1/100) | |
| Resolution Optional | 0.3% (1/300) | |
| Zero adjust range | +/-25% | |
| Span adjust range | 20 to 100% | |
| Operation | Either forward operation or reverse operation can be selected | |
| Save function | ON/OFF selection by select switch | |
| Ancillary mechanism | Control position detection Optional | Auxiliary limit switch (voltfree), maximum points of detection 2 places |
| Manual operation mechanism | With handle insertion hole | |
| Overload protection | With built-in thermal protector, Torque switch (3620R is an option) | |
| Space heater Optional | * Please contact us for details, as this matter depends on the power supply voltage. | |
| Conditions for installation | Ambient temperature | -10 to 50° |
| Ambient temperature With space heater | -20 to 40° | |
| Mounting position | Should not be mounted in an inverted position from the maintenance face. | |
| Body portion | External sheath type | Protection class IP55 or equivalent |
| Wiring port | G1/2 (2 places) | |
| Wiring port Optional | Various adaptors can be mounted, Terminal box | |
| Installation seat | Conforms to ISO | |
