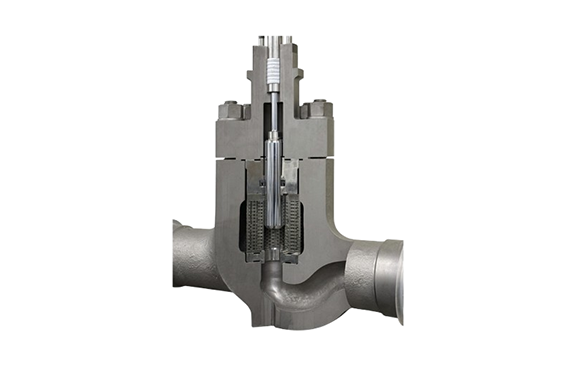

Nihon Koso Vector D Trim Series Control Valves
Manufacturer: NIHON KOSO CO., LTD.
Model: Vector D Trim Series
Features
- This Series is multi-ad-vantageous in that its improved performance and durabitity allows maintenance cost reduction and system simplification.
- Since such ancillaries as diffusers and silencers are not necessary, equipment cost can be reduced too.
- From 500M, 500D and 500J, depending on the fluid condition, most suitable model can be selected comparing functions and prices.
Specifications
| Body type Body Styles | 500M Globe / Angle | 500D Globe / Angle | 500J Globe / Angle | |
|---|---|---|---|---|
| Body size | 1″ to 36″(900A) | 1″ to 36″(900A) | 1″ to 18″(450A) | |
| Body rating | ANSI Class 150 to 4500, JIS10K to 63K | ANSI Class 150 to 4500, JIS10K to 63K | ANSI Class 150 to 2500, JIS 10K to 63K | |
| Fluid temperature | -196 to +565° (-320F to +1050F) | |||
| Connections | Flanged (RF, RTJ), Butt Weld, Socket Weld, Integral Flanges (RF, RTJ) | |||
| Body materials | SCPH2/WCB, SCPH21/WC6, SCPL1/LCB, SCS13A/CF8, SCS14A/CF8M, A105, F11, F22, etc… | |||
| Trim materials | SUS410/410SS, SUS630/SCS24, SUS316/SCS14A, INCONEL, etc… | |||
| Rangeability | 50:1 to 20:1 | |||
| Flow characteristics | Linear , Modified Linear , Modified Eq% | |||
| Leakage | Metal seat | Rated ANSI/FCI 70-2 Class IV, V or MSS-SP-61 | ||
| Soft seat | Bubbletight ANSI/FCI 70-2 Class VI | |||
| Trim Levels | Up to Level 24 | Up to Level 40 | Up to Level 8 | |

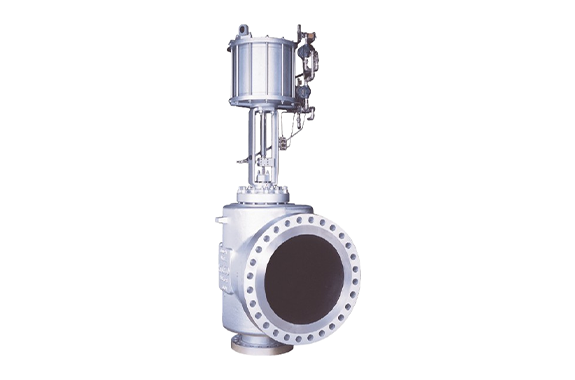

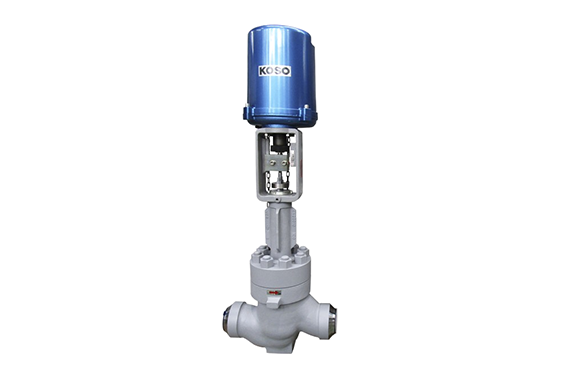

| Actuator combination | 5200LA: Pneumatic Diaphragm Actuator 6300LA: Pneumatic Cylinder Actuator 3500LB,3600LB: Solid State Electronic Actuator 3800LA: Microprocessor REXA Actuator | |||
