Nikki Co., Ltd.
Nikki LED Tape Light Signage Lighting Waterproof LED Spotlight
Manufacturer: Nikki Co., Ltd.
Model: LED Tape Light
High color rendering
The color rendering index is high at Ra90, and the higher the color rendering index of the light source, the closer the color reproduction will be to ideal light sources or natural light, making it ideal for use in situations where color performance is important.
Features
It is energy-efficient, has low maintenance costs, and generates little heat, so it can be installed safely for a long period of time.
It can be cut to the required length and the double-sided adhesive on the back makes it easy to install anywhere.
It is IP65 waterproof so it can be used in places where water may splash.
Application Examples
It is suitable for advertising signs, indirect lighting for homes, gardens and landscaping, etc.
Specification
| LED Size | SMD2835 |
|---|---|
| Operating temperature | -20℃ to 50℃ (but do not freeze) |
| Protection rating | IP65 |
| Compliance standards |  |
| Option | AC/DC adapter (ND-PM243) + jack processing (24W) |
|---|---|
| AC/DC adapter (ND-PM247) + jack processing (60W) | |
| Cable with switch (ND-SW01) |
Material properties
The LEDs used are highly stable SMD2835.
The expected life of the LED strip is 40,000 hours at an operating temperature of 40°C, and the waterproof rating is IP65, so it can be used in places where it may be exposed to water.
Size and color selection
There are two types of LED count per meter: 60 and 120.
You can choose from five colors: daylight (6,500K), incandescent (3,000K), red (620-625nm), green (515-525nm), and blue (460-470nm), making it suitable for a variety of situations.
Voltage drop in LED strip lights
This is a phenomenon in which the voltage output from a power supply drops at the ends.
In a long tape light circuit, if the voltage gradually decreases, the end will become dark.
Bright all the way to the end
Conventional products with DC12V have a large voltage drop, but LED tape lights use DC24V to reduce voltage drop.
In addition, the uniquely designed PCB board structure reduces resistance, so brightness is maintained all the way to the end, even if the light is long.
When connecting LED tape lights
The maximum length of the LED tape lights in our lineup is 5 metres, but it is also possible to connect multiple LED tape lights together for use.
If it gets too long and the ends are dark, connect both ends to a power source.
Standard model list (60 pieces/1m)
| Model | Color | Color rendering | Total luminous flux | Illuminance (1m) | Power supply | Power Consumption | Length |
|---|---|---|---|---|---|---|---|
| N-LY60-S2835W65-W24-IP65 2M | 6,500K | Ra90 | 1,190lm | 380lx | DC24V | 24W | 2m |
| N-LY60-S2835W65-W24-IP65 5M | 60W | 5m | |||||
| N-LY60-S2835W30-W24-IP65 2M | 3,000K | 1,140lm | 370lx | 24W | 2m | ||
| N-LY60-S2835W30-W24-IP65 5M | 60W | 5m | |||||
| N-LY60-S2835R-W24-IP65 2M | Red 620-625nm | – | 350lm | 100 lx | 24W | 2m | |
| N-LY60-S2835R-W24-IP65 5M | 60W | 5m | |||||
| N-LY60-S2835G-W24-IP65 2M | Green 515-525nm | 1,010lm | 300lx | 24W | 2m | ||
| N-LY60-S2835G-W24-IP65 5M | 60W | 5m | |||||
| N-LY60-S2835B-W24-IP65 2M | Blue 460-470nm | 200lm | 50 lx | 24W | 2m | ||
| N-LY60-S2835B-W24-IP65 5M | 60W | 5m |
Standard model list (120 pieces/1m)
| Model | Color | Color rendering | Total luminous flux | Illuminance (1m) | Power supply | Power Consumption | Length |
|---|---|---|---|---|---|---|---|
| N-LY120-S2835W65-W24-IP65 2M | 6,500K | Ra90 | 1,240lm | 390lx | DC24V | 24W | 2m |
| N-LY120-S2835W65-W24-IP65 5M | 60W | 5m | |||||
| N-LY120-S2835W30-W24-IP65 2M | 3,000K | 1,200lm | 390lx | 24W | 2m | ||
| N-LY120-S2835W30-W24-IP65 5M | 60W | 5m | |||||
| N-LY120-S2835R-W24-IP65 2M | Red 620-625nm | – | 380lm | 110lx | 24W | 2m | |
| N-LY120-S2835R-W24-IP65 5M | 60W | 5m | |||||
| N-LY120-S2835G-W24-IP65 2M | Green 515-525nm | 1,280lm | 370lx | 24W | 2m | ||
| N-LY120-S2835G-W24-IP65 5M | 60W | 5m | |||||
| N-LY120-S2835B-W24-IP65 2M | Blue 460-470nm | 230lm | 60lx | 24W | 2m | ||
| N-LY120-S2835B-W24-IP65 5M | 60W | 5m |

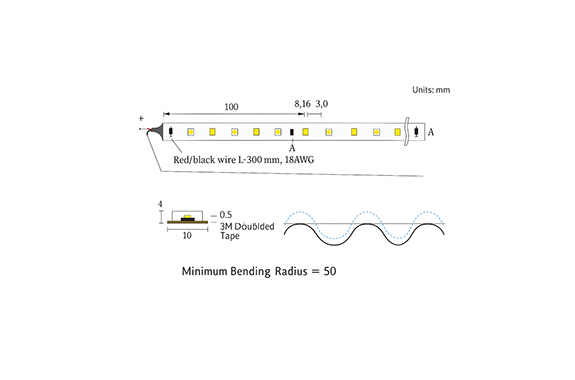

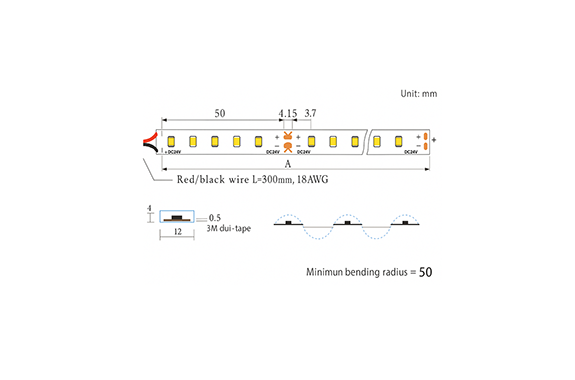

Main dimensions
| Model/Dimensions (mm) | A |
|---|---|
| N-LY60-S2835W65-W24-IP65 2M | 2000 |
| N-LY60-S2835W65-W24-IP65 5M | 5000 |
| N-LY60-S2835W30-W24-IP65 2M | 2000 |
| N-LY60-S2835W30-W24-IP65 5M | 5000 |
| N-LY60-S2835R-W24-IP65 2M | 2000 |
| N-LY60-S2835R-W24-IP65 5M | 5000 |
| N-LY60-S2835G-W24-IP65 2M | 2000 |
| N-LY60-S2835G-W24-IP65 5M | 5000 |
| N-LY60-S2835B-W24-IP65 2M | 2000 |
| N-LY60-S2835B-W24-IP65 5M | 5000 |
| Model/Dimensions (mm) | A |
|---|---|
| N-LY120-S2835W65-W24-IP65 2M | 2000 |
| N-LY120-S2835W65-W24-IP65 5M | 5000 |
| N-LY120-S2835W30-W24-IP65 2M | 2000 |
| N-LY120-S2835W30-W24-IP65 5M | 5000 |
| N-LY120-S2835R-W24-IP65 2M | 2000 |
| N-LY120-S2835R-W24-IP65 5M | 5000 |
| N-LY120-S2835G-W24-IP65 2M | 2000 |
| N-LY120-S2835G-W24-IP65 5M | 5000 |
| N-LY120-S2835B-W24-IP65 2M | 2000 |
| N-LY120-S2835B-W24-IP65 5M | 5000 |
