Nikki NLA50-A Series Stacked LED Alarm Light
Manufacturer: Nikki Co., Ltd.
Model: NLA50-A Series
Features
This laminated signal light has excellent resistance to oil mist, and the body is made of 66 nylon resin.

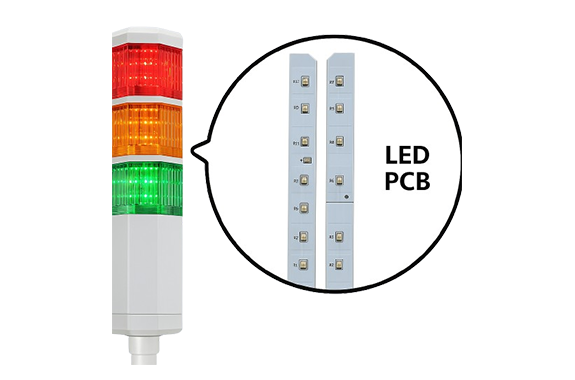

The LED units are red, yellow and green, and are bright, lightweight, low-cost and consume little power.
The globe is transparent and has high transmittance, making the display easy to see even from a distance.
Application Examples
Semiconductor manufacturing equipment, machine tools, FA equipment, parking lots, etc.
Pedestal Type
Specification
| Expected Life | Operating temperature 25℃ 60,000 hours *Life is the point at which the illuminance becomes 70% of the initial illuminance. |
|---|---|
| Operating temperature | -10℃ to 40℃ (but do not freeze) |
| Protection rating | IP53 |
| Power supply | DC24V |
| Material | Body: 66 nylon Gloves: polycarbonate |
| Cable | Plastic base specifications: 800mm (UL1007 x AWG22) L-shaped bracket specifications: 750mm (UL1007 x AWG22) Metal base specifications: 850mm (UL1007 x AWG22) Direct mounting specifications: 850 mm (UL1007 x AWG22) |
| Compliance standards |  |
| Option | Buzzer: 85dB (measured at 1m distance) Continuous sound or intermittent sound (approx. 58/min) can be selected |
NLA50-A Series

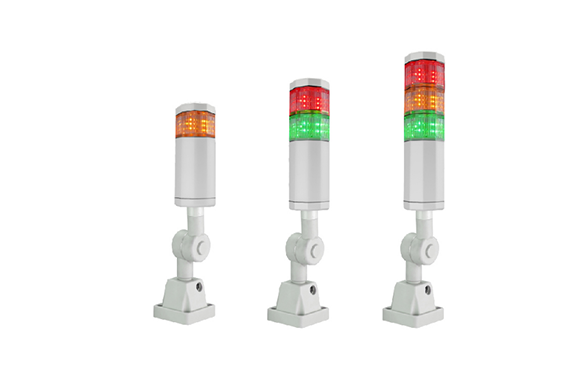

The number of stages can be selected from 1 to 3.
Despite its simple design and low price, it is bright and visible from any direction.
Model list
| Model | Number of steps | Pedestal | Power supply | Color | Power Consumption |
| NLA50DC-1B1D-A | 1st tier | Plastic base (foldable) | DC24V | AR(red) / AY(yellow) | 0.8W |
| NLA50DC-1B2D-A | L-shaped bracket | ||||
| NLA50DC-1B3D-A | Metal base (foldable) | ||||
| NLA50DC-1B4D-A | Metal pedestal | ||||
| NLA50DC-1B6D-A | Direct mounting | ||||
| NLA50DC-2B1D-A | 2 levels | Plastic base (foldable) | A (red/green) *Fixed colors | 1.4W | |
| NLA50DC-2B2D-A | L-shaped bracket | ||||
| NLA50DC-2B3D-A | Metal base (foldable) | ||||
| NLA50DC-2B4D-A | Metal pedestal | ||||
| NLA50DC-2B6D-A | Direct mounting | ||||
| NLA50DC-3B1D-A | 3 levels | Plastic base (foldable) | A (red, yellow, green) *Fixed colors | 2.4W | |
| NLA50DC-3B2D-A | L-shaped bracket | ||||
| NLA50DC-3B3D-A | Metal base (foldable) | ||||
| NLA50DC-3B4D-A | Metal pedestal | ||||
| NLA50DC-3B6D-A | Direct mounting |
Model selection method
| Model | Light-emitting surface | power supply | Number of steps | pedestal | Body color | Blink | buzzer | color | Gloves |
|---|---|---|---|---|---|---|---|---|---|

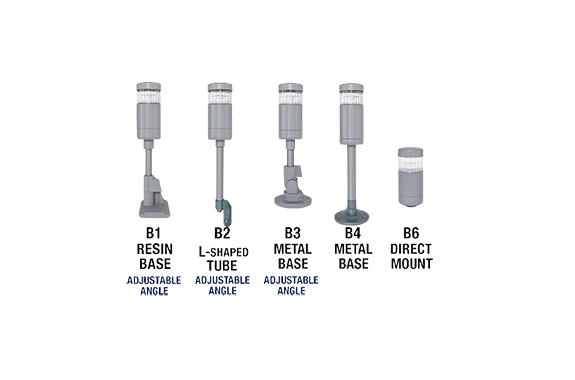

| NLA50 | No symbol= standard L= Large light emitting surface (3 stages only) | DC= DC 24V | 1 2 3 | B1= Resin base B2= L-shaped bracket B3= Metal base (foldable) B4= Metal Pedestal B6= Direct mount | D=Gray | No symbol= no blinking S= Flashing | No symbol= no buzzer Z=85db RZ= 85db intermittent sound HZ=95db | 1st stage AR=red / AY=yellow 2nd row | No symbol=Clear S= Milky white |
