Nikki Co., Ltd.

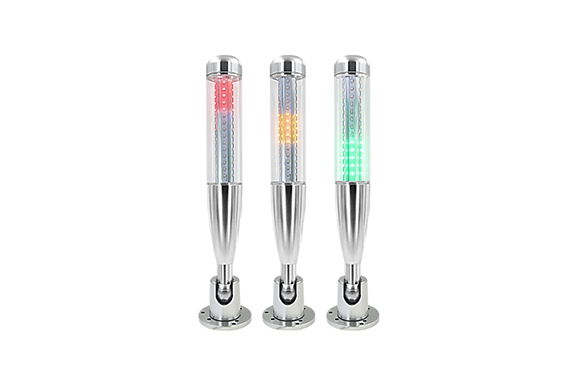

Nikki NLA50CJQ4 Series Crystal Type Stacked LED Alarm Light
Manufacturer: Nikki Co., Ltd.
Model: NLA50CJQ4 Series
Features

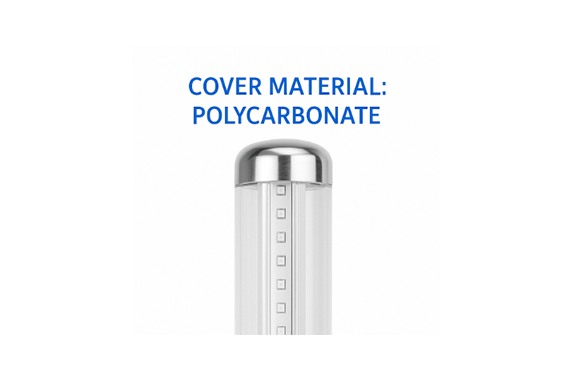

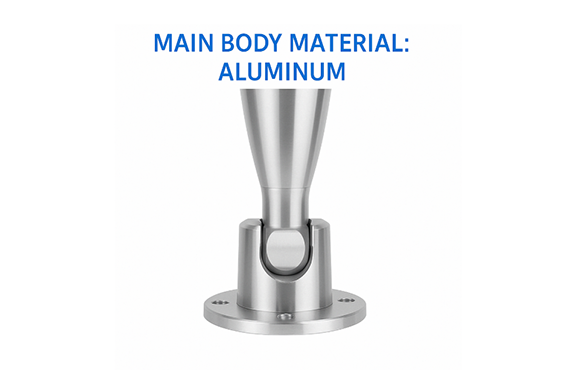

This laminated signal light has a globe material made of polycarbonate and a body material made of aluminum.

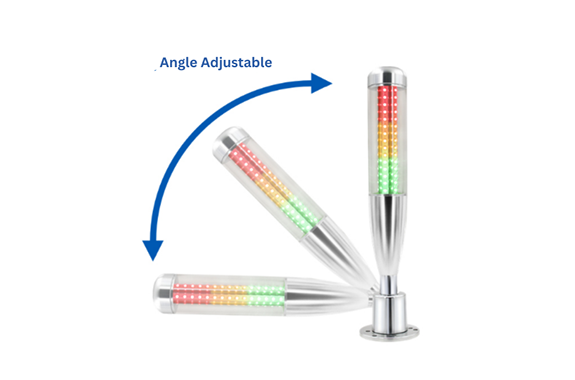

The angle of the base can be adjusted, so you can change the position of the light display.
The light-emitting surface can be seen from any direction 360°, allowing the status of the machine to be clearly identified.
The buzzer is 95db, so it can be used in noisy environments such as factories.
Application Examples
Semiconductor manufacturing equipment, FA equipment, 5-axis machine tools, parking lots, etc.
Specification
| Expected Life | Operating temperature 25℃ 60,000 hours *Life is the point at which the illuminance becomes 70% of the initial illuminance. |
|---|---|
| Operating temperature | -10℃ to 40℃ (but do not freeze) |
| Protection rating | IP50 |
| Material | Body: Aluminum Globe: Polycarbonate tube |
| Cable | 800mm (AWG24) |
| Compliance standards |  |
| Buzzer | 95db |
|---|
Standard Model List
| Model | power supply | Color | Power Consumption | Wiring |
NLA50CJQ4-3B3PHZ | DC24V | RYG (red yellow green) (fixed) | 3.2W | PNP |
NLA50CJQ4-3B3NHZ | NPN |

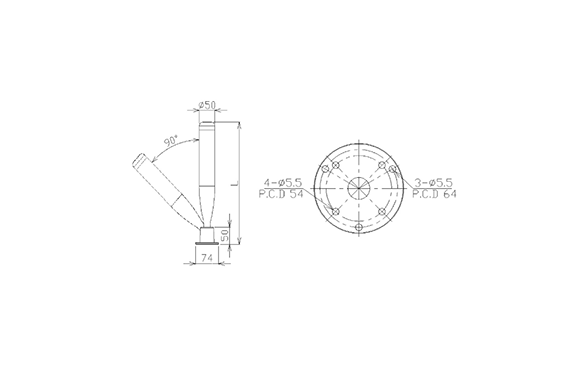

Main dimensions
| L part dimension table | |||||
|---|---|---|---|---|---|
| NLA50C | 3B3D | ||||
| L (mm) | 355 | ||||

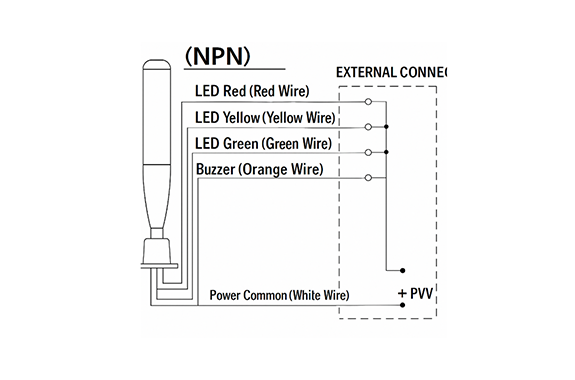

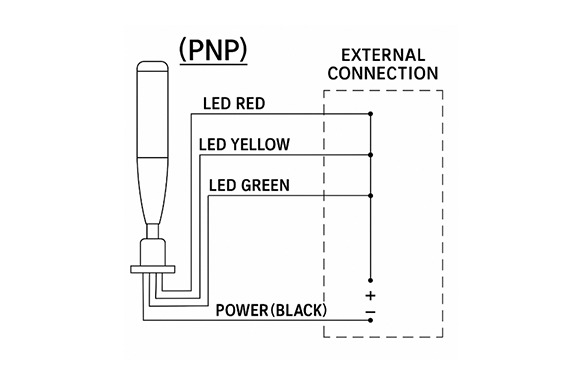

Wiring diagram
Signal line color correspondence table
| Corresponding signal line color | |
|---|---|
| Red light | red |
| Yellow light | yellow |
| Green light | green |
| buzzer | orange |
| Power common line | Black/White |
Model selection method
| Model | Number of steps | pedestal | wiring | buzzer | |
|---|---|---|---|---|---|
NLA50CJQ4 | – | 3= Red Yellow Green | B3= Standard | P= PNP N= NPN | HZ= With buzzer (95db) |
