Manufacturer: Nikki Co., Ltd.

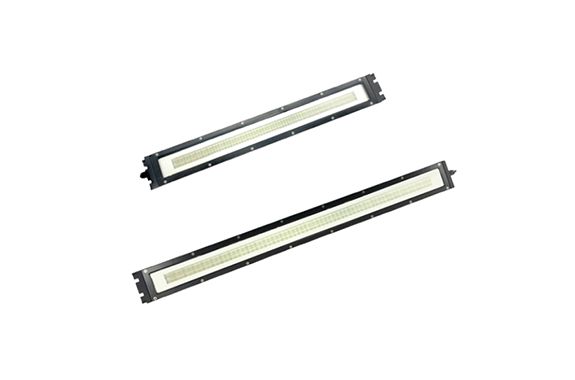

Model: NLE-SN2 Series

Features

The specially designed reflective structure enhances the light concentration, resulting in a light distribution angle of 50 degrees, improving the direct illumination.
In addition, a diffusion sheet is installed on the front to reduce reflections from the subject and produce soft, natural light without glare.
Thanks to the constant current IC circuit and uniquely designed protection circuit, it has a long life and high insulation properties.
The body is made of aluminum and the front is made of heat-treated glass, making it a sturdy design.

Application Examples

In-machine lighting for machine tools, industrial machinery lighting, facility machinery lighting, etc.

Specification

Color Temperature	5,700K
Body color	black
Expected Life	Operating temperature: 40℃ 40,000 hours *Life is determined when the illumination level drops to 70% of the initial illumination level.
Operating temperature	-10℃～40℃
Protection rating	IP67
power cable	3m (VCTF0.5mm2 x2C )
Compliance standards

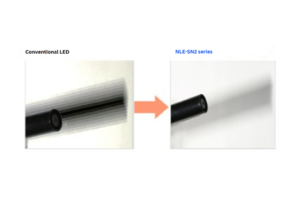

Comparison example between conventional LED and NLE-SN2 series

Conventional LED
When illuminating a shiny metallic surface, each LED produces streaks, which not only tire the eyes but also interfere with visual inspection and image confirmation.
NLE-SN2 series
Since the light illuminates the surface evenly, visual inspection and image confirmation can be performed without being affected by the light source, and eyes are not strained either.

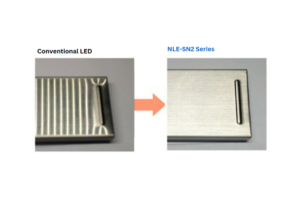

Conventional LED
Conventional products have the glare that is particular to LEDs, and not only are they difficult to see due to the multiple shadows they produce, but they also cause eye strain due to light reflections.
NLE-SN2 series
This product does not have multi-shadows, nor does it have the glare or strong light reflection that is typical of LEDs in conventional products, so your eyes will not get tired even when used for long periods of time.

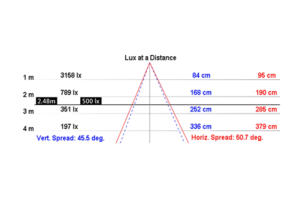

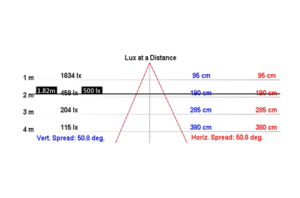

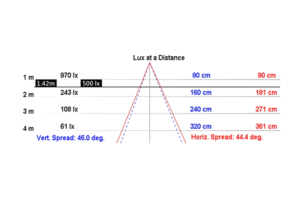

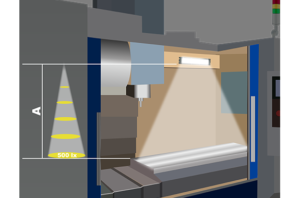

Illuminance simulation for NLE-SN2 series

*The JIS Z9110:2010 standard requires that the illuminance of the work surface in the workplace be 500lx or more to meet the work environment lighting standards.

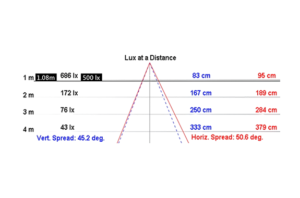

Illuminance Data

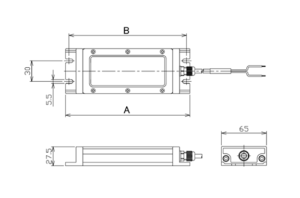

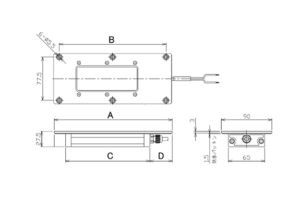

Standard Model List
