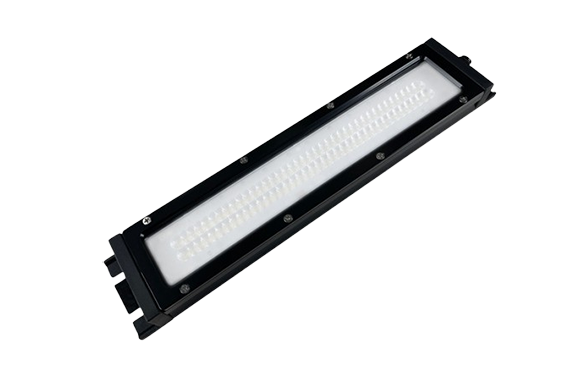

Nikki NLE-SN3 Series Flat Type
Manufacturer: Nikki Co., Ltd.
Model: NLE-SN3 Series
Features
Our proprietary special lens design increases the light distribution angle to 37 degrees, further improving the light concentration and greatly increasing the direct illumination.
In addition, there are no multi-shadows and flickering is kept to less than 2%
By using a constant current IC circuit and a uniquely designed protection circuit, we have achieved a long LED life and high insulation properties.
The body is made of aluminum and the front is made of tempered glass, making it a sturdy design that is difficult to break.
Application Examples
In-machine lighting for machine tools, industrial machinery lighting, facility machinery lighting, etc.
Specification
| Color Temperature | 5,700K |
|---|---|
| Body color | black |
| Expected Life | Operating temperature: 40℃ 40,000 hours *Life is determined when the illumination level drops to 70% of the initial illumination level. |
| Operating temperature | -10℃～40℃ |
| Protection rating | IP67 |
| power cable | 3m (VCTF0.5mm2 x2C ) |
| Compliance standards |  |
| option | Body color: Silver |
|---|---|
| Oil-resistant cable | |
| Fluorine packing | |
| Cable Cover | |
| Angle adjustment mounting bracket (ND-P01) | |
| Mounting magnet (ND-P04) | |
| AC/DC adapter (ND-PM243) + jack processing | |
| Cable with switch (ND-SW01) |
Comparison between conventional LED and NLE-SN3 series
Left: Conventional LED
When illuminating a shiny metallic surface, multiple shadows are generated by each LED, which not only causes eye fatigue but also interferes with visual inspection and image confirmation.

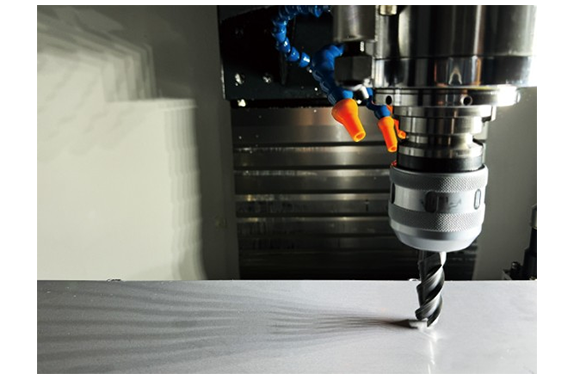

Right: NLE13SN3-DC
The uniform light illuminates the surface, allowing visual inspection and image confirmation without being affected by the light source, and also reduces eye fatigue.
Illuminance measurement of NLE13SN3-DC
Distance to workpiece of 500lx or more
| Model | distance |
|---|---|
| NLE13SN3-DC | 1.9m |
*The JIS Z9110:2010 standard requires that the illuminance of the work surface in the workplace be 500lx or more to meet the work environment lighting standards.

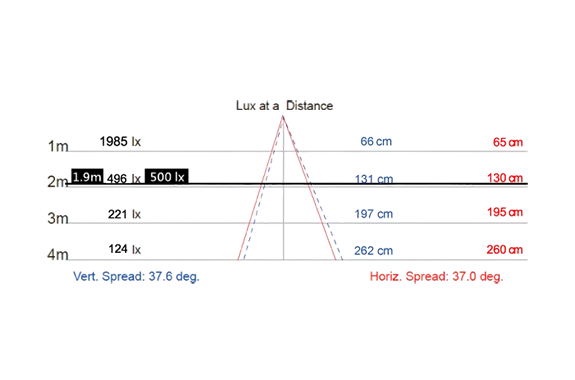

Illuminance Data
Illuminance data for NLE13SN3-DC
Standard Model List
| Model | Total luminous flux | Illuminance (1m) | power supply | Power Consumption |
| NLE13SN3-DC | 1,300lm | 1,900lx | DC24V | 9W |
| NLE26SN3-DC | 2,100lm | 3,150lx | 16W |
Main dimensions

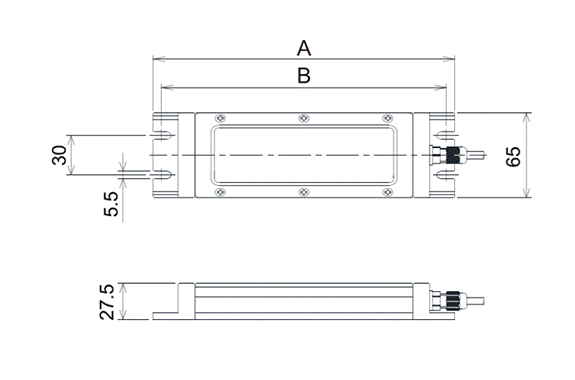

Standard
| Model/Dimensions (mm) | A | B |
|---|---|---|
| NLE13SN3 | 330 | 320 |
| NLE26SN3 | 530 | 520 |

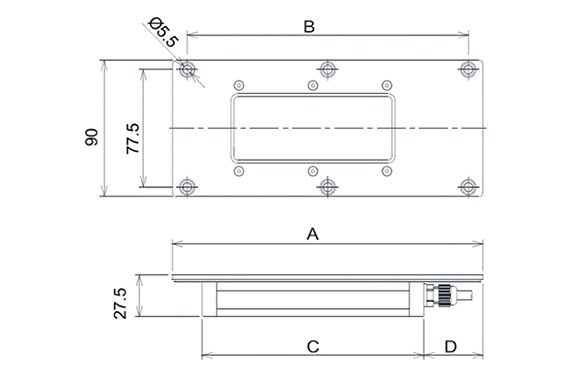

Flange Type
| Model/Dimensions (mm) | A | B | C | D |
|---|---|---|---|---|
| NLE13SNF3 | 360 | 340 | 300 | 40 |
| NLE26SNF3 | 560 | 540 | 500 | 35 |
Model selection method
| Model | size | Appearance | power supply | option | ||
|---|---|---|---|---|---|---|
| NLE |
| SN |
| 3 |
|
|
