Nikki Co., Ltd.
Nikki NLF Series Flat Type
Manufacturer: Nikki Co., Ltd.
Model: NLF Series
Features
By using a constant current IC circuit, we have achieved a constant brightness even when there are voltage fluctuations and a longer LED lifespan.
It has a uniquely designed protection circuit that can handle inrush currents, surges, and momentary power outages, and has high insulation properties, making it ideal for in-flight lighting.
A globally reliable manufacturer supplies the LEDs, and we make the body from aluminum with a tempered glass front, creating a sturdy design that is unlikely to break.
With a slim design of just 41mm wide, it is ideal for use in small spaces.
Application Examples
Small machine lighting, industrial machine lighting, facility machine lighting, etc.
Specification
| Color Temperature | 5,700K |
|---|---|
| Body color | black |
| Expected Life | Operating temperature: 40℃ 40,000 hours *Life is determined when the illumination level drops to 70% of the initial illumination level. |
| Operating temperature | -10℃～40℃ |
| Protection rating | IP67 |
| power cable | 3m (AWG26x2C) |
| Compliance standards |  |
| option | Body color: Silver |
|---|---|
| Oil-resistant cable | |
| Fluorine packing | |
| Cable Cover | |
| Angle adjustment mounting bracket (ND-P02) | |
| Mounting magnet (ND-P03) | |
| AC/DC adapter (ND-PM243) + jack processing | |
| Cable with switch (ND-SW01) |
Standard Model List
| Model | Total luminous flux | Illuminance (1m) | power supply | Power Consumption |
| NLF13C-DC | 850lm | 1,340lx | DC24V | 7W |
| NLF26C-DC | 1,510lm | 2,360lx | 13W | |
| NLF13S-DC | 550lm | 310lx | 8.5W | |
| NLF26S-DC | 1,130lm | 620lx | 17W |
Products marked with ◇ are made to order.
*The total luminous flux is the actual measured value.
*The total luminous flux value is for standard color (5700K).
Main dimensions
Standard
| Model/Dimensions (mm) | A | B |
|---|---|---|
| NLF13C/NLF13S | 330 | 320 |
| NLF26C/NLF26S | 590 | 580 |

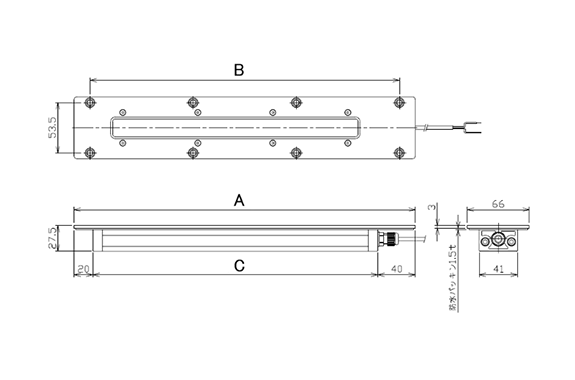

Flange Type
| Model/Dimensions (mm) | A | B | C |
|---|---|---|---|
| NLF13CF/NLF13SF | 364 | 330 | 304 |
| NLF26CF/NLF26SF | 624 | 600 | 564 |
Model selection method
| Model | size | LED | Appearance | power supply | Glass | lens | option |
|---|---|---|---|---|---|---|---|
| NLF | 13 26 | C = High Power LED type S = Mid Power LED type | No symbol = standard shape F = flange shape | DC = DC24V | No symbol= transparent glass S = Ground glass (diffusion type) | [When LED=C] No symbol = with lens [When LED=S] No symbol = no lens | Body color: Silver |
