Nikki Co., Ltd.
Nikki NLH Series High ceiling LED lighting
Manufacturer: Nikki Co., Ltd.
Model: NLH Series
Features
This is a high ceiling LED light that is oil mist resistant and applies the technology of the interior lighting in machine tools, which is one of our specialties.
It is completely waterproof (IP67) with reinforced glass on the front, and can be used in special environments where solvents and adhesives are used.
Our uniquely designed protection circuitry is able to withstand inrush currents, surges, and momentary power outages. In addition, our current isolation design diverts induced lightning surges, providing a safety design that protects products from lightning strikes and lightning discharges.
The natural light spread of the white LED with an illumination angle of 120° provides excellent heat dissipation and energy efficiency by combining an aluminum body with integrated heat dissipation fins and resin materials.
*When installing, be sure to attach the fall prevention wire.
Application Examples
Oil mist environments , factory lighting , warehouse lighting , etc.
Specification
| Color Temperature | 5,700K |
|---|---|
| Expected Life | Operating temperature 50℃ 40,000 hours *Life is the point at which the illuminance becomes 70% of the initial illuminance |
| Operating temperature | -10℃ to 50℃ (but do not freeze) |
| Environmental Humidity | 10% to 90% |
| Protection rating | IP67 (Light body only, excluding E39 cap) |
| power cable | 0.5m (HL, FL only) Others do not include cables |
| Power supply unit | NLH60S/110C – External power supply NLH150S/200C – Built-in power supply |
| Compliance standards |  (integrated type)  (separate type) |

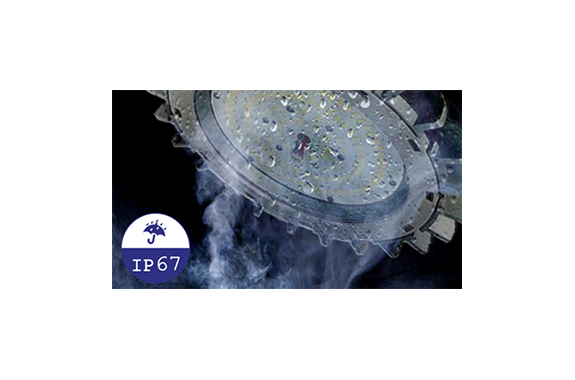

Oil mist compatible
It can be used safely in factories where oil mist is generated or where solvents, adhesives, etc. are used.
As it is completely waterproof, oil mist will not get into the device and deteriorate the LED power supply.
Thorough lightning protection
The current-isolating design quickly diverts induced lightning surges, protecting products from lightning strikes. (It can discharge up to 10kA with a surge waveform of 8/20μs.)
When lightning strikes or lightning discharges occur, induced lightning surges occur in power lines, destroying many electronic devices. This product has a built-in lightning surge protection element.
±6kV between lines, ±15kV to earth (
3 times the international standard, 3.75 times the international standard)
SPD (Lightning Protection Device)
This LED floodlight is protected by limiting sudden, violent current fluctuations (surges) caused by lightning and other events.
A typical lightning strike generates a surge of several tens of kV or more, but this LED floodlight has an SPD installed between the power supply IC and ground, so that even if a lightning surge enters the building during a lightning surge, it is discharged from the SPD to ground.
*When installing, be sure to ground the product.
The role of constant current circuits
If a surge occurs in the power supply, the surge protection circuit will protect the LED.
If the DC power supply is not fully rectified, AC waves will remain and cause flickering.
Once fully rectified, there will be no flicker.
Flickering can cause eye fatigue
If rectification is incomplete, slight AC waves will remain, causing flickering.
Flickering can cause eye fatigue.
Role of the constant current circuit ①
With a built-in constant current circuit, a constant current always flows through the LED, even if there is a sudden voltage rise (surge).
This ensures that the brightness remains constant at all times. In addition, as the current does not exceed the rated value, deterioration of the LED is prevented, resulting in a longer lifespan.
Role of constant current circuit ②
By removing the waves in the AC, the resulting current is rectified, eliminating flicker and causing less eye fatigue even when used for long periods of time.
Standard Model List
| Model | Total luminous flux | Color rendering | Power Consumption | Input voltage | power supply | weight |
| NLH60S-E39 | 5,350lm | Ra80 | 63W | AC100-240V | Separate type (185L x 56W x 37.5H) | 1.9kg |
| NLH60S-FL | 2.8kg | |||||
| NLH60S-HL | 2.4kg | |||||
| NLH60S-HL2 | Integrated | 3.4kg | ||||
| NLH110C-E39 | 13,700lm | 113W | Separate type (258L x 68W x 40H) | 1.9kg | ||
| NLH110C-FL | 2.8kg | |||||
| NLH110C-HL | 2.4kg | |||||
| NLH110C-HL2 | Integrated | 3.8kg | ||||
| NLH150S-FL | 18,600lm | 156W | Integrated | 9kg | ||
| NLH150S-HL | ||||||
| NLH150S-HL2 | 10kg | |||||
| NLH200C-FL | 25,400lm | 198W | 10kg | |||
| NLH200C-HL | ||||||
| NLH200C-HL2 |
*Products with frosted front glass are also available. The model number has the symbol “-S” at the end.
Main dimensions
NLH60S-E39 / NLH110C-E39
NLH60S-FL / NLH110C-FL
NLH150S-FL / NLH200C-FL
NLH60S-HL / NLH110C-HL
NLH150S-HL / NLH200C-HL
NLH60S-HL2
NLH110C-HL2
NLH150S-HL2 / NLH200C-HL2
List of main illuminance levels
NLH60S / NLH110C
| Distance / Model | NLH60S | NLH110C |
|---|---|---|
| 3m | 211lx | 535lx |
| 4m | 119 lx | 301lx |
| 5m | 76lx | 194 lx |
| 6m | 52 lx | 134lx |
NLH150S / NLH200C
| Distance / Model | NLH150S | NLH200C |
|---|---|---|
| 3m | 693 lx | 969 lx |
| 4m | 390lx | 545 lx |
| 5m | 249 lx | 349 lx |
| 6m | 173 lx | 242 lx |
| 7m | 127 lx | 178lx |
| 8m | 97 lx | 136lx |
Comparison of power consumption and electricity charges
Calculation conditions: 12 hours/day, 25 days/month, electricity rate 28.33 yen (per kWh)
| High pressure sodium lamp | NLH60S | |
|---|---|---|
| Power Consumption | 250W x 48 units | 63W x 48 units |
| Expected Life | 12,000 hours | 40,000 hours |
| Electricity usage (year) | 1,223,856 yen | 308,411 yen |
Usage Example
Factory Area
Space: 20m x 30m
Height: 6m
Installation conditions (floor surface)
6 x 8 units
Calculation conditions: 12 hours/day, 25 days/month, electricity rate 28.33 yen (per kWh)
| High pressure sodium lamp | NLH110C | |
|---|---|---|
| Power Consumption | 500W x 15 units | 113W x 15 units |
| Expected Life | 12,000 hours | 40,000 hours |
| Electricity usage (year) | 764,910 yen | 172,869 yen |
Usage Example
Factory Area
Space: 20m x 30m
Height: 9.5m
Installation conditions (floor surface)
3 x 5 units
Model selection method
| Model | Size | Base Shape | Glass |
|---|---|---|---|
| NLH |
|
|
|
