Nikki Co., Ltd.

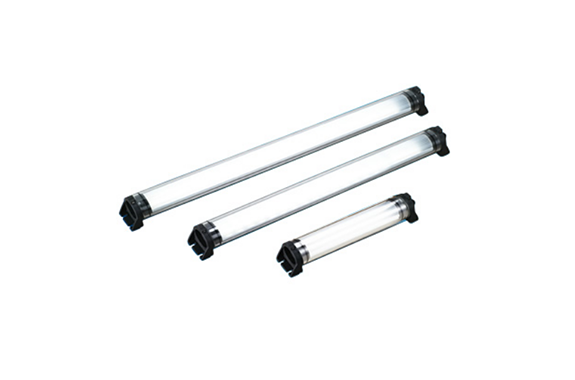

Nikki NLM Series Cylindrical Waterproof LED Light

Manufacturer: Nikki Co., Ltd.
Model: NLM Series
Features
The housing is made of a highly light-transmitting glass tube, and the strong bracket made of glass fiber is used, resulting in a robust design.
By using a constant current IC circuit, it maintains a constant brightness even with voltage fluctuations, eliminates flickering, and also extends the LED’s lifespan.
It has a uniquely designed protection circuit that can handle inrush currents, surges, and momentary power outages, and has high insulation properties, making it ideal for in-flight lighting.
The LEDs are supplied by globally reliable manufacturers.
Application Examples
In-machine lighting for machine tools, industrial machinery lighting, facility machinery lighting, etc.
Specification
Color Temperature | 5,700K |
---|---|
Expected Life | Operating temperature: 40℃ 40,000 hours *Life is determined when the illumination level drops to 70% of the initial illumination level. |
Operating temperature | DC: -10℃ to 40℃ AC: -10℃ to 40℃ (but do not freeze) |
Outer Tube Material | Glass tube |
Protection rating | IP67 |
power cable | DC: 3m (VCTF0.5mm 2 x2C) AC: 3m (VCTF0.75mm 2 x2C) |
Compliance standards | ![]() |
option | Outer tube material: Polycarbonate tube |
---|---|
Oil-resistant cable | |
Fluorine packing | |
Cable Cover | |
Metal mounting bracket (NC-562B) | |
Mounting magnet (ND-P04) | |
2m cable with plug (2M+P) |
Standard Model List
Model | power supply | Total luminous flux | Illuminance (1m) | Power Consumption |
NLM10SG-DC | DC24V | 1,230lm | 370lx | 8W |
NLM10SG-AC | AC100-240V | 1,240lm | 360lx | 8W |
NLM20SG-DC | DC24V | 2,490lm | 760 lx | 18W |
NLM20SG-AC | AC100-240V | 2,330lm | 700lx | 16W |
NLM30SG-DC | DC24V | 3,730lm | 1,120lx | 27W |
NLM30SG-AC | AC100-240V | 3,410lm | 1,040lx | 26W |
NLM40SG-DC | DC24V | 5,000lm | 1,480lx | 37W |
NLM40SG-AC | AC100-240V | 4,680lm | 1,400lx | 33W |
*For a 2m cable with plug, please specify (2M+P) at the end of the model number. Compatible power supply is AC100-120V.

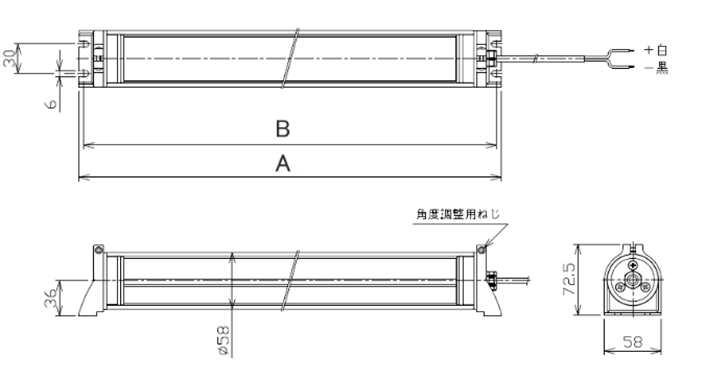

Main dimensions
Standard
Model/Dimensions (mm) | A | B |
---|---|---|
NLM10SG-DC/AC | 310 | 300 |
NLM20SG-DC/AC | 500 | 490 |
NLM30SG-DC/AC | 690 | 680 |
NLM40SG-DC/AC | 880 | 870 |
Model selection method
Model | size | Outer tube | power supply | option |
---|---|---|---|---|
NLM | 10S 20S 30S 40S | G = Glass P = Polycarbonate | DC = DC24V AC = AC100-240V *Please use a single-phase AC power source. | Polycarbonate Tube |
