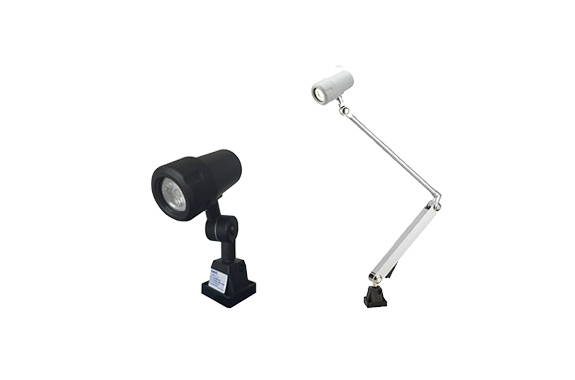

Nikki NLS-03C Series Waterproof LED Spotlight
Manufacturer: Nikki Co., Ltd.
Model: NLS-03C Series
Features
The NLS-03 series has a body made of nylon resin, which is highly shock resistant and has excellent insulation properties.
The LED power supply uses a constant current IC circuit, which maintains a constant brightness even with voltage fluctuations, eliminates flickering, and also extends the LED’s lifespan.
It has a uniquely designed protection circuit that can handle inrush currents, surges, and momentary power outages, and its high insulation properties make it ideal for in-flight lighting.
The LEDs are supplied by globally reliable manufacturers.
Application Examples
Industrial machine lighting, facility machine lighting, appearance inspection lighting, etc.
Specification
| Color Temperature | 5,700K |
|---|---|
| Expected Life | Operating temperature: 40℃ 40,000 hours *Life is determined when the illumination level drops to 70% of the initial illumination level. |
| Operating temperature | -10℃ to 40℃ (but do not freeze) |
| Protection rating | IP65 (inside the head case only) |
| Power cable | 3m (VCTF0.75mm2 x2C ) |
| Compliance standards |  |
| Option | Oil-resistant cable |
|---|---|
| Color temperature 4000K (4000K) | |
| L-shaped mounting bracket (AL-23) | |
| Clamp mounting bracket (AL-28B) | |
| Touch Sensor (TS) | |
| 2m cable with plug (2M+P) |
Standard Model List
| Model | drawing | Total luminous flux | Illuminance (1m) | Power Consumption |
| NLSS03C-DC | DC24V | 510lm | 1,780lx | 5W |
| NLSS03C-AC | AC100V | |||
| NLSM03C-DC | DC24V | |||
| NLSM03C-AC | AC100V |
Main dimensions

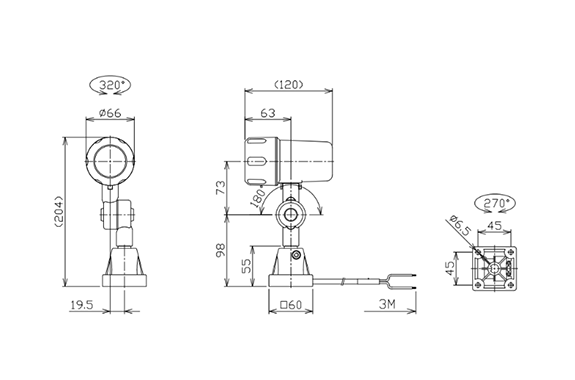

NLSS03-DC/AC

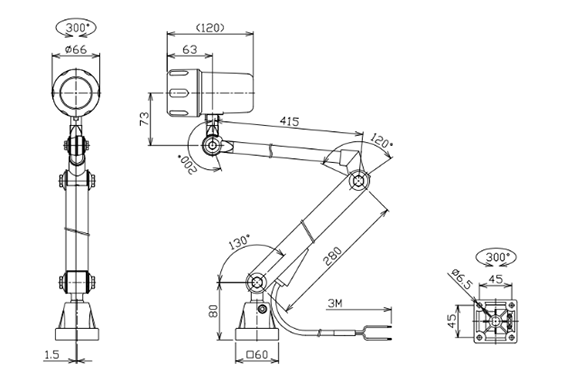

NLSM03-DC/AC
Model selection method
| Model | Arm length | size | Arm Type | power supply | option |
|---|---|---|---|---|---|
| NLS | S= No arms M= Medium Arm | 03C | [Arm length M only]No code = Square pipe (resin base) (415x280mm) | DC= DC24V AC= AC100V *Please use a single-phase AC power source. | Oil-resistant cable Color temperature 4000K (4000K) L-shaped mounting bracket (AL-23) Clamp mounting bracket (AL-28B) Touch Sensor (TS) 2m cable with plug (2M+P) *Compatible power supply is AC 100V only. *When selecting, please specify (2M+P) at the end of the model name. |
