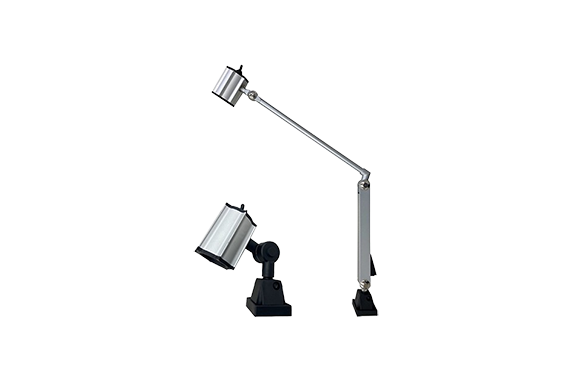

Nikki NLS-05C Series Waterproof LED Spotlight
Manufacturer: Nikki Co., Ltd.
Model: NLS-05C Series
Features
The NLS-05 series has an aluminum body, good heat dissipation, and a robust design.
By using a constant current IC circuit, it maintains a constant brightness even with voltage fluctuations, eliminates flickering, and also extends the LED’s lifespan.
It has a uniquely designed protection circuit that can handle inrush currents, surges, and momentary power outages, and its high insulation properties make it ideal for in-flight lighting.
The LEDs are supplied by globally reliable manufacturers.
Application Examples
Industrial machine lighting, facility machine lighting, appearance inspection lighting, etc.
Specification
| Color Temperature | 5,700K |
|---|---|
| Expected Life | Operating temperature: 40℃ 40,000 hours *Life is determined when the illumination level drops to 70% of the initial illumination level. |
| Operating temperature | -10℃ to 40℃ (but do not freeze) |
| Protection rating | IP67 (inside the head case only) |
| Power cable | 3m (VCTF0.75mm2 x2C ) |
| Compliance standards |  |
| Option | Oil-resistant cable |
|---|---|
| Color temperature 4000K (4000K) | |
| L-shaped mounting bracket (AL-23) | |
| Clamp mounting bracket (AL-28B) | |
| 2m cable with plug (2M+P) |
Standard Model List
| Model | power supply | Total luminous flux | Illuminance (1m) | Power Consumption |
| NLSS05C-DC | DC24V | 510lm | 1,780lx | 5W |
| NLSS05C-AC | AC100V | |||
| NLSM05C-DC | DC24V | |||
| NLSM05C-AC | AC100V | |||
| NLSL05C-DC | DC24V | |||
| NLSL05C-AC | AC100V |
*For a 2m cable with a plug, please specify (2M+P) at the end of the model number. Compatible power source is AC100V.
Main dimensions

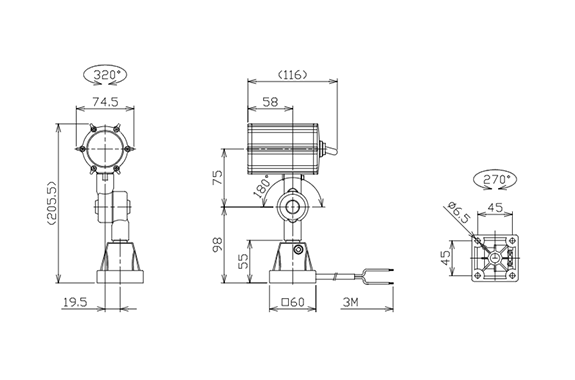

NLSS05-DC/AC

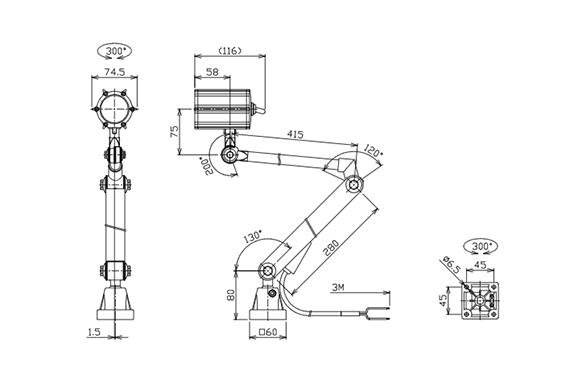

NLSM05C-DC/AC (square pipe)

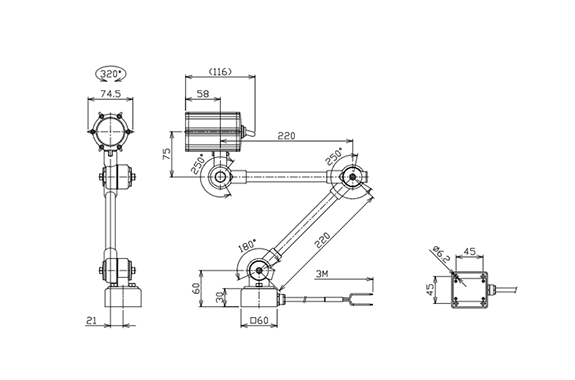

NLSM05CP-DC/AC (round pipe)
NLSL05C-DC/AC (square pipe)
NLSL05CP-DC/AC (round pipe)
Model selection method
| Model | Arm length | Size | Arm Type | Power supply | Option |
|---|---|---|---|---|---|
| NLS | S= No arms | 05C | [Arm length: M, L only] No code= Square pipe (resin base)(M: 415x280mm) | DC = DC24V | Oil-resistant cable |
