Nikki NLS-12,30A Series Signage Lighting Waterproof LED Spotlight
Manufacturer: Nikki Co., Ltd.
Model: NLS-12,30A Series
Features
By shining light on outdoor advertising billboards, you can attract customers and increase your advertising effectiveness.
We build the head case from die-cast aluminum and construct the arm using stainless steel. To enhance durability, we apply a weather-resistant coating, which transforms the spotlight into a sturdy and virtually unbreakable product. Additionally, we design the system to quickly divert induced lightning surges, thereby effectively protecting it from lightning strikes.
Thanks to this feature, you can install it outdoors with complete confidence, regardless of weather conditions.
Furthermore, to ensure both reliability and performance, we source the LEDs from globally trusted manufacturers, thereby guaranteeing long-lasting operation and consistent quality.
Application Examples
Advertising sign lighting, outdoor lighting, etc.
Specification
| Color Temperature | 5,700K |
|---|---|
| Material | The head case is made of aluminum and the arm is made of stainless steel. |
| Expected Life | Operating temperature: 40℃ 40,000 hours *Life is determined when the illumination level drops to 70% of the initial illumination level. |
| Operating temperature | -10℃ to 40℃ (but do not freeze) |
| Protection rating | IP67 (inside head case only) |
| power cable | 1.5m (2PNCT0.75mm 2 x 3C) |
|---|---|
| Light distribution angle | 120° |
| Option | Mounting bracket (vertical) |
| Mounting bracket (horizontal) | |
| Beam angle: 25°/40° |
Outdoor permanent installation
Outdoor Cable
The cable used is 2PNCT0.75mm2 x3C . Also known as a rubber cab-tyre cable, it is characterized by its resistance to heat and cold when used outdoors.
It is also weather and water resistant, making it suitable for outdoor use.
Weather Resistant Coating
The head case and arm are coated with a weather-resistant coating.
The coating is an acrylic powder coating, which is highly durable due to its excellent hardness. It also has improved durability to prevent deterioration due to ultraviolet rays.
This makes it possible to install the unit outdoors permanently while keeping costs down.
Installation Method
Arm length
You can choose from S/M/L.
| size | length |
|---|---|
| S | Without arms |
| M | 160mm |
| L | 760mm |
Arm Introduction
Mounting bracket
In addition to the standard type, there are horizontally fixed and vertically fixed types.
Arm Material
The material is stainless steel, which is resistant to rust even when left outdoors for long periods of time, and the exterior is painted with weather-resistant paint.
Arm allowable wind speed data
Testing according to JIS C 8105-2-5:2017 5.6.5.1
| Model | Pressure-receiving area of lighting fixture | Mounting bracket | Design allowable wind speed |
|---|---|---|---|
| NLS12A | 0.01m2 | standard | 60m/s |
| Horizontal | 60m/s | ||
| vertical | 60m/s | ||
| NLS30A | 0.03m2 | standard | 60m/s |
| Horizontal | 60m/s | ||
| vertical | 60m/s |
*The equivalent wind speed listed in this table refers to the average wind speed over a 10-minute period.
Angle adjustment
Vertical angle adjustment
By loosening the knob, you can adjust the vertical irradiation direction in 10° increments (180°).*When fixing, use a wrench to tighten the knob.
*When adjusting the angle, bend the cable slightly to avoid putting strain on it.

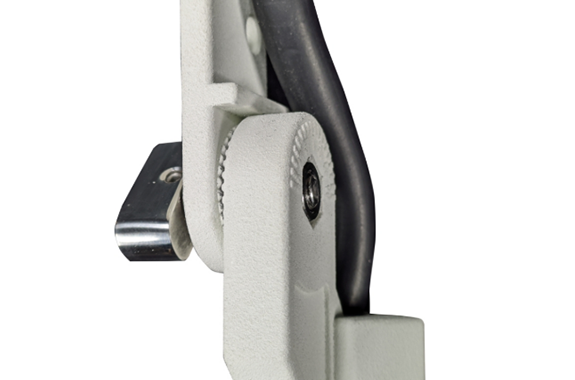

Anti-rotation
The angle adjustment part is fixed with a ratchet mechanism to prevent rotation, so it can be used safely even when installed outdoors.Horizontal angle adjustment
You can adjust the horizontal irradiation direction by loosening the rotation adjustment bolt.*After adjusting the angle, tighten using a hex wrench.
Illuminance Simulation
[Example: For a signboard 29m wide and 5m high]
If six units are installed at 5m intervals, the surface that receives the most light will receive 500lx, brightening the entire signboard and increasing its advertising effectiveness.
The illuminance simulation is created based on the brightness of the lighting according to the size of the actual billboard.
The number of lights to be installed and the distance between them can be customized according to your illuminance requirements, so please contact us.
Recommended illuminance for sign lighting
| Reflection on the sign surface | When the surroundings are bright | When the surroundings are dark |
|---|---|---|
| When reflection is high | 500lx | 200lx |
| When reflection is low | 1000lx | 500lx |
*When installing lighting on outdoor advertising billboards, please take into consideration reflections on the sign’s surface.
*If there are people passing by nearby, please consider the placement and angle of illumination.
Illuminance Data
NLS-12A
Light distribution angle: 25°
Light distribution angle: 40°
Beam angle 120° (without lens)
NLS-30A
Light distribution angle: 25°
Light distribution angle: 40°
Beam angle 120° (without lens)

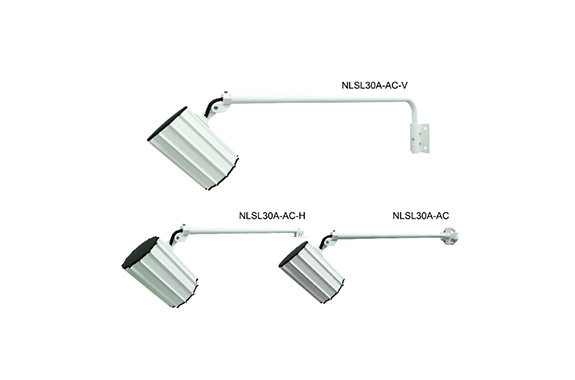

NLS-A Standard Model List
Model | Full beam | Illuminance (1m) | Adapter | Electric Power Consumption | ||
| 25° | 40° | 120° | ||||
| NLSS12A-AC | 900 lm | 3,470 lx | 1,200 lx | 400 lx | AC100-240V | 10W |
| NLSM12A-AC | ||||||
| NLSL12A-AC | ||||||
| NLSL12A-AC-V | ||||||
| NLSL12A-AC-H | ||||||
| NLSS30A-AC | 3,100 lm | 9,600 lx | 4,480 lx | 1,310 lx | 30W | |
| NLSM30A-AC | ||||||
| NLSL30A-AC | ||||||
| NLSL30A-AC-V | ||||||
| NLSL30A-AC-H | ||||||
Main dimensions
NLSS/M/L12A-AC
| Model | A | B | C |
|---|---|---|---|
| NLSS12A-AC | 240 | 130 | 75 |
| NLSM12A-AC | 390 | ||
| NLSL12A-AC | 990 |
NLSS/M/L30A-AC
| Model | A | B | C |
|---|---|---|---|
| NLSS30A-AC | 300 | 200 | 130 |
| NLSM30A-AC | 450 | ||
| NLSL30A-AC | 1050 |
Model Selection Method
| Model | Arm length | size | Power Supply | Mounting bracket | Light distribution angle |
|---|---|---|---|---|---|
| NLS |
|
|
|
|
|
