Nikki Co., Ltd.

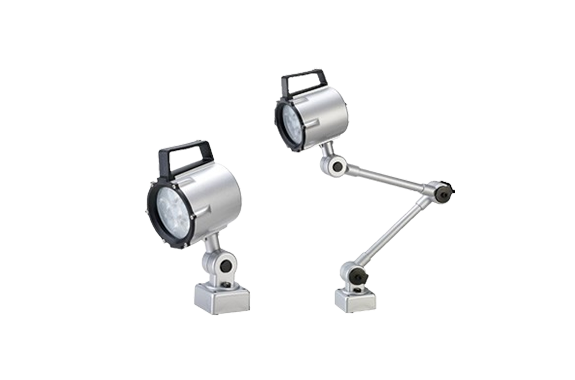

Nikki NLS-15, 18C Series Waterproof LED Spotlight
Manufacturer: Nikki Co., Ltd.
Model: NLS-15, 18C Series
Features
The NLS-15/NLS-18 series uses aluminum for the body and tempered glass on the front, making it a sturdy design that is difficult to break.
It can also be used as a replacement for conventional halogen lamps.
By using a constant current IC circuit, it maintains a constant brightness even with voltage fluctuations, eliminates flickering, and also extends the LED’s lifespan.
It has a uniquely designed protection circuit that can handle inrush currents, surges, and momentary power outages, and its high insulation properties make it ideal for in-flight lighting.
The LEDs are supplied by globally reliable manufacturers.
Application Examples
Industrial machine lighting, facility machine lighting, appearance inspection lighting, etc.
Specification
| Color Temperature | 5,700K |
|---|---|
| Expected Life | Operating temperature: 40℃ 40,000 hours *Life is determined when the illumination level drops to 70% of the initial illumination level. |
| Operating temperature | -10℃ to 40℃ (but do not freeze) |
| Protection rating | IP67 (inside the head case only) |
| power cable | 3m (VCTF0.75mm2 x2C ) |
| Compliance standards |  |
| Option | Oil-resistant cable |
|---|---|
| Color temperature 4000K (4000K) | |
| L-shaped mounting bracket (AL-23) | |
| Clamp mounting bracket (AL-28B) | |
| 2m cable with plug (2M+P) |
NLS-15 Standard Model List
| Model | power supply | Total luminous flux | Illuminance (1m) | Power Consumption |
| NLSS15C-DC | DC24V | 770lm | 4,160lx | 7W |
| NLSS15C-AC | AC100V | |||
| NLSM15CP-DC | DC24V | |||
| NLSM15CP-AC | AC100V | |||
| NLSL15CP-DC | DC24V | |||
| NLSL15CP-AC | AC100V |
*For a 2m cable with a plug, please specify (2M+P) at the end of the model number. Compatible power source is AC100V.
NLS-18 Standard Model List
| Model | power supply | Total luminous flux | Illuminance (1m) | Power Consumption |
| NLSS18C-DC | DC24V | 1,200lm | 6,760 lx | 9W |
| NLSS18C-AC | AC100V | |||
| NLSM18CP-DC | DC24V | |||
| NLSM18CP-AC | AC100V | |||
| NLSL18CP-DC | DC24V | |||
| NLSL18CP-AC | AC100V |
*For a 2m cable with a plug, please specify (2M+P) at the end of the model number. Compatible power source is AC100V.
Main dimensions

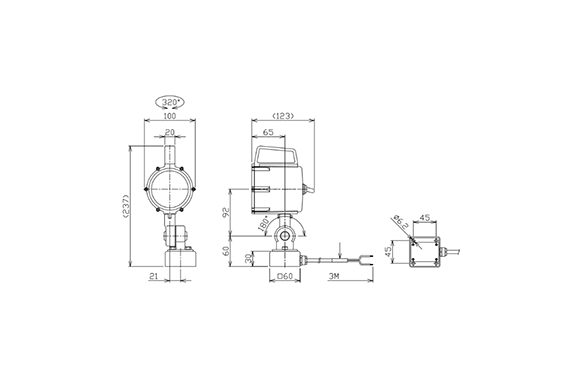

NLSS15C-DC/AC

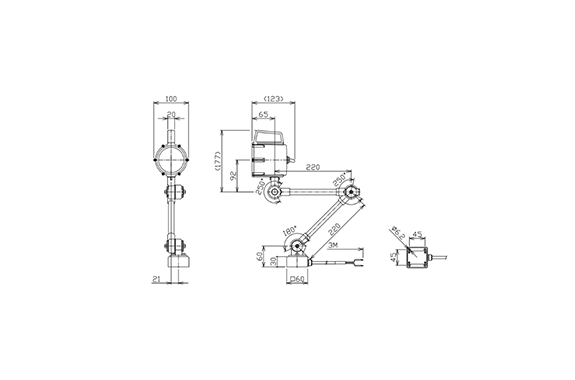

NLSM15C-DC/AC

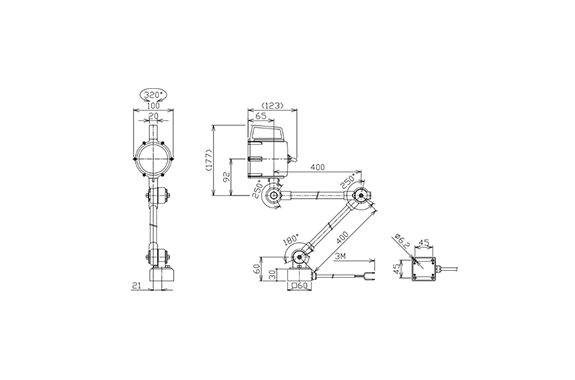

NLSL15C-DC/AC
Model selection method
| Model; | Arm length | size | Arm Type | power supply | option |
|---|---|---|---|---|---|
| NLS | S= No arms M= Medium Arm L= Long Arm | 15C 18C | [Arm length: M, L only]P= Round pipe (metal base) (M: 220x220mm) (L: 400x400mm) | DC= DC24V AC= AC100V *Please use a single-phase AC power source. | Oil-resistant cable Color temperature 4000K (4000K) L-shaped mounting bracket (AL-23) Clamp mounting bracket (AL-28B) 2m cable with plug (2M+P) *Compatible power supply is AC 100V only. *When selecting, please specify (2M+P) at the end of the model name. |
