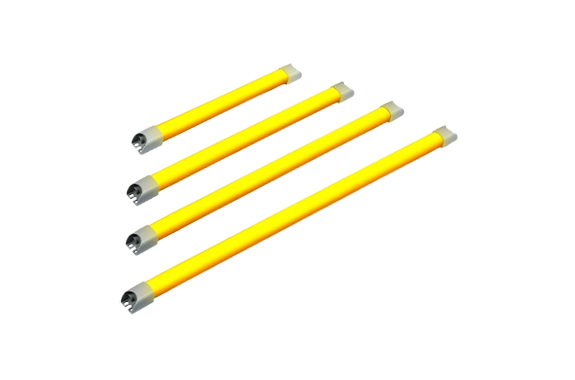

Nikki NLT3 Series Yellow Light Slim Waterproof LED light
Manufacturer: Nikki Co., Ltd.
Model: NLT3 Series Yellow Light
Features
Photolithography is an essential process in the semiconductor manufacturing process.
The wafer is coated with photoresist and then subjected to etching and doping processes.
The NLT3-591nm series emits light at a wavelength to which photoresist does not react, making it suitable for illuminating equipment before and after the photolithography process in semiconductor manufacturing.
Application Examples
Semiconductor equipment lighting, IC factory lighting, clean rooms, yellow rooms, etc.
Specification
LED Wavelength | 591nm |
| Expected Life | Operating temperature: 40℃ 40,000 hours *Life is determined when the illumination level drops to 70% of the initial illumination level. |
Operating temperature | -10℃ to 40℃ (but do not freeze) |
Protection rating | IP65 |
| power cable | 3m (AWG26x2C) |
| option | Mounting magnet (ND-P03) |
*Please consult us in advance regarding the order lot.
Standard Model List
| Model | Total luminous flux | Illuminance (1m) | power supply | Power Consumption |
| NLT3-05-DC-S(591nm) | 120lm | 35lx | DC24V | 2.5W |
| NLT3-10-DC-S(591nm) | 300lm | 80lx | 3.8W | |
| NLT3-20-DC-S(591nm) | 610lm | 160lx | 8W | |
| NLT3-30-DC-S(591nm) | 930lm | 230lx | 12W | |
| NLT3-40-DC-S(591nm) | 1,240lm | 310lx | 16W |

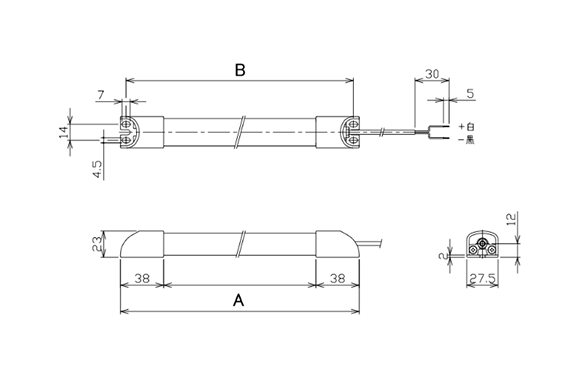

Main dimensions
| Model/Dimensions (mm) | A | B |
|---|---|---|
| NLT3-05-DC-S | 210 | 200 |
| NLT3-10-DC-S | 330 | 320 |
| NLT3-20-DC-S | 580 | 570 |
| NLT3-30-DC-S | 830 | 820 |
| NLT3-40-DC-S | 1080 | 1070 |
| NLT3-50-DC-S | 1340 | 1330 |
