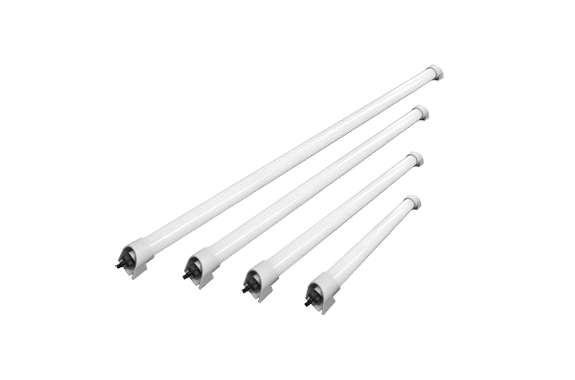

Nikki NLT4 Series Slim Waterproof LED light
Manufacturer: Nikki Co., Ltd.
Model: NLT4 Series
Features
DOB technology places the LED and power circuit on the same board, making the product slimmer and more affordable than previous series.
The milky white cover provides uniform light emission and reduces glare.
The uniquely designed protection circuit provides excellent insulation.
Application Examples
Low temperature environment lighting, control panel lighting, indoor lighting, refrigerated warehouse lighting, freezer warehouse lighting, etc.
Specification
| Color Temperature | 5,700K |
|---|---|
| Expected Life | Operating temperature 25℃ 60,000 hours *Life is the point at which the illuminance becomes 70% of the initial illuminance. |
| Operating temperature | -40℃ to 40℃ (but do not freeze) *Please use silicone cable below -20℃ |
| Protection rating | IP65 |
| Power cable | 3m (VCTF0.75mm2 x2C ) |
| Compliance standards |  |
| Cover | Milky white |
| Option | Transparent cover |
|---|---|
| Mounting magnet (ND-P03) | |
| L-shaped mounting bracket (ND-P07) | |
| Hanging bracket (ND-P09) | |
| 2m cable with plug (2M+P) | |
| Silicon Cable |
Standard model list
Milky white
| Model | Total luminous flux | Illuminance (1m) | power supply | Power Consumption |
| NLT4-10-AC-S | 380lm | 80lx | AC100/200V | 3.2W |
| NLT4-20-AC-S | 790lm | 170lx | 6.4W | |
| NLT4-30-AC-S | 1,190lm | 260lx | 9.6W | |
| NLT4-40-AC-S | 1,620lm | 360lx | AC100V | 12W |
Transparent
| Model | Total luminous flux | Illuminance (1m) | power supply | Power Consumption |
| NLT4-10-AC | 480lm | 160lx | AC100/200V | 3.2W |
| NLT4-20-AC | 960lm | 310lx | 6.4W | |
| NLT4-30-AC | 1,480lm | 460lx | 9.6W | |
| NLT4-40-AC | 1,970lm | 590 lx | AC100V | 12W |

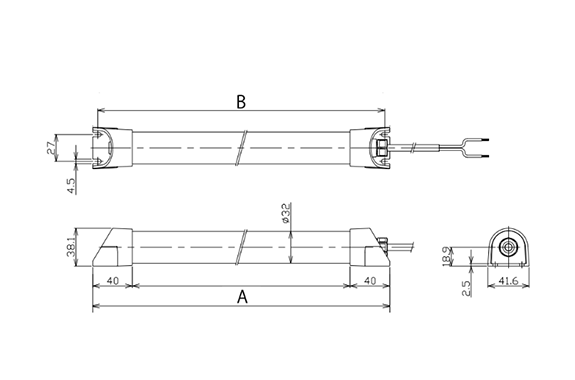

Main dimensions
| Model/Dimensions (mm) | A | B |
|---|---|---|
| NLT4-10 | 300 | 290 |
| NLT4-20 | 520 | 510 |
| NLT4-30 | 735 | 725 |
| NLT4-40 | 950 | 940 |
Model selection method
| Model | Size | Power supply | Cover | Option |
|---|---|---|---|---|
| NLT4 | 10 |
|
| Mounting magnet (ND-P03) L-shaped mounting bracket (ND-P07) Hanging bracket (ND-P09) 2m cable with plug (2M+P) *Compatible power supply is AC 100V only. *When selecting, please specify (2M+P) at the end of the model name. Silicon Cable |
