Nippon Ball Valve 103F-Y90 Ball Valves
Manufacturer: Nippon Ball Valve Co., Ltd.
Model: 103F-Y90
Features
This valve type has a left/right divergence of 45º from the straight flow.
It also forms the core of our 103F-BSR, BSL, BY-type valves, which have a short pipe attached.
Examples of use: Limestone, iron oxide, etc.

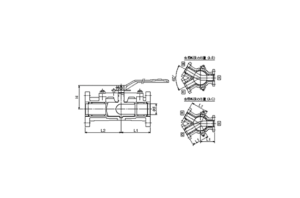

Dimensional drawings
| Nominal diameter | φd | L | H | |
| 10K、CL150 | ||||
| 15A | 1/2B | 15 | ||
| 20A | 3/4B | 20 | ||
| 25A | 1B | 25 | 90 | 105 |
| 40A | 1·1/2B | 38 | 100 | 125 |
| 50A | 2B | 48 | 105 | 132 |
| 65A | 2·1/2B | 65 | 120 | 152 |
| 80A | 3B | 73 | 130 | 162 |
| 100A | 4B | 90 | 160 | 200 |
| 125A | 5B | 110 | 180 | 230 |
| 150A | 6B | 130 | 200 | 276 |
| 200A | 8B | 170 | 250 | 350 |
| 250A | 10B | 225 | 310 | 400 |
| 300A | 12B | 260 | 345 | 450 |
※Please contact NBV for other rating.
Usage range
Y-type Divergent Ball Valves (Straight → Left/right divergence of 45°)
Body materials: cast iron, coal-steel cast steel, stainless cast iron.
Manufacturing range
20A-400A
Please contact us about the manufacturing range as it varies by rating.
Usage result
Resin pellet conveying equipment, powder conveying equipment, biomass equipment, etc.
