Nippon Ball Valve Co., Ltd.
Nippon Ball Valve A103F-H Ball Valves
Manufacturer: Nippon Ball Valve Co., Ltd.
Model: A103F-H
Features
This valve can be used to switch a fluid’s flow path, and both T-port and L-port circuits can be selected.
Can be used with high temperature gases, etc. above 200 ºC.
Examples of use: High temperature gases, exhaust fumes, powders, etc.

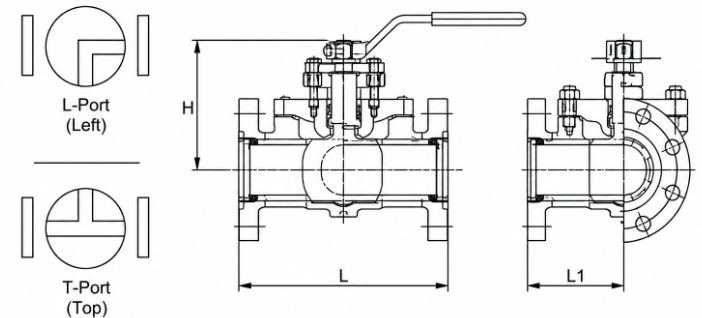

Dimensional drawings
| Nominal diameter | φd | L | H | |
| 10K | CL150 | 10K、 CL150 | 10K、 CL150 | |
| 15A | 15 | 8 | 140 | 85 |
| 20A | 20 | 15 | 150 | 95 |
| 25A | 25 | 15 | 180 | 105 |
| 40A | 33 | 200 | 125 | |
| 50A | 43 | 220 | 132 | |
| 65A | 60 | 260 | 152 | |
| 80A | 70 | 290 | 162 | |
| 100A | 90 | 360 | 200 | |
| 125A | 110 | 410 | 250/230 | |
| 150A | 130 | 500 | 300 | |
| 200A | 170 | 620 | 350 | |
Please contact us separately for manufacturing ranges outside the above scope.
Usage range
Heat-Resistant Ball Valves for switching three ways
Body materials: coal-steel cast steel, stainless cast steel etc.
Operating temperature: below 400°C
Manufacturing range
15A-400A
Please contact us about the manufacturing range as it varies by rating.
Usage result
High-temperature gas equipment, exhaust fume equipment, high-temperature powder equipment, etc.
