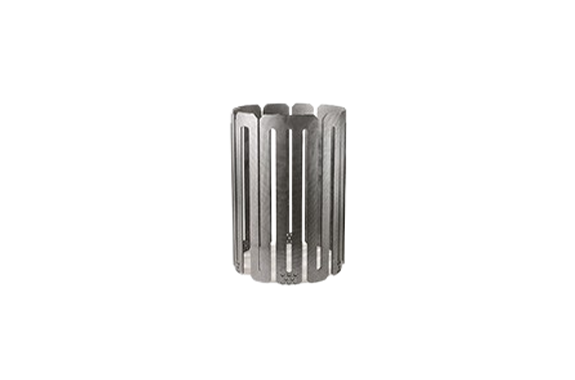

Nippon Carbon CCM Series C/C Composite

Manufacturer: Nippon Carbon Co., Ltd.
Model: CCM Series

Features

CCM^® is a lightweight carbon material that has high strength and elasticity, reinforced with carbon fibers.
Since both the reinforced fibers and the matrix are composed of carbon graphite, CCM maintains carbon’s superior properties.

Specifications

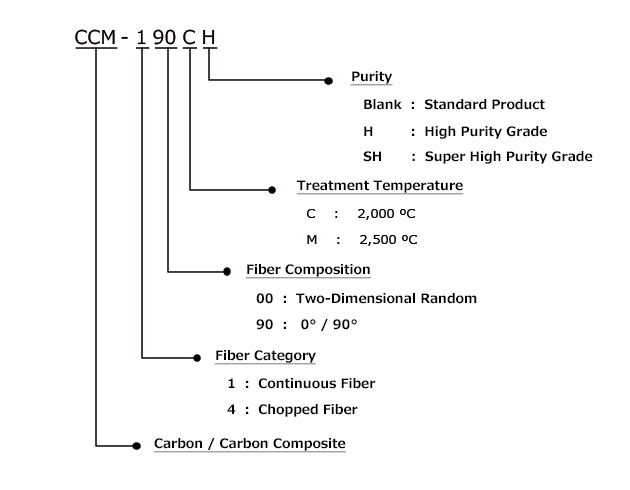

Item Number		CCM™-190C	CCM™-400C
Structure	Surface
Structure	Cross-Section Surface
Characteristics		Lightweight High Bending Strength High Heat Resistance Thermal shock Resistance High Conductivity Excellent Chemical Corrosion Resistance
Characteristics		High Tensile Strength High Elasticity	In-plane Isotropy High Shear Strength Precise Machinability

Characteristics	Unit	CCM-190C	CCM-400C
Reinforced Fibers	‐	Continuous Fiber	Chopped Fiber
Fiber Orientation	‐	0º / 90º	Two-Dimensional Random
Bulk density	g/cm³	1.60	1.45
Bending Strength	MPa	160	140
Bending Coefficient of Elasticity	GPa	65	35
Tensile Strength	MPa	260	95
Tensile Coefficient of Elasticity	GPa	80	45
Compressive Strength	MPa	90	90
Interlayer Shear Strength^*1	MPa	6	12
Shore Hardness	‐	70	80
Electrical Resistivity^*2	×10^-6Ω･cm	2200	2300
Thermal Expansion Coefficient^*3	×10-^-6K	(//)0.2	(//)0.4
Thermal Expansion Coefficient^*3	×10-^-6K	(⊥)5.7	(⊥)9.0
Thermal Conductivity^*2	W/(m･K)	(//)27	(//)23
Thermal Conductivity^*2	W/(m･K)	(⊥)4	(⊥)17
Shape		Plate Tube Bolt & Nut Abnormal Profile Product Crucible Angle, Channel	Plate Bolt & Nut

*1 Uneven Notch Test Piece Compressing Method
*2 Measured at the chamber temperature
*3 Average thermal expansion coefficient measured between chamber temperatures up to 800 degrees Celsius.
(//) Parallel to the fiber
(⊥) Vertical to the fiber
