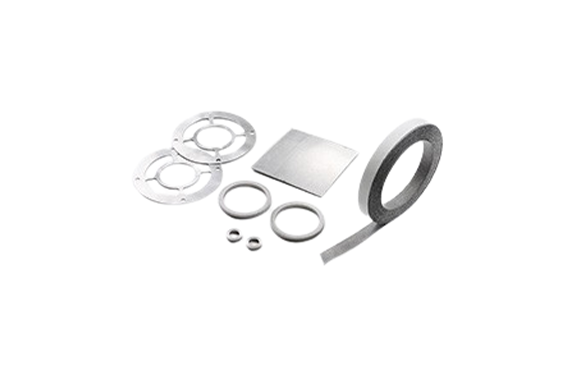

Nippon Carbon NICAFILM® Flexible Graphite Sheet
Manufacturer: Nippon Carbon Co., Ltd.
Specifications
| Article | Unit | FL-300 | Remarks |
|---|---|---|---|
| Tensile Strength | MPa | 2.9 | 0.75 t, following BD1.0JIS-R3453 |
| Compressive Strength | MPa | 117.6 | |
| Thermal Conductivity(//) | W/(m･K) | 139.6 | |
| Thermal Conductivity(⊥) | W/(m･K) | 4.7 | |
| Electrical Resistibility (//) | μΩ-cm | 700 | |
| Electrical Resistibility (⊥) | μΩ-cm | 30,000 | |
| Coefficient of Thermal Expansion (//) | ×10-6/K | 3 | |
| Coefficient of Thermal Expansion (⊥) | ×10-4/K | 1 | |
| Oxidation Onset Temperature | ℃ | 450 | |
| Ash Percentage | wt% | Lower Than 3 | Following JIS-M8812 |
| Specific Heat | J/(g･K) | 1.3 | |
| Emissivity | – | 0.7 |
