Nippon Gear Co.

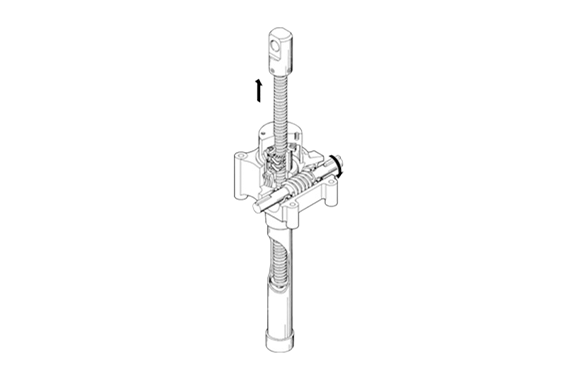

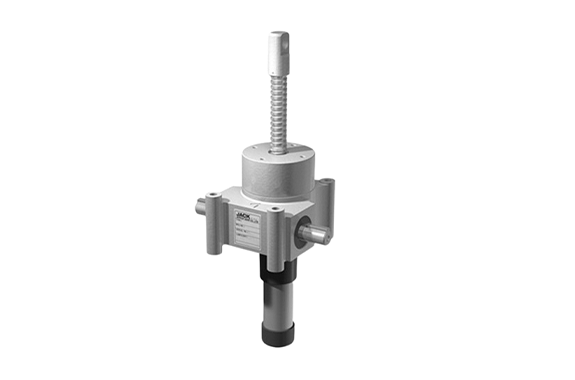

Nippon Gear Ball Small Jack
Manufacturer: Nippon Gear Co., Ltd.
Features
- Basic capacity: 4 kN
- The lightest weight possible is achieved, while securing sufficient strength.
- The housing is compact and designed to allow either its upper or lower surface to be attached to your device.
- High-efficiency and high-speed operation is enabled by using rolling friction.
- We can also manufacture a jack with an anti-rotation mechanism that prevents its screw shaft from co-rotating.
- Wide-ranging options are available, including dustproof bellows to protect the screw shaft, limit switch for control, and RC encoder.
- The jack does not have a self-locking function. It is required to install a brake.
Specifications
| Series/Size Code | RSB | |
|---|---|---|
| Capacity | 4kN | |
| Lifting screw diameter | 16mm | |
| Lifting screw lead | 5mm | |
| Worm gear ratio | H | 5 |
| L | 24 | |
| Effciency | H | 0.64 |
| L | 0.36 | |
| Maximum allowable power per jack | 0.63kW | |
| Input shaft torque at no load (b) | 0.15N・m | |
| Torque coefficient (a) | H | 0.25 |
| L | 0.09 | |
| Required input torque at maximum load | H | 1.15N・m |
| L | 0.52N・m | |
| Required input torque at maximum load | H | 1N・m |
| L | 0.15N・m | |
| Worm rotation per 10mm of stroke | H | 10 |
| L | 48 | |
| Speed coefficient (c) (screw lead per rotation of input shaft) | H | 1.0mm |
| L | 0.21mm | |
| Maximum allowable input rotation speed | 2000min-1 | |
| Anti-rotation key torque at maximum load | 1.5N・m | |
| Input shaft allowable overhang load | 300N | |
| Amount of filled grease | Maintenance-Free | |
| Operating temperature range | −15〜80℃ | |
