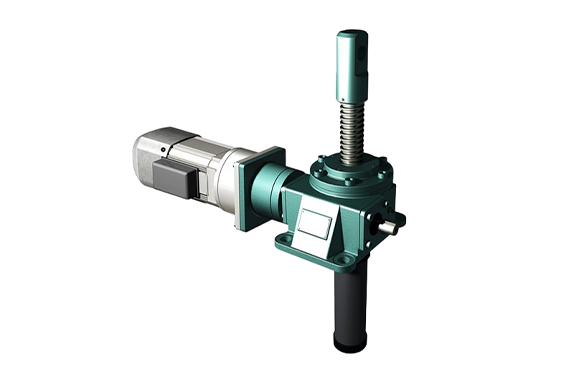

Nippon Gear Geared Motor Jack
Manufacturer: Nippon Gear Co., Ltd.
Features
- Can be used immediately after installation as it comes with a geared motor.
- We have selected a small, compact, and low-noise geared motor.
- Has a high inverter drive motor characteristic.
- Provides a wide range of torques as it is combined with our original inverter.
- 1/3 standardized against reduction gear ratio of geared motors.
Specifications
| Output | 0.1〜3.7kw |
|---|---|
| Number of poles | 4P |
| Number of phases | Three-phase |
| Voltage | 200/200/220V |
| Frequency | 50/6060Hz |
| Gear ratio | 1/3、1/5、1/10 |
| Rating | Continuous |
| Heat resistance class | E（0.1〜0.4kW）、B（0.75〜3.7kW） |
| Starting method | Direct start |
| casing construction (cooling method) | Totally enclosed, fan-cooled (except three-phase 0.1 kW, which is totally enclosed, self-cooled model) |
| Protective construction | Indoor type (corresponding to IP44) |
| Mounting method | Flange mounting (concentric) |
| Mounting direction | Any direction |
| Installation site | Indoor (not exposed to corrosive gas, oil mist, flammable gas, and dust) |
| Ambient temperature | -15 ~ 40℃ (no freezing) |
| Ambient humidity | No more than 90% |
| Altitude | No more than 1000 m above sea level |
| Vibration | Normally: no more than 4.9 m/s2, Instantaneously: no more than 9.8 m/s2 (compliant with JIS C 0911 |
| Braking method | Direct current (DC) spring brake |
| Applicable standard | JEC、JEM |
| Lubrication method | Grease lubrication (filled with Pyronoc Universal No. 000) |
| Paint color | Silver (corresponding to Munsell N6.0) |
| Accessories | Shaft end key (JIS B 1301-1976) |
