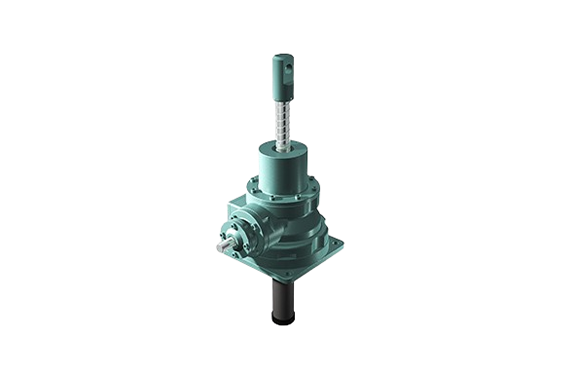

Nippon Gear High Speed Jack
Manufacturer: Nippon Gear Co., Ltd.
Features
- Capacity: 5kN~50kN
- Lifting screw speed: Max 20m/min)
- Compared to the Ball Screw jack it is 5 times faster.
- Duty cycle: Max 70% ED
- Has 5 times duty cycle compared to the conventional product
- Input rotation speed: Max 2000~3000min-1
- Can be used for wide-ranging operations by utilizing a servomotor.
- This type of jack does not have a self-locking function, so it is required to install a brake.
Specifications
| Series/Size Code | JSH | J0H | J1H | J2H |
|---|---|---|---|---|
| Capacity | 5kN | 10kN | 25kN | 50kN |
| Lifting screw diameter | 20mm | 25mm | 36mm | 40mm |
| Lifting screw lead | 20mm | 25mm | 36mm | 40mm |
| Gear Ratio | 3 | 3 | 3.64 | 4 |
| Effciency | 0.81 | 0.81 | 0.81 | 0.81 |
| Maximum allowable power | 1.3kW | 1.6kW | 2.5kW | 3.3kW |
| Torque coefficient (a) | 1.45 | 1.81 | 2.18 | 2.18 |
| Inertia moment （kg·m2） | 0.0009 | 0.0025 | 0.0093 | 0.0189 |
| Standard Capacity torque *1 | 7.3N・m | 18N・m | 55N・m | 109N・m |
| Allowable acceleration torque *1 | 8.0N・m | 20N・m | 60N・m | 120N・m |
| Required input torque at maximum load | 6N・m | 15N・m | 43N・m | 86N・m |
| Speed coefficient (c) (screw lead per rotation of input shaft) | 6.67mm | 8.33mm | 10mm | 10mm |
| Maximum allowable input rotation speed | 3000min-1 | 2400min-1 | 2000min-1 | 2000min-1 |
| Anti-rotation key torque at maximum load | 2.5N・m | 6.3N・m | 22.5N・m | 50N・m |
| Input shaft allowable overhang load | 120N | 150N | 400N | 800N |
| Amount of filled grease | 20g | 25g | 45g | 80g |
| Amount of oil | 0.1ℓ | 0.3ℓ | 0.5ℓ | 1.8ℓ |
| Approximate weight (at stroke of 100) | 15kg | 20kg | 45kg | 95kg |
| Operating temperature range | -10〜50℃ | -10〜50℃ | -10〜50℃ | -10〜50℃ |
*1: Calculated by deducting “input shaft torque at no load” from “required input shaft torque” (as per the formula shown in Step 2).
