Manufacturer: Nippon Gear Co., Ltd.
Model: NT Series

Features

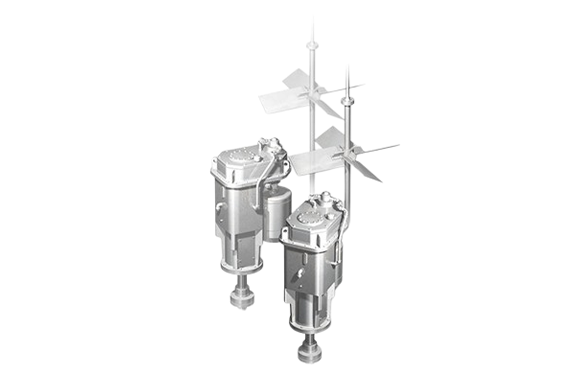

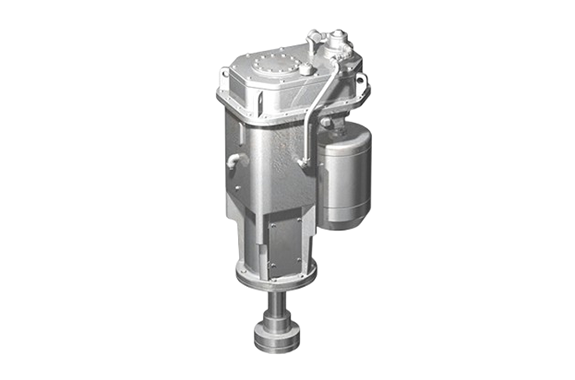

• Reducers dedicated for mixers use our own high-precision gear
• The reducers for NT mixers are specially designed for mixers that use our own high-precision gear and achieve long life and low noise.
  Selecting double and triple reduction gears allows the selection of amazing reduction gear ratios.
• Compatible with all types of seals
• The mixing shaft seal is compatible with a wide variety of methods, such as gland, single dry mechanical, and double mechanical seals.
  The gas and liquid contact parts can have a variety of different types of linings. Please feel free to contact us because we have a lot of experience in handling special materials.
• Diverse mounting positions
• The reducers in this series can be used for a wide variety of applications, such as top entry, which is the typical mounting orientation of the mixer, as well as bottom entry and angled mounting.
• Compact design for reducing the required space
• Using a reducer with a special motor position enabled a configuration that is smaller than that of other reducers. The products in this series are optimum for conditions with limited ceiling height.
  In addition, placing the motor, which is the source of vibration, in a low position achieved vibration reduction.
• Applicable to a wide variety of capacities
• The standard lineups in this series are applicable to various motor capacities from 1.5 kW to 200 kW. We can offer models compatible with motors with larger capacities at the customer’s request.

Specifications

■Approx. weight does not include weghts of motor and shaft seal.

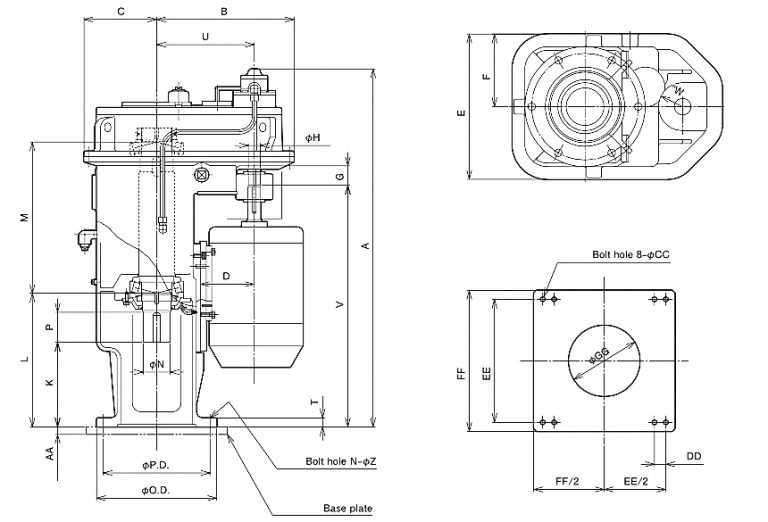

■As we may change dimensions, please check pur dimensional drawing for confirmation.
